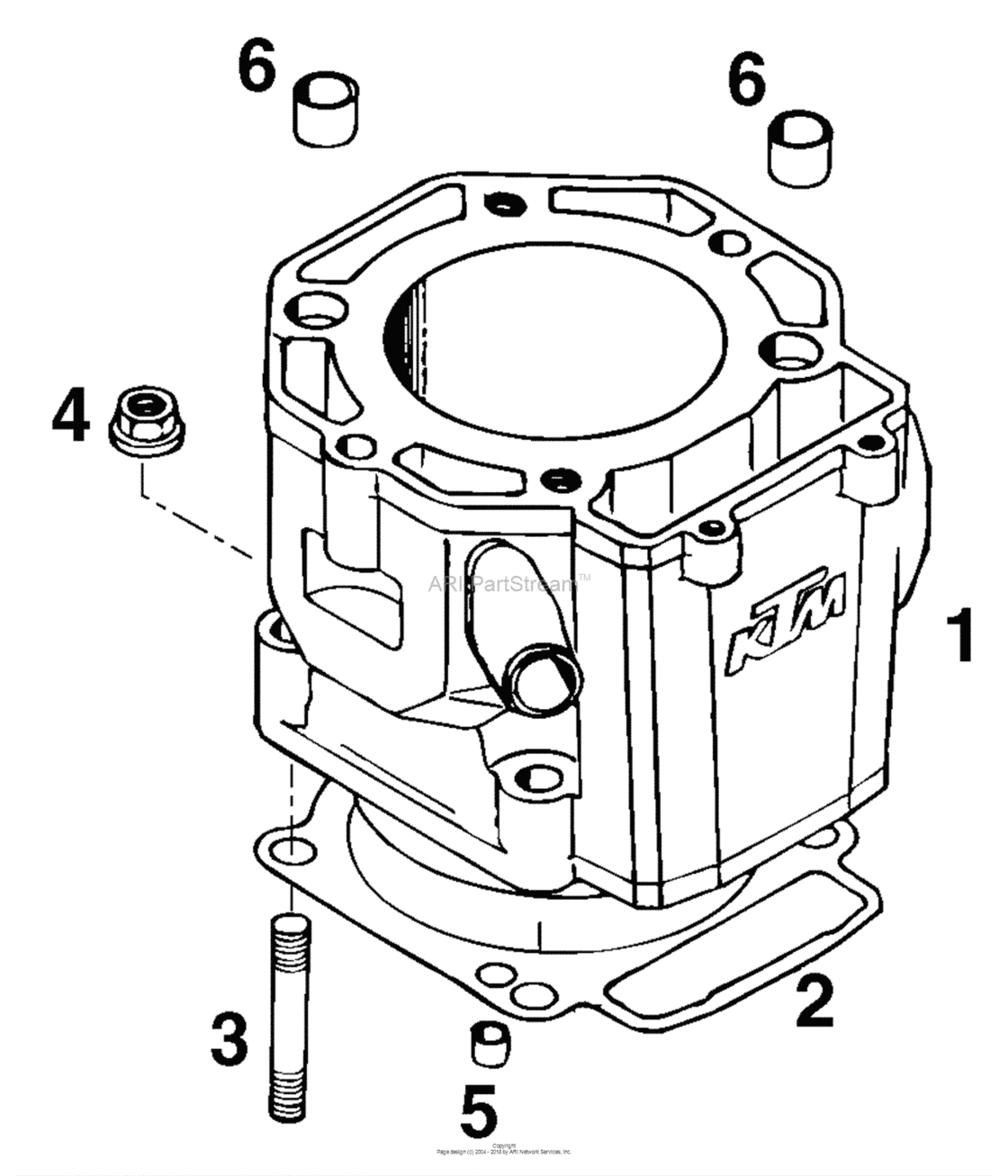

Cylinder Diagram KTM 540 540 SXC
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 540
- Model
- 540 SXC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57630005100 Cylinder 89mm black 400'97WS=8 |
57630005100 |
US $940.24 |
||
|
1
|
1
58330005200
Cylinder 95Mm Black 540'98
WS=8 |
58330005200 |
— | ||
|
2
|
2
58030030000 Cyl. base gasket 0,5mm greenWS=8 |
58030030000 |
US $30.28 |
||
|
3
|
3
0835100456 Stud din0835-m10x45WS=8 |
0835100456 |
US $3.77 |
||
|
4
|
4
0331100003 Collar nut din6923-m10 ws=15WS=8 |
0331100003 |
US $2.02 |
||
|
5
|
5
49030090000 Dowel 9,8 x 7 x 10WS=8 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
5
|
5
49030090100 Dowel 9,8 X7X10WS=8 |
49030090100 |
US $2.60 |
||
|
6
|
6
58330023000 Dowel 17 x 14 x 9,5WS=8 |
58330023000 |
US $4.61 |
||
