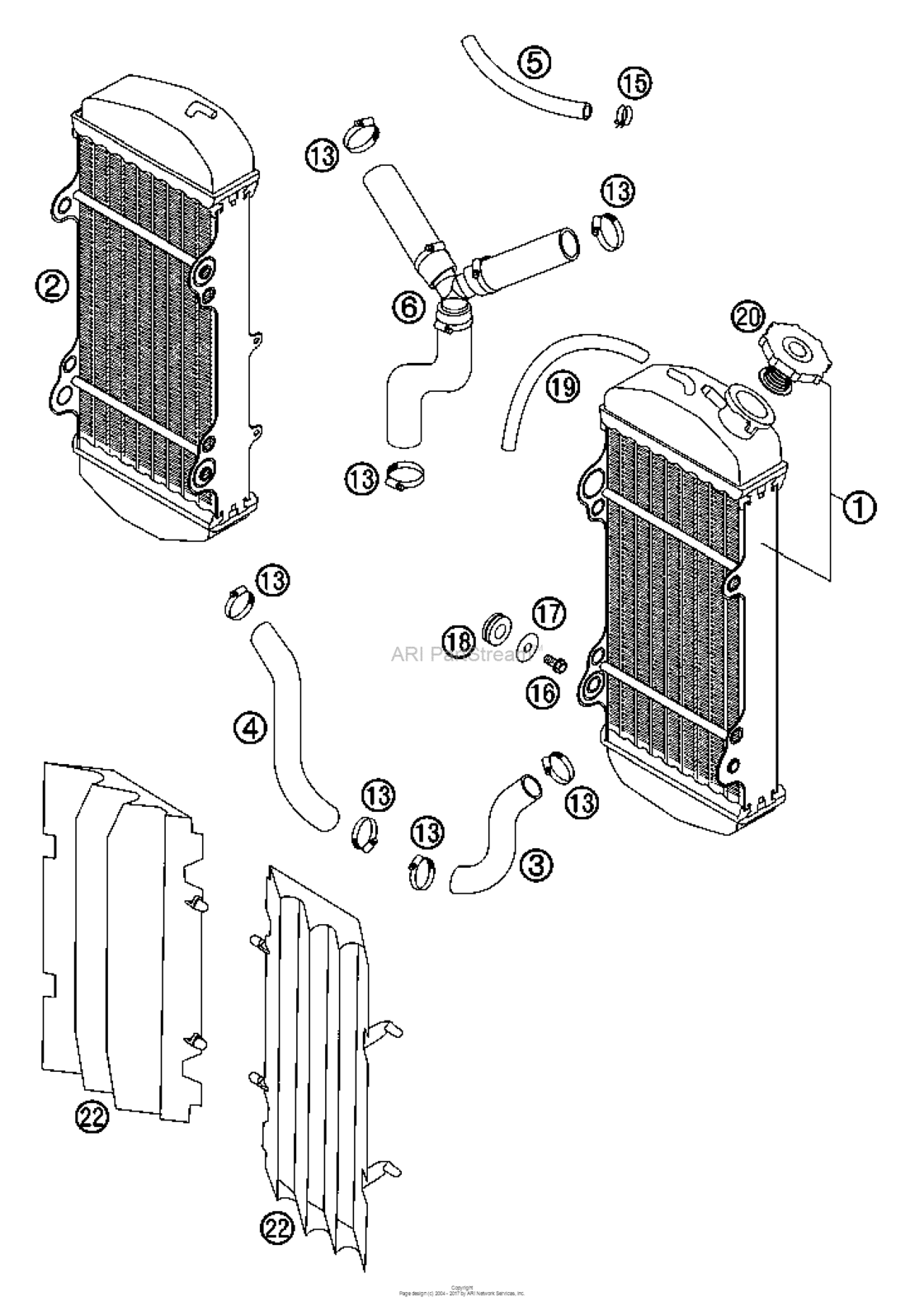

Cooling System Diagram KTM 560 SMR
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 560
- Model
- 560 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59035007300 Radiator l/s 45.407 03(As Required) |
59035007300 |
US $288.97 |
||
|
2
|
2
59035008300
Radiator r/s 45.408 03
(As Required) |
59035008300 |
— | ||
|
3
|
3
59035024100 Radiator hose l/s rad.-cyl. 03(As Required) |
59035024100 |
US $6.83 |
||
|
4
|
4
59035124100 Radiator hose r/s rad.-cyl. 03(As Required) |
59035124100 |
US $9.06 |
||
|
5
|
5
54435024001 Hose Id 7,5 Per Meter(As Required) |
54435024001 |
US $27.40 |
||
|
6
|
6
59035125000 Radiator hose cyl.head-rad. 03(As Required) |
59035125000 |
US $33.59 |
||
|
13
|
13
10001020000 Hose Clamp 18-29(As Required) |
10001020000 |
US $4.71 |
||
|
15
|
15
50231005000 Hose clamp ydnac 10119 11mm(As Required) |
50231005000 |
US $1.68 |
||
|
16
|
16
0015060123
Hh Collar Screw M 6X12 Ws=8
(As Required) |
0015060123 |
— | ||
| replacement | |||||
|
16
|
16
0025060126 Hh collar screw m6x12 tx30(As Required) |
0025060126 |
US $3.96 |
||
|
17
|
17
0021060003 Washer Din9021-A 6,4(As Required) |
0021060003 |
US $3.26 |
||
|
18
|
18
41001052000 Rubber Sleeve D=12Mm(As Required) |
41001052000 |
US $5.46 |
||
|
19
|
19
55007016001 Pvc-hose 7x10 per meter(As Required) |
55007016001 |
US $5.98 |
||
|
20
|
20
59035009000 Radiat.cap 20,3psi (1,4bar) 03(As Required) |
59035009000 |
US $16.35 |
||
|
22
|
22
5903504000004 Radiator protection orange 03(As Required) |
5903504000004 |
US $6.78 |
||
|
22
|
22
5903504000030 Radiator protection black 06(As Required) |
5903504000030 |
US $7.46 |
||
