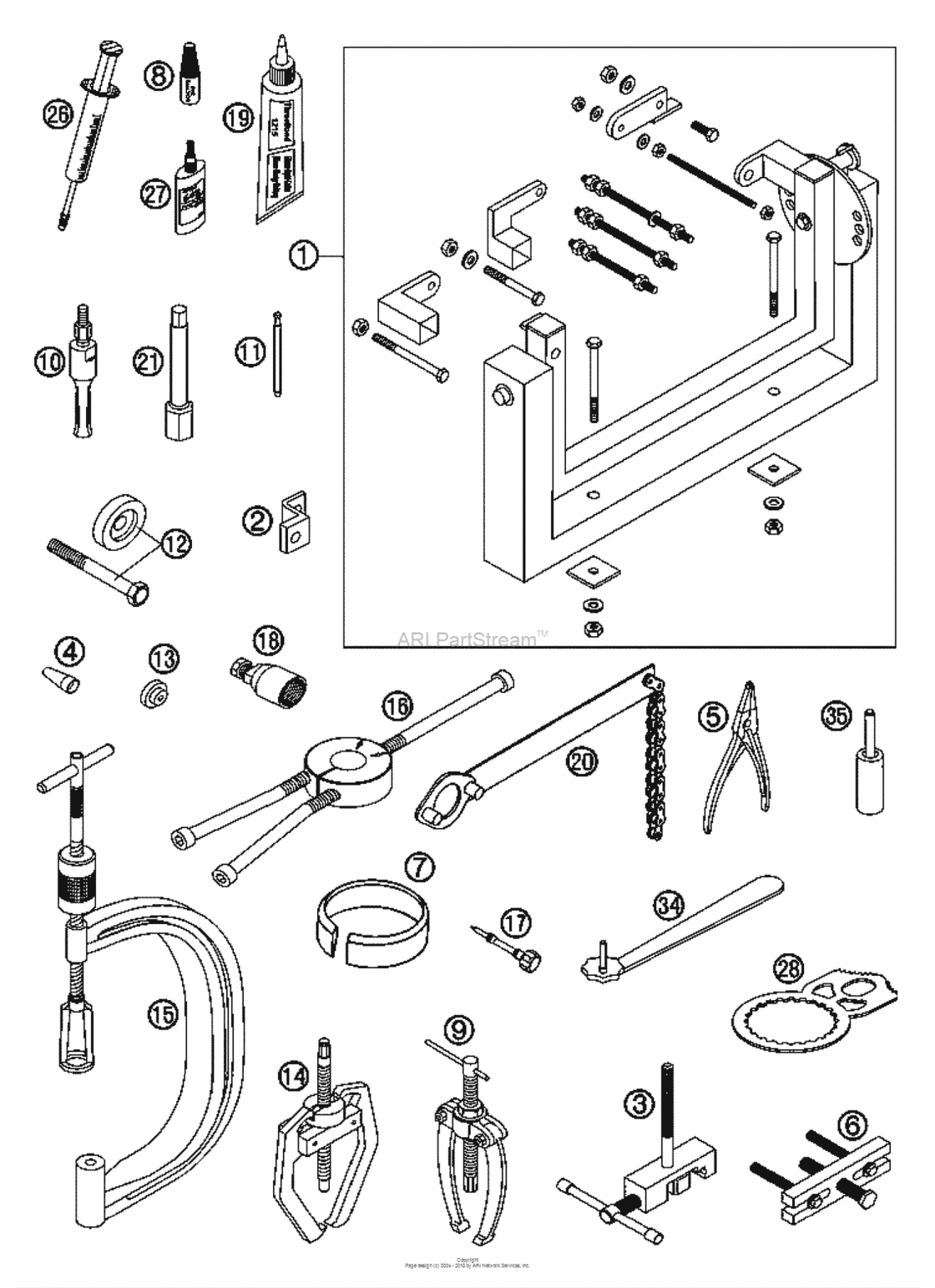

Special Tools Diagram KTM 560 SMR
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 560
- Model
- 560 SMR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56012001044 Assy Support With Engineholder(As Required) |
56012001044 |
US $1,830.65 |
||
|
2
|
2
59029002000 Engine holder for racing 2000(As Required) |
59029002000 |
US $38.69 |
||
|
3
|
3
59029020000
Rivetting tool timing chain
(As Required) |
59029020000 |
— | ||
|
4
|
4
59029005010 Mounting sleeve seal ring(As Required) |
59029005010 |
US $16.39 |
||
|
5
|
5
51012011000 Special circlip plier(As Required) |
51012011000 |
US $154.77 |
||
|
6
|
6
59029021044 Extractor Prim. Gear Cpl(As Required) |
59029021044 |
US $14.37 |
||
|
7
|
7
58012015089 Piston ring compressor d=89mm(As Required) |
58012015089 |
US $68.32 |
||
|
7
|
7
58012015095 Piston ring compressor d=95mm(As Required) |
58012015095 |
US $115.60 |
||
|
7
|
7
59829015075
Piston r. compressor d=75mm 02
(As Required) |
59829015075 |
— | ||
|
8
|
8
6899785 Loctite 243 Blue 6Ccm(As Required) |
6899785 |
US $40.61 |
||
|
9
|
9
15112017000 Bushing extractor(As Required) |
15112017000 |
US $144.77 |
||
|
10
|
10
15112018000 Intern.bear.puller 12-16 mm(As Required) |
15112018000 |
US $179.89 |
||
|
10
|
10
15112018100 Intern.bear.puller 18-23 mm(As Required) |
15112018100 |
US $227.53 |
||
|
10
|
10
15112018200 Intern.bear.puller 5-7 mm(As Required) |
15112018200 |
US $179.89 |
||
|
11
|
11
59029026006 Limit plug gauge f.valve guide(As Required) |
59029026006 |
US $24.43 |
||
|
12
|
12
59029035000 Mounting ring for inner clutch(As Required) |
59029035000 |
US $16.86 |
||
|
13
|
13
59029036000 Protection cover f.main shaft(As Required) |
59029036000 |
US $15.83 |
||
|
14
|
14
59029033000 Extractor for timing gear(As Required) |
59029033000 |
US $351.07 |
||
|
15
|
15
59029019000 Valve spring lever(As Required) |
59029019000 |
US $374.58 |
||
|
16
|
16
58429037037 Mounting tool inner ring nj206(As Required) |
58429037037 |
US $130.32 |
||
|
17
|
17
59031017200
Superseded By 59031017300
(As Required) |
59031017200 |
— | ||
|
18
|
18
58012009000 Flywheel Extractor(As Required) |
58012009000 |
US $41.55 |
||
|
19
|
19
309098 Silicon gasket three-bond(As Required) |
309098 |
US $208.86 |
||
| replacement | |||||
|
19
|
19
58429059200 Loctite 5910 50Ml(As Required) |
58429059200 |
US $40.61 |
||
|
20
|
20
51012012000 Holding spanner for sprocket(As Required) |
51012012000 |
US $79.95 |
||
|
21
|
21
59029072000
Spark Plug Key 250 Sx-F
(As Required) |
59029072000 |
— | ||
| replacement | |||||
|
21
|
21
77029072000 Spark Plug Key 250 Sx-F(As Required) |
77029072000 |
US $37.38 |
||
|
26
|
26
50329050000 Vent Injektion Hydr. Clutch(As Required) |
50329050000 |
US $50.78 |
||
|
27
|
27
58429059000
Loctite 648 Green 20Ml
(As Required) |
58429059000 |
— | ||
|
28
|
28
59029003100 Clutch Holder Racing 2004(As Required) |
59029003100 |
US $65.91 |
||
|
34
|
34
59029034000
Wrench f.mixture control screw
(As Required) |
59029034000 |
— | ||
| replacement | |||||
|
34
|
34
77329034000 Wrench f.mixture control screw(As Required) |
77329034000 |
US $80.04 |
||
|
35
|
35
59029018000 Press punch valve guide(As Required) |
59029018000 |
US $50.42 |
||
