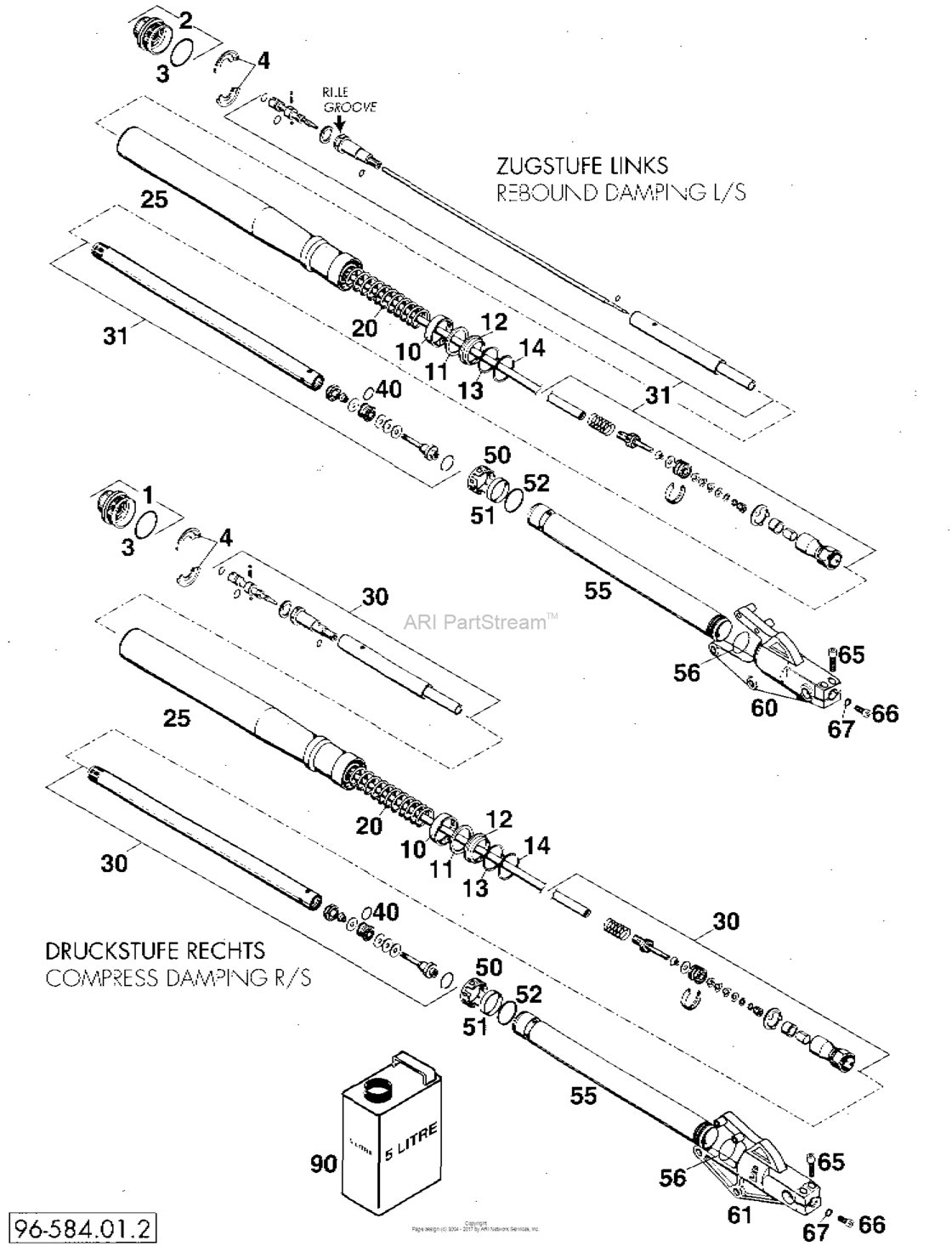

Front Fork Legs White Power Diagram KTM 620 620 Duke
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58401008000
Screw Cap Cpl. R/s
SW=8 |
58401008000 |
— | ||
|
2
|
2
58401009000
Screw Cap Cpl. L/s
SW=8 |
58401009000 |
— | ||
|
3
|
3
0770430030
O-Ring
SW=8 |
0770430030 |
— | ||
|
4
|
4
54501050000
Superseded By 4054470
SW=8 |
54501050000 |
— | ||
|
10
|
10
57501026000
Superseded By 40541075
SW=8 |
57501026000 |
— | ||
|
11
|
11
56401027000
Superseded By 4054031
SW=8 |
56401027000 |
— | ||
|
12
|
12
58001805000
Superseded By 40541034
SW=8 |
58001805000 |
— | ||
|
13
|
13
56401127000
Superseded By 4054033
SW=8 |
56401127000 |
— | ||
|
14
|
14
56401029000
Superseded By 4054034
SW=8 |
56401029000 |
— | ||
|
20
|
20
58401021000
Spring
SW=8 |
58401021000 |
— | ||
|
25
|
25
58401004000
Olfer Tube
SW=8 |
58401004000 |
— | ||
|
30
|
30
58401010000
Cartridge Cpl. R/s
SW=8 |
58401010000 |
— | ||
|
31
|
31
58401011000
Cartridge Cpl. L/s
SW=8 |
58401011000 |
— | ||
|
40
|
40
0770020160
0-Ring
SW=8 |
0770020160 |
— | ||
|
50
|
50
54501077000
Superseded By 4054468
SW=8 |
54501077000 |
— | ||
|
51
|
51
54501045000
Superseded By 4054433
SW=8 |
54501045000 |
— | ||
|
52
|
52
54501046000
Superseded By 4054490
SW=8 |
54501046000 |
— | ||
|
55
|
55
58301203000
Inner Tube L=520Mm Duke'94
DUKE'94 |
58301203000 |
— | ||
|
56
|
56
0770380020 O-Ring 38,00X2,00 Nbr 70 ShDUKE'94 |
0770380020 |
US $2.52 |
||
|
60
|
60
58401006000
Fork Leg Axle Passage L/s
96 |
58401006000 |
— | ||
|
61
|
61
58401007000
Fork Leg Axle Passage R/s
96 |
58401007000 |
— | ||
|
65
|
65
0912080303 Ah Screw Din0912-M 8X3096 |
0912080303 |
US $1.50 |
||
|
66
|
66
0984080203
Ah Screw Din7984-M 8X20
96 |
0984080203 |
— | ||
|
67
|
67
54501081000
Superseded By 4681360
96 |
54501081000 |
— | ||
|
90
|
90
06007
Fork Oil Sae5 5 Liter
96 |
06007 |
— |
