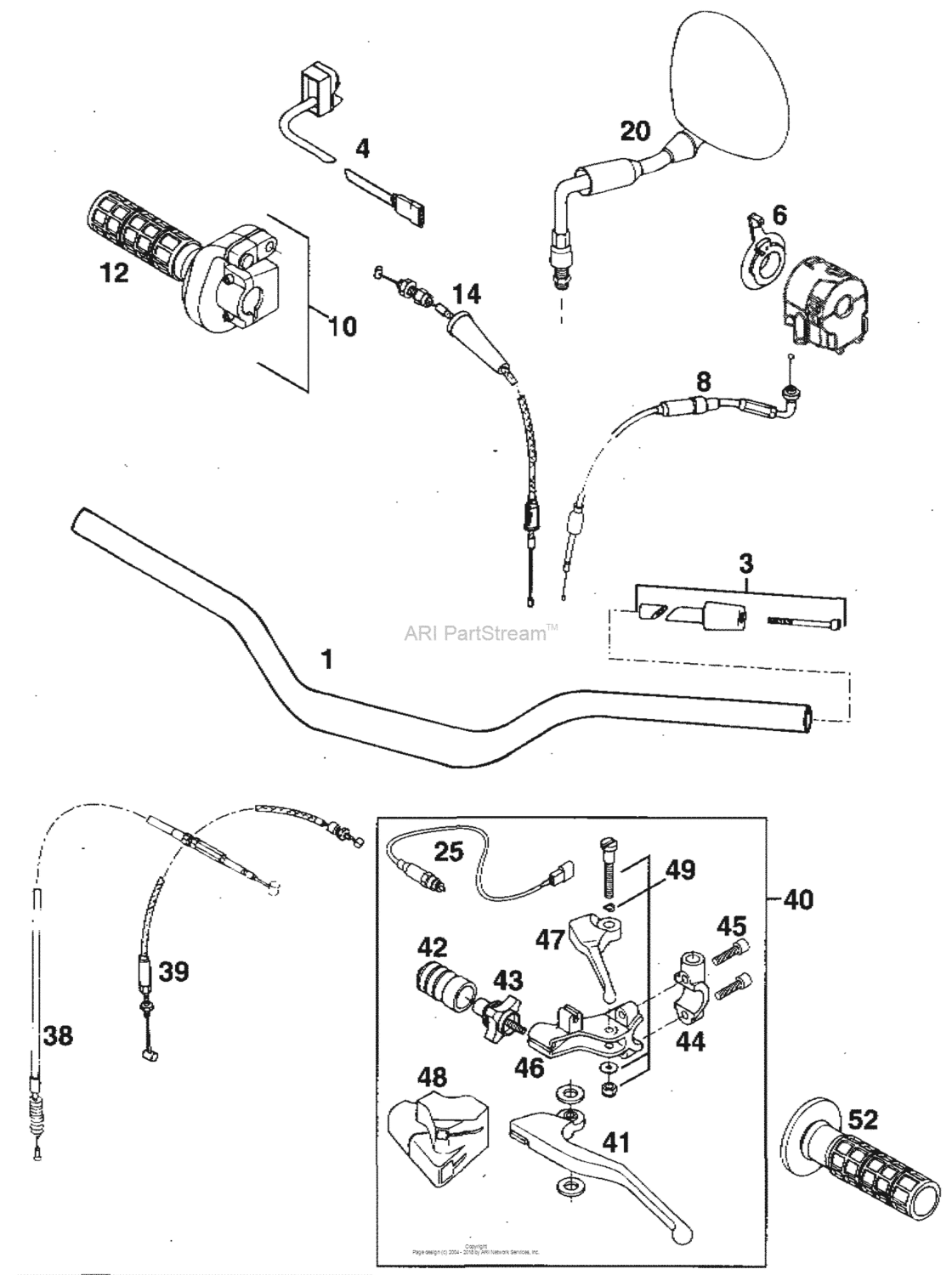

Handlebar, Controls Diagram KTM 620 620 Duke
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58312140100
Rear mirror r/s '95
95 |
58312140100 |
— | ||
|
1
|
1
58302001000 Handlebar94 |
58302001000 |
US $166.41 |
||
| replacement | |||||
|
1
|
1
58302001500
Alu-Handlebar D=28Mm '97
94 |
58302001500 |
— | ||
|
3
|
3
58302004044 Vibrations absorber cpl. '9494 |
58302004044 |
US $49.06 |
||
|
4
|
4
58411074000 Start-stop switch94 |
58411074000 |
US $40.29 |
||
|
6
|
6
58302050100 Choke lever domino '9494 |
58302050100 |
US $9.04 |
||
|
8
|
8
58302095100 Choke cable lc4 '9494 |
58302095100 |
US $41.38 |
||
|
10
|
10
58302010000 Throttle Grip Cpl.domino '9393 |
58302010000 |
US $118.37 |
||
|
12
|
12
58302003000
Gripp Set Full Waffle
93 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
14
|
14
58302091100 Throttle cable domino/dellorto94 |
58302091100 |
US $29.16 |
||
|
20
|
20
58312040100 Rear mirror l/s '9595 |
58312040100 |
US $71.72 |
||
|
25
|
25
58411049000 Clutch switch '9696 |
58411049000 |
US $28.61 |
||
|
38
|
38
58302090100 Clutch cable tsk duke '9496 |
58302090100 |
US $63.04 |
||
|
39
|
39
58302094000 Decompression cable lc4 '9393 |
58302094000 |
US $37.81 |
||
|
40
|
40
58402040000
Clutch lever cpl duke'96
DUKE'96 |
58402040000 |
— | ||
|
41
|
41
58302055200 Clutch lever loose "30" blackDUKE'96 |
58302055200 |
US $49.44 |
||
|
42
|
42
58302126000 Clutch lever boot '95DUKE'96 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7DUKE'96 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25DUKE'96 |
58302044000 |
US $11.41 |
||
|
45
|
45
0912060253 Ah Screw Din0912-M 6X25DUKE'96 |
0912060253 |
US $1.79 |
||
|
46
|
46
58402041000 Joint (pivot) domino '9696 |
58402041000 |
US $40.27 |
||
|
47
|
47
58302047000 Decompression lever loose96 |
58302047000 |
US $12.19 |
||
|
48
|
48
58402048000 Plastic Cover96 |
58402048000 |
US $9.83 |
||
| replacement | |||||
|
48
|
48
58302048000 Protecting cover96 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.96 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
93 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
