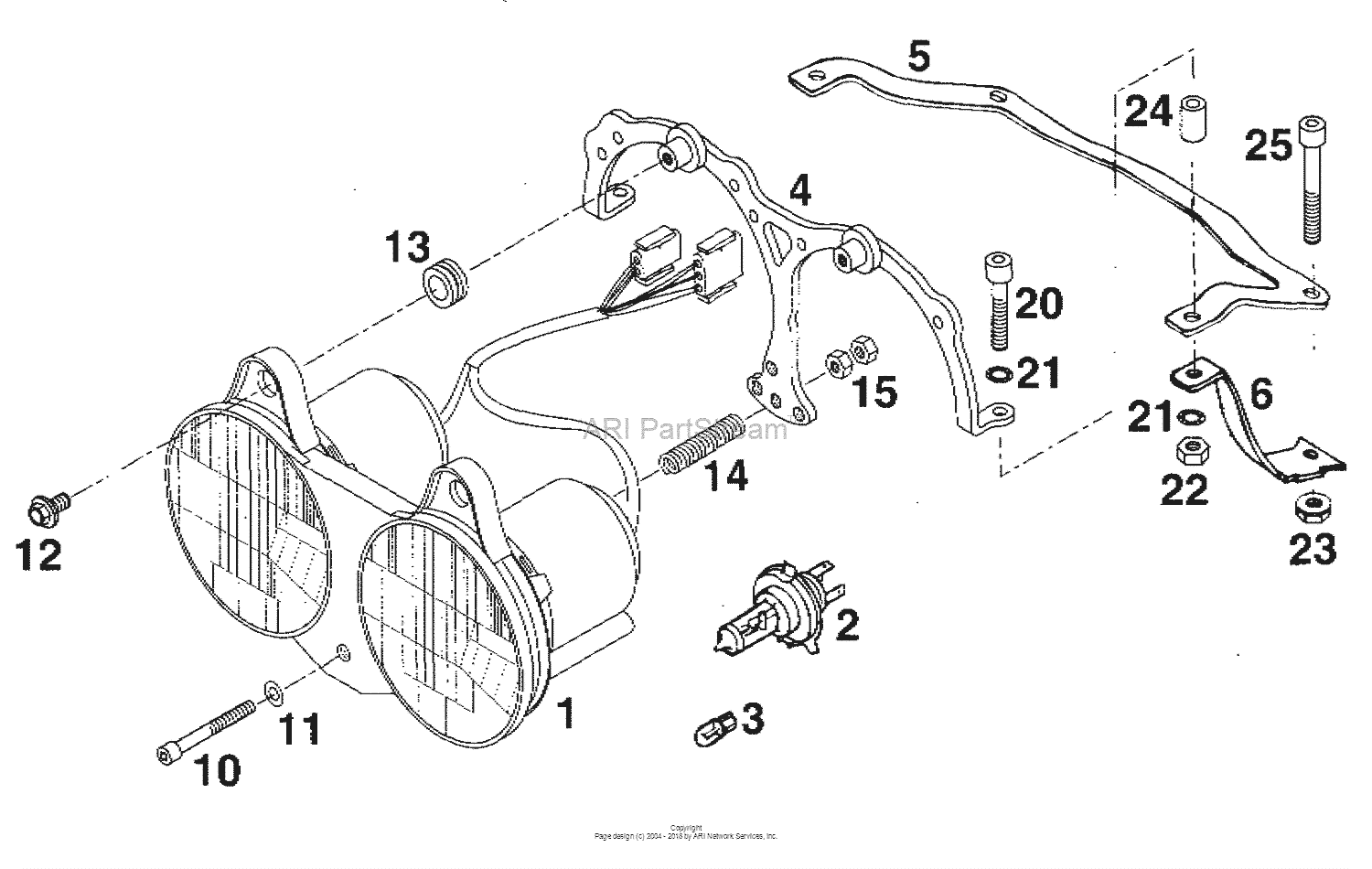

Head Light, Support Triom Diagram KTM 620 620 Duke
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58311147001
Headlight support r/s bottom
96 |
58311147001 |
— | ||
|
1
|
1
58414001000 Head light triom cpl. '9696 |
58414001000 |
US $171.12 |
||
|
2
|
2
54611038012 Bulb hs1 12v 35/35w white96 |
54611038012 |
US $33.52 |
||
|
3
|
3
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil96 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
3
|
3
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil96 |
49011435100 |
US $3.81 |
||
|
4
|
4
58311045100
Headlight Carrier Triom
96 |
58311045100 |
— | ||
|
5
|
5
58311047000
Headlight support top
96 |
58311047000 |
— | ||
|
6
|
6
58311147000
Headlight support l/s bottom
96 |
58311147000 |
— | ||
|
10
|
10
0912050453
Ah Screw Din0912-M 5X45
96 |
0912050453 |
— | ||
|
11
|
11
0125050003 Washer Din0125-A 5,396 |
0125050003 |
US $2.18 |
||
|
12
|
12
0014060103
Hh Collar Screw M6X10 Tx30
SW=8 |
0014060103 |
— | ||
| replacement | |||||
|
12
|
12
0024060106 Hh collar screw m6x10 tx30SW=8 |
0024060106 |
US $4.35 |
||
|
13
|
13
58414019000 Rubber grommet 11 x 19 x 9 '9696 |
58414019000 |
US $8.11 |
||
|
14
|
14
58414020000
Spring 9X11 X 39 Tor Triom
96 |
58414020000 |
— | ||
|
15
|
15
0934050003 Hexagon Nut Din0934-M 596 |
0934050003 |
US $2.60 |
||
|
20
|
20
0912060353 Ah Screw Din0912-M 6X3596 |
0912060353 |
US $2.09 |
||
|
21
|
21
0797060003 Tooth Lock Wash. Din6797-A 6,496 |
0797060003 |
US $0.29 |
||
|
22
|
22
0934060003 Hexagon Nut Din0934-M 696 |
0934060003 |
US $0.43 |
||
|
23
|
23
56509064000 Self Locking Nut M6 10.996 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
23
|
23
56509064100 Self Locking Nut M6 10.996 |
56509064100 |
US $1.04 |
||
|
24
|
24
54305069000 Bushing 7x12x15,496 |
54305069000 |
US $3.33 |
||
|
25
|
25
0912060503 Ah Screw Din0912-M 6X5096 |
0912060503 |
US $1.46 |
||
