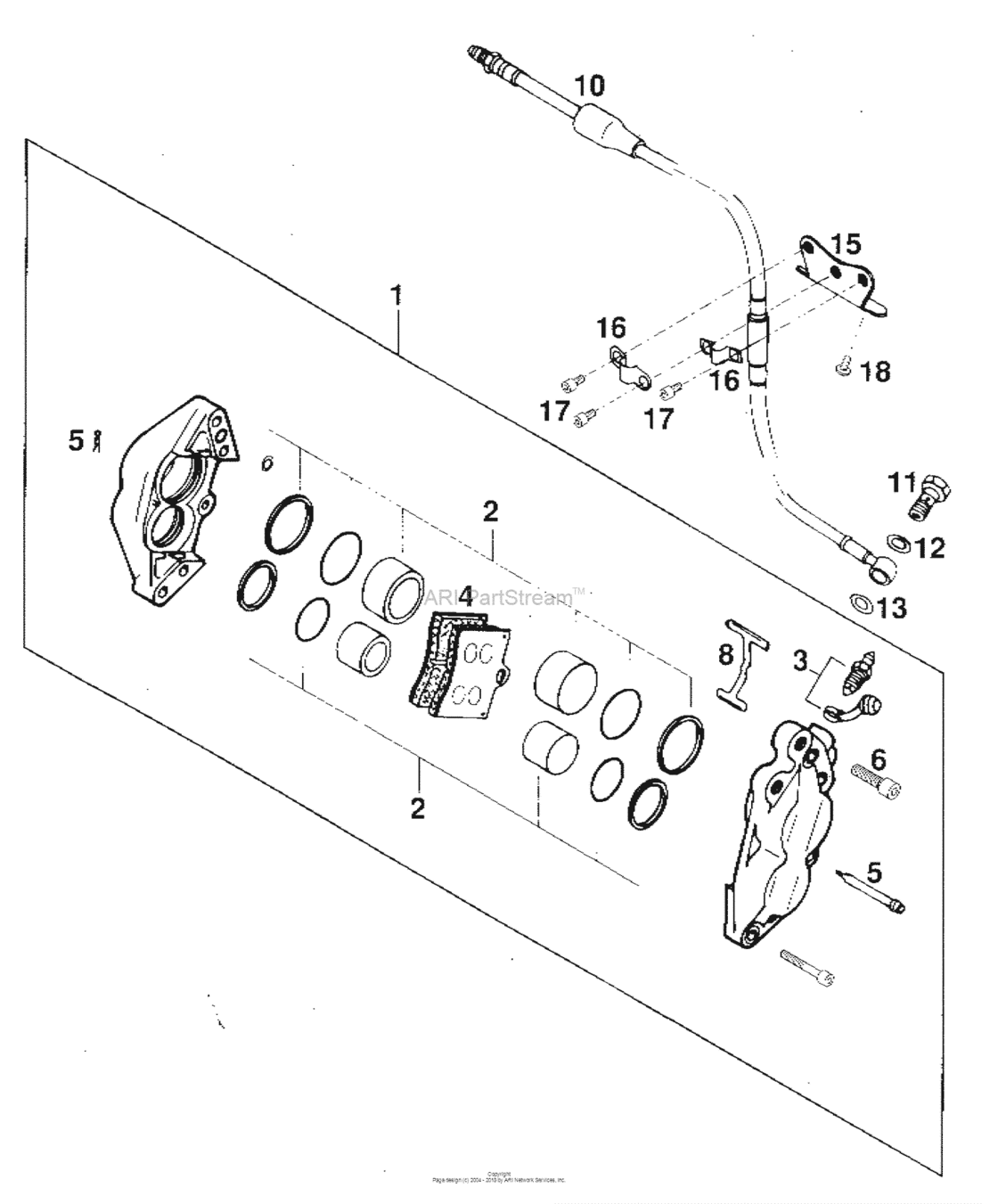

Brake Caliper Front Diagram KTM 620 620 Duke
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58313201044
Brake Caliper Front Cpl. Sm 03
90 |
58313201044 |
— | ||
| replacement | |||||
|
1
|
1
58413015344 Brake caliper front cpl. sm 0390 |
58413015344 |
US $330.67 |
||
|
2
|
2
58313205000
Repair Kit
90 |
58313205000 |
— | ||
|
3
|
3
54513214000 Bleeder Screw With Cap90 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
3
|
3
60013020000 Bleeder Screw With Cap90 |
60013020000 |
US $6.27 |
||
|
4
|
4
58313209000 Brake pad set frendo 22290 |
58313209000 |
US $78.93 |
||
|
5
|
5
58313210000
Bolt Set
90 |
58313210000 |
— | ||
|
6
|
6
0912100303 Ah screw din0912-m10x3090 |
0912100303 |
US $2.01 |
||
|
8
|
8
58313211000 Retaining spring90 |
58313211000 |
US $12.95 |
||
|
10
|
10
58313029100 Brake hose l=950mm duke'94DUKE'94 |
58313029100 |
US $64.86 |
||
|
11
|
11
50213025000 Hollow Screw M10X1X19DUKE'94 |
50213025000 |
US $5.39 |
||
|
12
|
12
42013226000 Cu-Seal Ring Din7603-10X16X1DUKE'94 |
42013226000 |
US $4.10 |
||
|
13
|
13
42013026000 Cu-seal ring din7603-10x16x1,5DUKE'94 |
42013026000 |
US $2.24 |
||
|
15
|
15
58301294000 Bracket for brake hose dukeDUKE'94 |
58301294000 |
US $12.51 |
||
|
16
|
16
56501092000 ClampDUKE'94 |
56501092000 |
US $5.25 |
||
|
17
|
17
0912060123
Ah screw din0912-m 6x12
DUKE'94 |
0912060123 |
— | ||
| replacement | |||||
|
17
|
17
0025060126 Hh collar screw m6x12 tx30DUKE'94 |
0025060126 |
US $3.96 |
||
|
18
|
18
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
18
|
18
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
