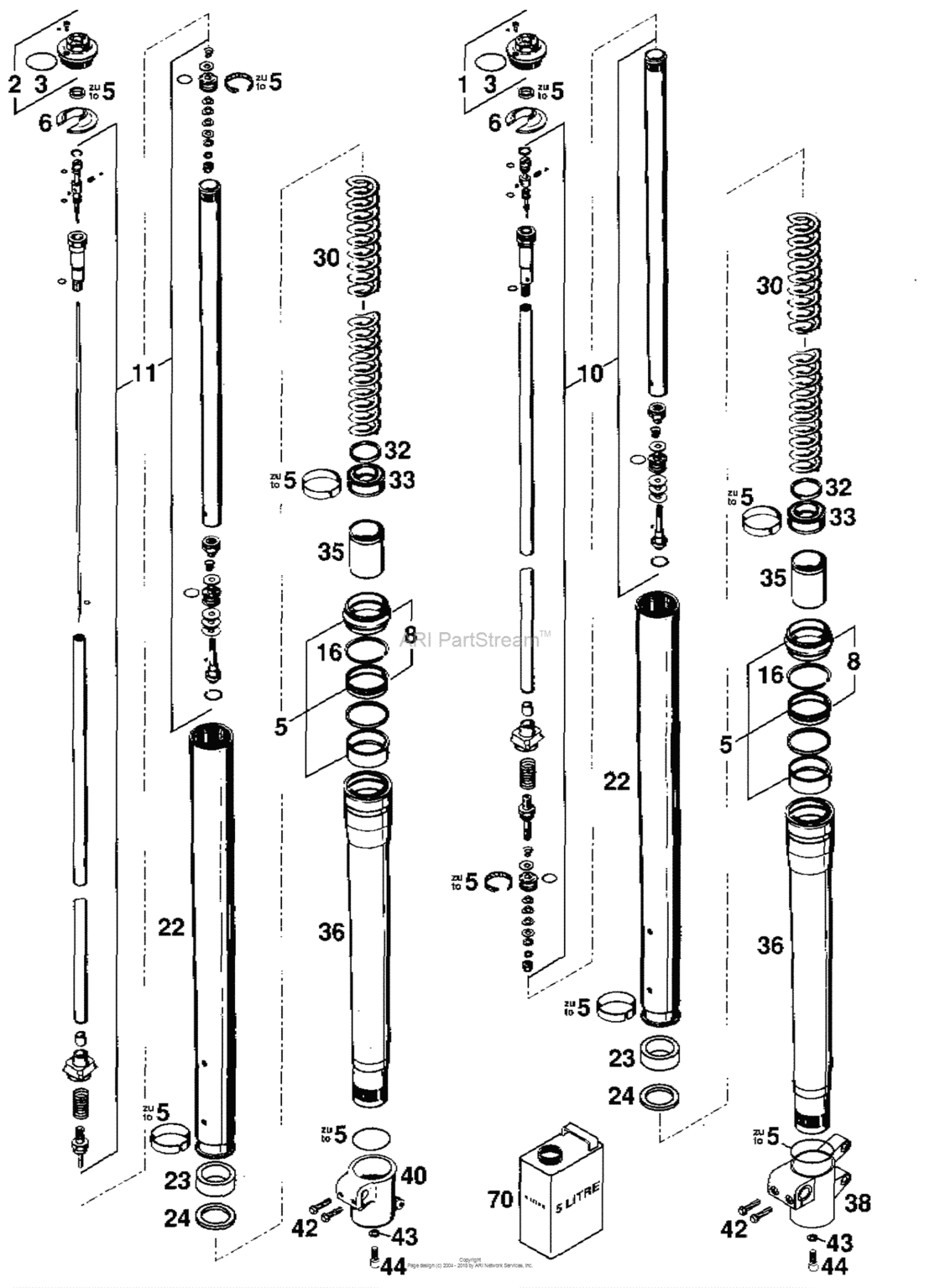

Fork Legs White Power Diagram KTM 620 620 EGS-E Adventure
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EGS-E Adventure
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58201008000
Screw Cap Cpl Compress Damping
97 |
58201008000 |
— | ||
|
2
|
2
58201009000
Screw Cap Cpl Rebound Damping
97 |
58201009000 |
— | ||
|
3
|
3
0770400020
O-Ring 40,00X2,00
97 |
0770400020 |
— | ||
|
5
|
5
58301414000 Rep. Kit 5060 R90497 |
58301414000 |
US $176.89 |
||
|
6
|
6
58301423000
Spring Retainer With Slot
97 |
58301423000 |
— | ||
|
8
|
8
58301415000 Rep. Kit 5060 R90697 |
58301415000 |
US $97.44 |
||
| replacement | |||||
|
8
|
8
R906 REP. KIT 5060 R90697 |
R906 |
US $77.28 |
||
|
10
|
10
58301410000
Cartridge Com.damping K4T97Sx
97 |
58301410000 |
— | ||
|
11
|
11
58301411000
Cartridge Reb. Damping K4T97Sx
97 |
58301411000 |
— | ||
|
16
|
16
58301429000
Circlip D=50Mm
97 |
58301429000 |
— | ||
|
22
|
22
58301403000
Fork Tube D=50Mm/l=707Mm
97 |
58301403000 |
— | ||
|
23
|
23
58301420000
Ring 46X2G
97 |
58301420000 |
— | ||
|
24
|
24
58301419000
Washer 32X45X2
97 |
58301419000 |
— | ||
|
30
|
30
58301421042
Spring 4,2 Kg
(AsRequired) |
58301421042 |
— | ||
|
30
|
30
58301421044
Spring 4,4 Kg
(AsRequired) |
58301421044 |
— | ||
|
30
|
30
58301421048
Spring 4,8 Kg
(AsRequired) |
58301421048 |
— | ||
|
32
|
32
58301416000
Ring 30X39,5X2
(AsRequired) |
58301416000 |
— | ||
|
33
|
33
58301417000
Spacer Ring 36X45X16
(AsRequired) |
58301417000 |
— | ||
|
35
|
35
58301418000
Sliding Bush Hydro-Stop
(AsRequired) |
58301418000 |
— | ||
|
36
|
36
58301404000
Outer Tube L=452Mm
(AsRequired) |
58301404000 |
— | ||
|
38
|
38
58201006000
Axle Clamp L/s 300Mm Adv/
97 |
58201006000 |
— | ||
|
40
|
40
58301407000
Axle Clamp R/s
97 |
58301407000 |
— | ||
|
42
|
42
0015070253
Hh Collar Screw M 7X25 Ws=8
WS=8 |
0015070253 |
— | ||
|
43
|
43
54501081000
Superseded By 4681360
WS=8 |
54501081000 |
— | ||
|
44
|
44
0912080183
Ah Screw Din09I2-M 8X18
WS=8 |
0912080183 |
— | ||
|
70
|
70
06007
Fork Oil Sae5 5 Liter
WS=8 |
06007 |
— | ||
