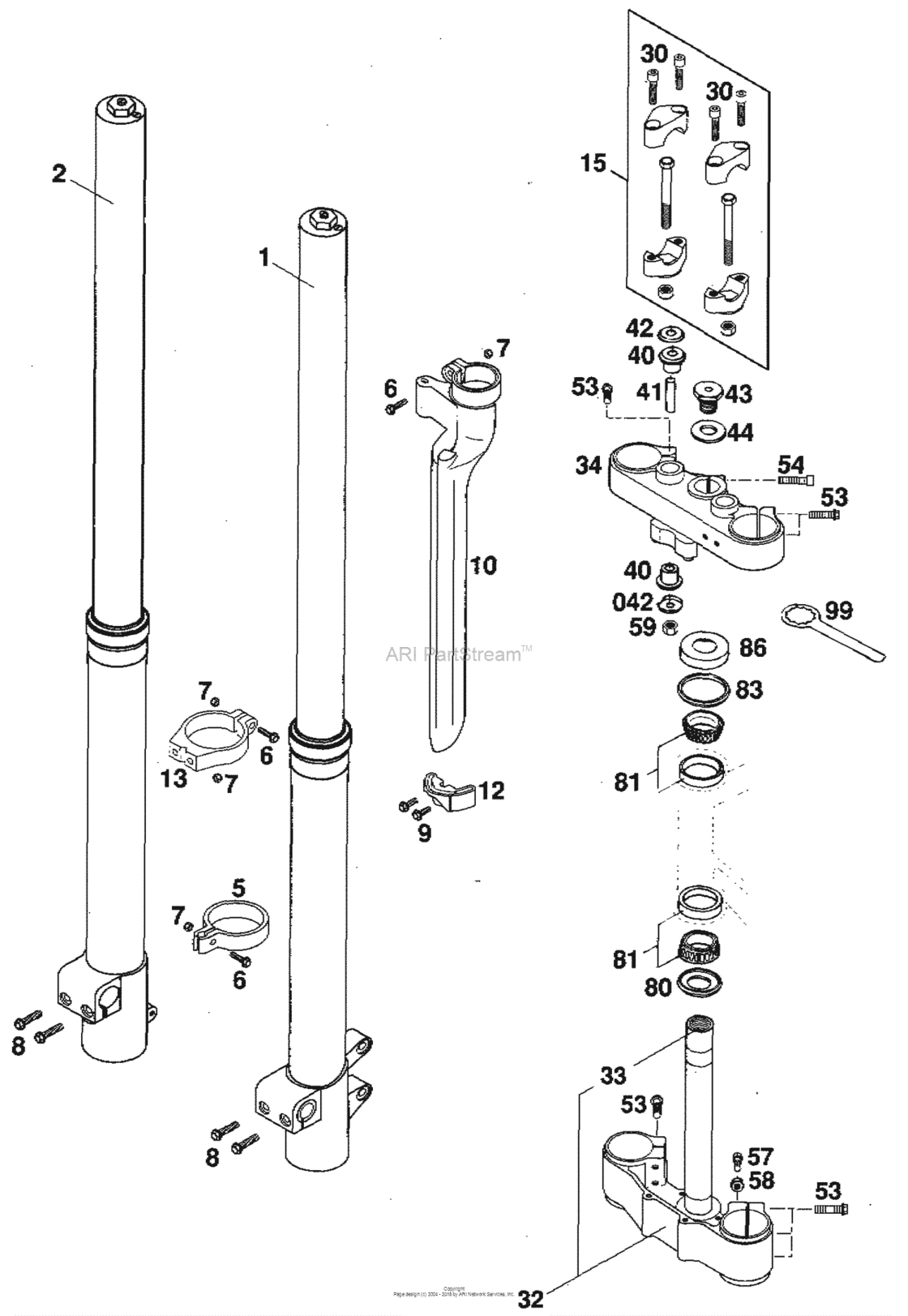

Front Fork White Power Diagram KTM 620 620 EGS-E Adventure
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 EGS-E Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
50301093000
Fork protector r/s black '97
97 |
50301093000 |
— | ||
|
|
5460139000030 Fork protection guide r/s '9797 |
5460139000030 |
US $4.45 |
||
|
1
|
1
58201001000
Fork Leg L/s Wp In.k4T97Adin
97 |
58201001000 |
— | ||
|
2
|
2
58201002000
Fork Leg R/s Wp In.k4T97Adin
97 |
58201002000 |
— | ||
|
5
|
5
50301070000 Sp.cable Guide Marz.50,wp50'9797 |
50301070000 |
US $3.11 |
||
|
6
|
6
0015050203
Hh Collar Screw M5X20 Tx30
WS=8 |
0015050203 |
— | ||
| replacement | |||||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30WS=8 |
0025050206 |
US $1.33 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5WS=8 |
0985050003 |
US $3.26 |
||
|
8
|
8
0015070253
Hh Collar Screw M 7X25 Ws=8
WS=8 |
0015070253 |
— | ||
|
9
|
9
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
10
|
10
50301092000
Fork protector l/s black '97
97 |
50301092000 |
— | ||
|
12
|
12
5460129000030
Fork protection guide l/s '97
97 |
5460129000030 |
— | ||
|
13
|
13
50301090150
Clamp Protector Guide Sxc
97 |
50301090150 |
— | ||
|
15
|
15
58402001050
Supportkit f.handl.duke,adv'97
97 |
58402001050 |
— | ||
|
30
|
30
0912080353 Ah screw din0912-m 8x3597 |
0912080353 |
US $1.65 |
||
|
32
|
32
50301032016 Bot.triple clamp x=16mm/d=50mm97 |
50301032016 |
US $189.81 |
||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
58201034016
Top triple clamp x=16mm/d=50mm
91 |
58201034016 |
— | ||
|
40
|
40
56401040000 Rubber bushing91 |
56401040000 |
US $6.73 |
||
|
41
|
41
56401041100 Spacer tube 10,2x12x4491 |
56401041100 |
US $5.25 |
||
|
42
|
42
56401042000 Washer 10,5x32x291 |
56401042000 |
US $4.71 |
||
|
42
|
42
56401142000 Washer 10,5x3191 |
56401142000 |
US $3.49 |
||
|
43
|
43
56401043000 Hh screw m20x1,591 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2791 |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
91 |
56401044000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
WS=8 |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40WS=8 |
0025080306 |
US $3.89 |
||
|
54
|
54
0912080353 Ah screw din0912-m 8x35WS=8 |
0912080353 |
US $1.65 |
||
|
57
|
57
0933080253 Hh Screw Din0933-M 8X25WS=8 |
0933080253 |
US $1.24 |
||
|
58
|
58
0934080003 Hexagon Nut Din0934-M 8WS=8 |
0934080003 |
US $3.26 |
||
|
59
|
59
0985100003 Self locking nut din0985-m10WS=8 |
0985100003 |
US $1.22 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing LipWS=8 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing LipWS=8 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06WS=8 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06WS=8 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket topWS=8 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head CoverWS=8 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverWS=8 |
78101086000 |
US $5.08 |
||
|
99
|
99
54212035000
Ring wrench ws=32
WS=32 |
54212035000 |
— | ||
