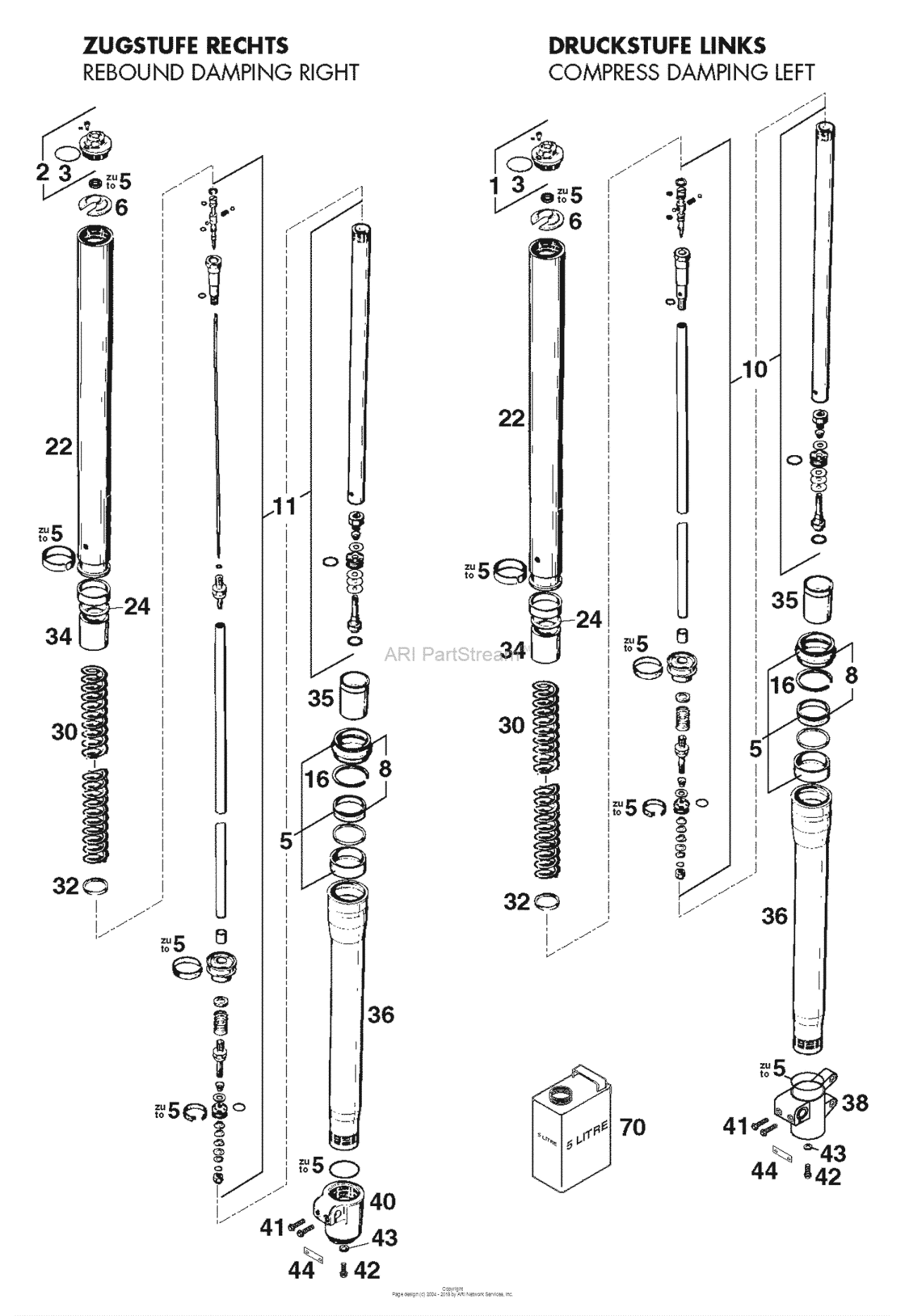

Fork Legs Wp Extreme Diagram KTM 620 620 LC4 Competition
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 LC4 Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58301408000
Superseded By 5060036
LC4'94 |
58301408000 |
— | ||
|
2
|
2
58301409000
Superseded By 5060026
LC4'94 |
58301409000 |
— | ||
|
3
|
3
0770400020
O-Ring 40,00X2,00
LC4'94 |
0770400020 |
— | ||
|
5
|
5
58301414000 Rep. Kit 5060 R904LC4'94 |
58301414000 |
US $176.89 |
||
|
6
|
6
58301423000
Spring Retainer With Slot
LC4'94 |
58301423000 |
— | ||
|
8
|
8
58301415000 Rep. Kit 5060 R906LC4'94 |
58301415000 |
US $97.44 |
||
| replacement | |||||
|
8
|
8
R906 REP. KIT 5060 R906LC4'94 |
R906 |
US $77.28 |
||
|
10
|
10
58401010100
Cartridge Cpl. L/s Lc4 '98
LC4'94 |
58401010100 |
— | ||
|
11
|
11
58401011100
Cartridge Cpl. R/s Lc4 '98
LC4'94 |
58401011100 |
— | ||
|
16
|
16
58301429000
Circlip D=50Mm
LC4'94 |
58301429000 |
— | ||
|
22
|
22
58401003000
Fork Tube D=50Mm/l=698Mm '98
LC4'94 |
58401003000 |
— | ||
|
24
|
24
58301419000
Washer 32X45X2
LC4'94 |
58301419000 |
— | ||
|
30
|
30
54701021038
Spring 3,8 n/mm set
LC4'94 |
54701021038 |
— | ||
|
30
|
30
54701021040
Fork Spring 4, N/mm Set
LC4'94 |
54701021040 |
— | ||
| replacement | |||||
|
30
|
30
99010008S Fork spring 4, n/mm setLC4'94 |
99010008S |
US $219.08 |
||
|
30
|
30
54701021042 Fork Spring 440.445.00.042LC4'94 |
54701021042 |
US $153.46 |
||
| replacement | |||||
|
30
|
30
99010009S
Fork spring 440.445.00.042
LC4'94 |
99010009S |
— | ||
|
30
|
30
54701021044
Spring 4,4 n/mm set
LC4'94 |
54701021044 |
— | ||
|
30
|
30
54701021046
Spring 4,6 n/mm set
LC4'94 |
54701021046 |
— | ||
|
30
|
30
54701021048
Spring 4,8 N/mm
LC4'94 |
54701021048 |
— | ||
|
32
|
32
54701016000
Ring 35X41,5X2,5
LC4'94 |
54701016000 |
— | ||
|
34
|
34
54701022000
Bushing 44,5X35X80
LC4'94 |
54701022000 |
— | ||
|
35
|
35
54701018000
Sliding Bush Hydro-Stop L=73,5
LC4'94 |
54701018000 |
— | ||
|
36
|
36
54701004000
Outer Tube L=439Mm
LC4'94 |
54701004000 |
— | ||
|
38
|
38
58201006100
Axle Clamp L/s 300Mm M8 '98
LC4'94 |
58201006100 |
— | ||
|
40
|
40
54701007000
Axle Clamp R/s Extreme M8 '98
LC4'94 |
54701007000 |
— | ||
|
41
|
41
0015080253
H H Collar Screw
LC4'94 |
0015080253 |
— | ||
| replacement | |||||
|
41
|
41
0025080256 Hh Collar Screw M8X25 Tx40LC4'94 |
0025080256 |
US $4.10 |
||
|
42
|
42
0015080203 Hh collar screw m 8x20 ws=10LC4'94 |
0015080203 |
US $1.68 |
||
|
43
|
43
54501081000
Superseded By 4681360
LC4'94 |
54501081000 |
— | ||
|
44
|
44
58301006050
Clamping Plate 13,5X42,5
LC4'94 |
58301006050 |
— | ||
|
70
|
70
306007
Fork Oil Sae5
LC4'94 |
306007 |
— | ||
