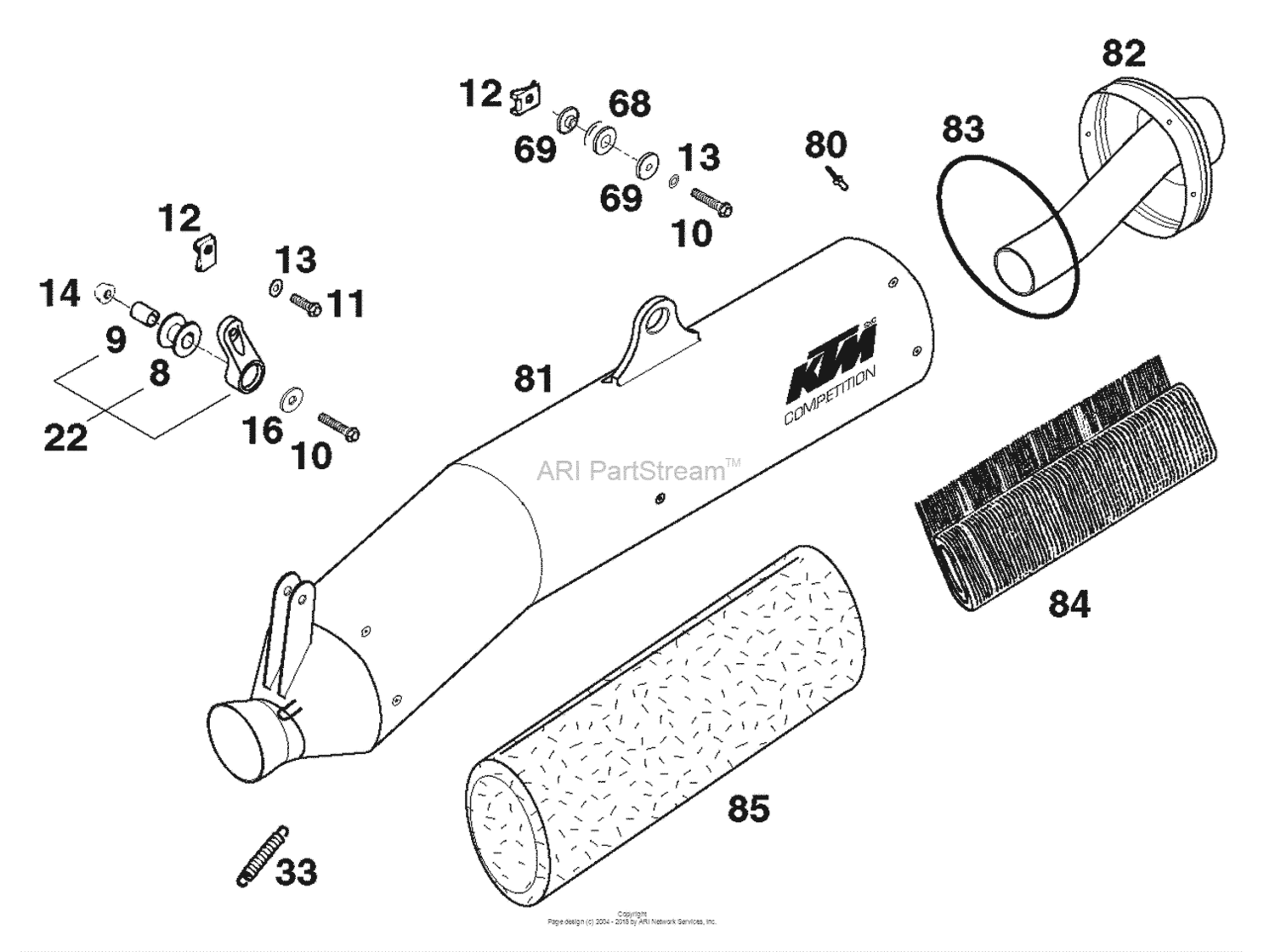

Silencer Diagram KTM 620 620 LC4 Competition
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 LC4 Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
54305068100 Damp. component silicone greyLC4'94 |
54305068100 |
US $14.26 |
||
|
9
|
9
54305069000 Bushing 7x12x15,4LC4'94 |
54305069000 |
US $3.33 |
||
|
10
|
10
0015060303
Hh Collar Screw M6X30 Tx30
LC4'94 |
0015060303 |
— | ||
| replacement | |||||
|
10
|
10
0025060306 Hh collar screw m6x30 tx30LC4'94 |
0025060306 |
US $3.96 |
||
|
11
|
11
0015060203
Hh Collar Screw M 6X20 Ws=8
LC4'94 |
0015060203 |
— | ||
| replacement | |||||
|
11
|
11
0025060206 Hh collar screw m6x20 tx30LC4'94 |
0025060206 |
US $1.97 |
||
|
12
|
12
54603048100 Range Change Metal Nut M6LC4'94 |
54603048100 |
US $5.27 |
||
|
13
|
13
0137060000
Spring Washer Din0137-B 6
LC4'94 |
0137060000 |
— | ||
| replacement | |||||
|
13
|
13
0137060003 Spring Washer Din0137-B 6LC4'94 |
0137060003 |
US $0.43 |
||
|
14
|
14
56509064000 Self Locking Nut M6 10.9LC4'94 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
14
|
14
56509064100 Self Locking Nut M6 10.9LC4'94 |
56509064100 |
US $1.04 |
||
|
16
|
16
0021060003 Washer Din9021-A 6,4LC4'94 |
0021060003 |
US $3.26 |
||
|
22
|
22
58305165244 Silencer bracket cpl. short'96LC4'94 |
58305165244 |
US $32.03 |
||
|
33
|
33
50305016000
Ten.spring L=62Mm Ey.moveable
LC4'94 |
50305016000 |
— | ||
| replacement | |||||
|
33
|
33
A46005016000 TEN.SPRING L=62MM EY.MOVEABLELC4'94 |
A46005016000 |
US $5.88 |
||
|
68
|
68
54605068000
Exhaust bracket rubber black
LC4'94 |
54605068000 |
— | ||
| replacement | |||||
|
68
|
68
77205068000 Damp. Compon. BlackLC4'94 |
77205068000 |
US $8.43 |
||
|
69
|
69
54605069000
Bushing 7,5x12x28x7,8 '96
LC4'94 |
54605069000 |
— | ||
| replacement | |||||
|
69
|
69
77205169000 Bushing 7.5X12X28X8.3 11LC4'94 |
77205169000 |
US $7.82 |
||
|
80
|
80
0011480752 Dummy Rivet 4,8X 8 NiroLC4'94 |
0011480752 |
US $2.40 |
||
| replacement | |||||
|
80
|
80
0011480800 Dummy Rivet 4,8X 8 NiroLC4'94 |
0011480800 |
US $2.35 |
||
|
81
|
81
58305081000
Silencer Throttled Sxc'98
LC4'94 |
58305081000 |
— | ||
|
82
|
82
58305081003
End Cap Cpl. Sxc Throttled '98
LC4'94 |
58305081003 |
— | ||
|
83
|
83
0770223601 O-Ring 82,14X3,53 SiliconeLC4'94 |
0770223601 |
US $10.73 |
||
|
84
|
84
58305078002 Stuffing yarn rear 90 gramm'98LC4'94 |
58305078002 |
US $49.11 |
||
|
85
|
85
58305078000
Stuffingyarn Front 400Gramm
LC4'94 |
58305078000 |
— | ||
| replacement | |||||
|
85
|
85
77005078380 Stuffing yarn 380 gramLC4'94 |
77005078380 |
US $86.38 |
||
