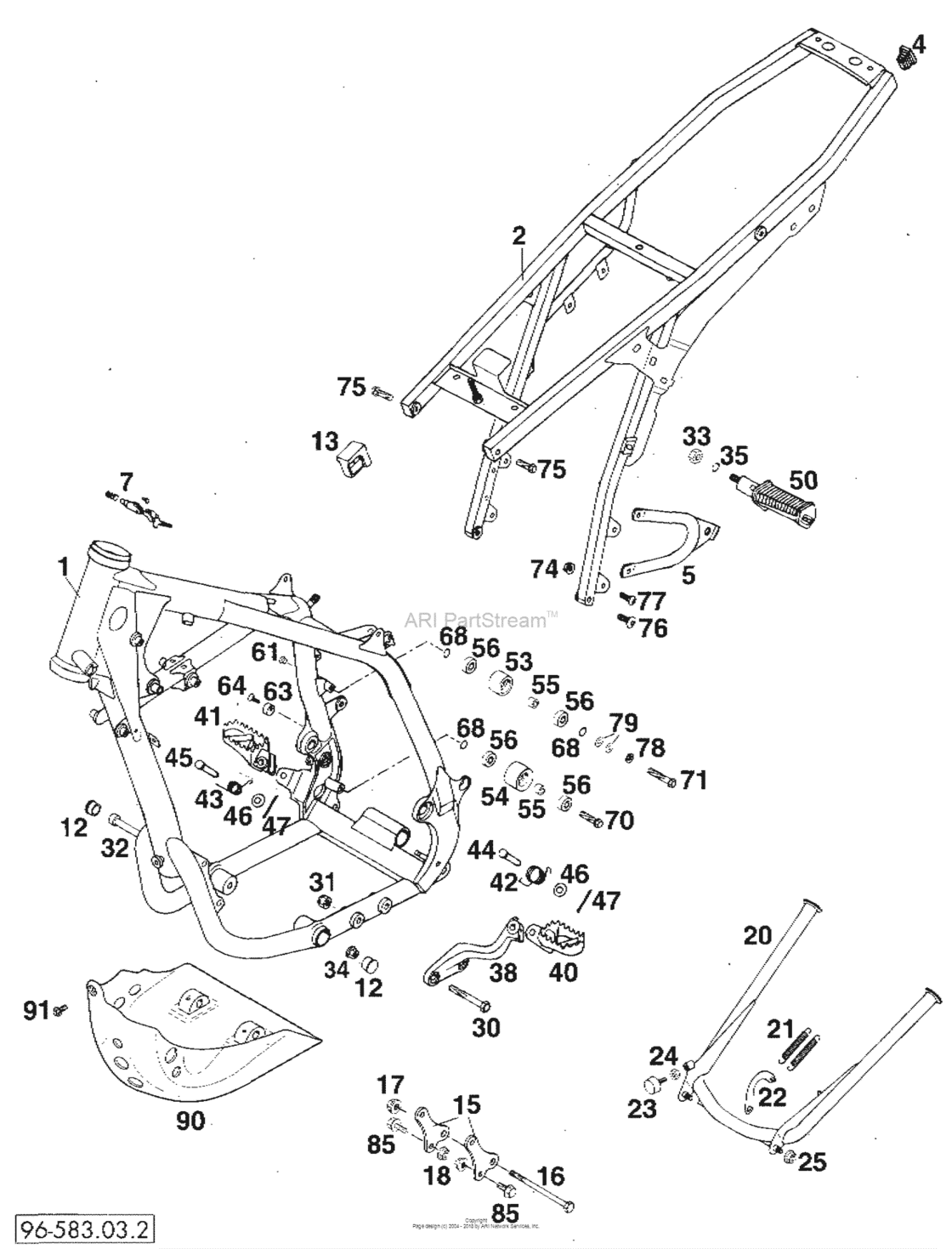

Frame, Sub Frame Diagram KTM 620 620 RXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 RXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58303103000
Foot rest bracket rear r/s '93
93, (As Required) |
58303103000 |
— | ||
|
1
|
1
58303001500
Frame sc, rxc '96
96 |
58303001500 |
— | ||
|
2
|
2
58303002400
Sub frame cpl.steel '96
96 |
58303002400 |
— | ||
|
4
|
4
58303002090
Plug 12 x 17 mm
96 |
58303002090 |
— | ||
|
5
|
5
58303003000
Footrest bracket rear l/s
93, (As Required) |
58303003000 |
— | ||
| replacement | |||||
|
5
|
5
5830300300030 FOOTRESTBRACKET REAR L/S BLACK93, (As Required) |
5830300300030 |
US $98.69 |
||
|
7
|
7
44003007000
Steering Head Lock
93, (As Required) |
44003007000 |
— | ||
| replacement | |||||
|
7
|
7
71003007000 Steering head lock cpl. zadi93, (As Required) |
71003007000 |
US $28.07 |
||
|
12
|
12
71001012000
Pvc Cap D=22Mm
93, (As Required) |
71001012000 |
— | ||
| replacement | |||||
|
12
|
12
71001012100 Pvc cap d=22mm93, (As Required) |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '9393 |
58307015000 |
US $7.28 |
||
|
15
|
15
58303055000 Engine support agw '9494 |
58303055000 |
US $13.55 |
||
|
16
|
16
0931101103 Hh screw din0931-m10x110SW=17 |
0931101103 |
US $2.23 |
||
|
17
|
17
49009082000 Self locking nut m10 fk893 |
49009082000 |
US $2.31 |
||
|
18
|
18
54310086000
Self Locking Nut M8 10.9
93 |
54310086000 |
— | ||
| replacement | |||||
|
18
|
18
54310086200 Self Locking Nut M8 10.993 |
54310086200 |
US $1.56 |
||
|
20
|
20
58303022000
Center stand long 408mm '93
93 |
58303022000 |
— | ||
| replacement | |||||
|
20
|
20
5830302200019 CENTER STAND 408MM ANTHR. 9993 |
5830302200019 |
US $274.28 |
||
|
21
|
21
10003021000 Stand spring short93 |
10003021000 |
US $6.17 |
||
|
22
|
22
58303027000 Springbow '9393 |
58303027000 |
US $30.48 |
||
|
23
|
23
58303070000 Stop rubber m893 |
58303070000 |
US $7.23 |
||
|
24
|
24
0934080003 Hexagon Nut Din0934-M 893 |
0934080003 |
US $3.26 |
||
|
25
|
25
54310086000
Self Locking Nut M8 10.9
93 |
54310086000 |
— | ||
| replacement | |||||
|
25
|
25
54310086200 Self Locking Nut M8 10.993 |
54310086200 |
US $1.56 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
93 |
0931100603 |
— | ||
|
31
|
31
0985100003 Self locking nut din0985-m1093 |
0985100003 |
US $1.22 |
||
|
32
|
32
0912101603 Ah screw din0912-m10x16093 |
0912101603 |
US $8.33 |
||
|
33
|
33
0934100003 Hexagon nut din0934-m10(As Required) |
0934100003 |
US $0.94 |
||
|
34
|
34
54630044000 Collar nut m10 ws=13SW=13 |
54630044000 |
US $2.16 |
||
|
35
|
35
0127100003 Spring ring din0127-b10(As Required) |
0127100003 |
US $0.29 |
||
|
38
|
38
58303038000 Footrest bracket l/s '9393 |
58303038000 |
US $53.57 |
||
|
40
|
40
58303040000 Foot Ped L/s93 |
58303040000 |
US $45.07 |
||
| replacement | |||||
|
40
|
40
5460304001030 FOOTPEG KIT93 |
5460304001030 |
US $76.53 |
||
|
41
|
41
5460314000019
Footrest r/s '93
93 |
5460314000019 |
— | ||
|
42
|
42
58303041000 Footrest spring l/s '9393 |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/s93 |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrest93 |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 5093 |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,593 |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steel93 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steel93 |
0094032250 |
US $1.12 |
||
|
50
|
50
49003250000 Footrest rear l/s cpl.(As Required) |
49003250000 |
US $35.17 |
||
|
50
|
50
49003350000 Footrest rear r/s cpl.(As Required) |
49003350000 |
US $35.17 |
||
|
53
|
53
50203053000 Chain roll d=30mm(As Required) |
50203053000 |
US $7.36 |
||
|
54
|
54
50203053100 Chain Roll D=35Mm 125-380 '99(As Required) |
50203053100 |
US $7.67 |
||
| replacement | |||||
|
54
|
54
52303053100 Chain Roll D=35Mm 125-380 '99(As Required) |
52303053100 |
US $6.73 |
||
|
55
|
55
74003021000 Bushing 8.2 x 12 x 6(As Required) |
74003021000 |
US $2.14 |
||
|
56
|
56
0625006087 Grooved Ball Bear. 608 2Rs C3(As Required) |
0625006087 |
US $19.19 |
||
|
61
|
61
54403135000 Plastic cap sfl10(As Required) |
54403135000 |
US $1.31 |
||
|
63
|
63
58303063000 Brake lever stop '9393 |
58303063000 |
US $5.07 |
||
|
64
|
64
0991060203 Flat Head Din7991-M 6X2093 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
64
|
64
0991060202 Flat head din7991-m 6x2093 |
0991060202 |
US $3.26 |
||
|
68
|
68
36003014000 Lock washer 8mm(As Required) |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
SW=10 |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40SW=10 |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080353 Hh Collar Screw M 8X35 Ws=10SW=10 |
0015080353 |
US $7.12 |
||
|
74
|
74
54310086000
Self Locking Nut M8 10.9
(As Required) |
54310086000 |
— | ||
| replacement | |||||
|
74
|
74
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
75
|
75
0015080253
H H Collar Screw
SW=10 |
0015080253 |
— | ||
| replacement | |||||
|
75
|
75
0025080256 Hh Collar Screw M8X25 Tx40SW=10 |
0025080256 |
US $4.10 |
||
|
76
|
76
54510052000
Counter-Sunk Screw Isa45 M8X26
SW=10 |
54510052000 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26SW=10 |
0019080266S |
US $2.23 |
||
|
77
|
77
0107080203 Ah oval h.screw din0170-m 8x20(As Required) |
0107080203 |
US $1.60 |
||
|
78
|
78
0797080003 Toothlock washer din6797-j 8,4(As Required) |
0797080003 |
US $0.20 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4(As Required) |
0125080003 |
US $2.02 |
||
|
85
|
85
49109481052 Hh collar screw m 8x16 ws=13(As Required) |
49109481052 |
US $2.06 |
||
|
90
|
90
58303005044 Skid Plate Plastic96 |
58303005044 |
US $122.79 |
||
| replacement | |||||
|
90
|
90
58303005244
Skid plate plastic
96 |
58303005244 |
— | ||
|
91
|
91
0014060133
Hh collar screw m 6x13 ws=8
SW=8 |
0014060133 |
— | ||
| replacement | |||||
|
91
|
91
0024060136 Hh collar screw m6x13 tx30SW=8 |
0024060136 |
US $2.09 |
||
