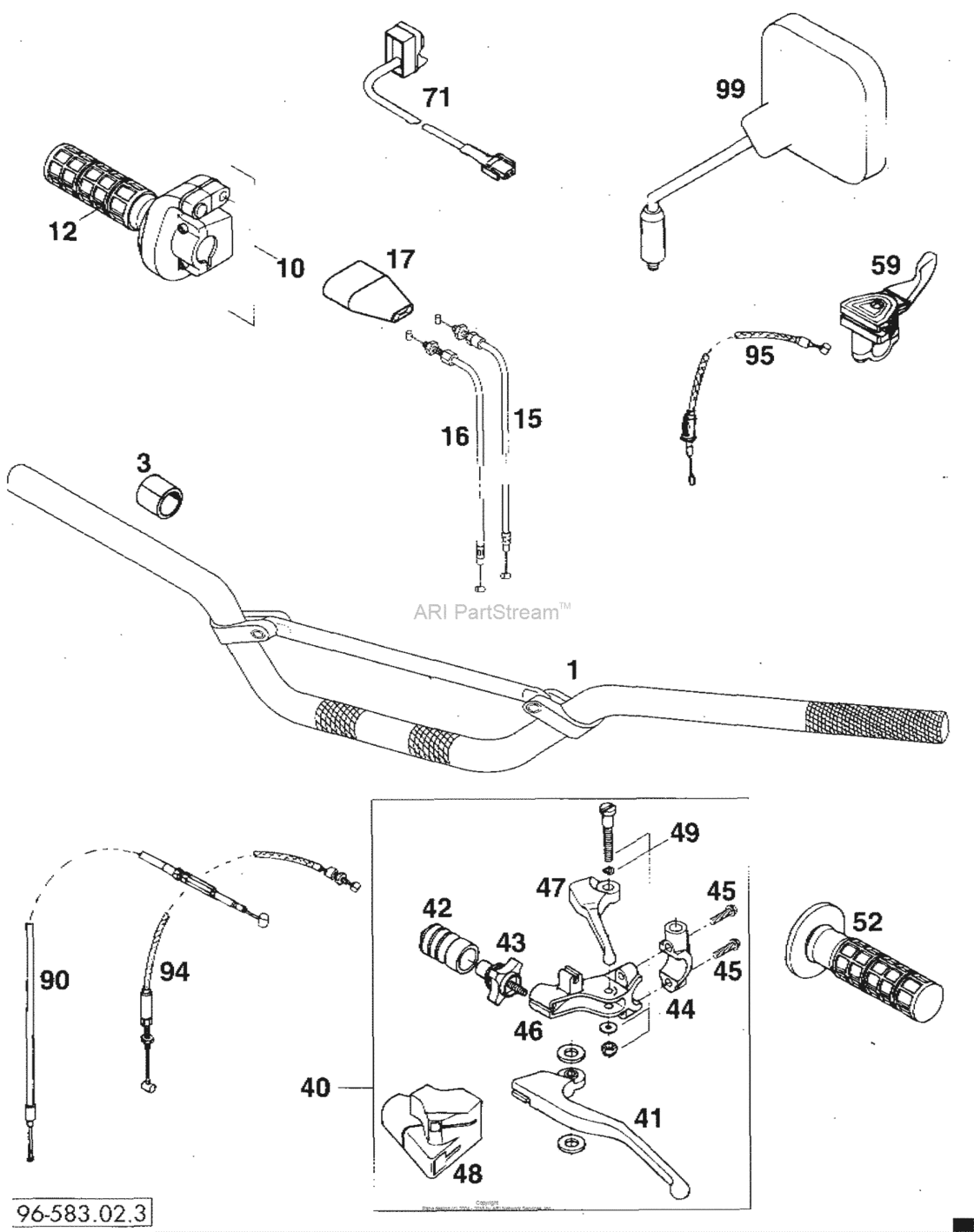

Handlebar, Control Diagram KTM 620 620 RXC
- Year
- 1996
- Sales region
- US/EU
- Engine Capacity
- 620
- Model
- 620 RXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/s(As Required) |
58012140000 |
US $42.67 |
||
|
1
|
1
50202001000
Alu-handlebar '95
95 |
50202001000 |
— | ||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
(As Required) |
50202010000 |
— | ||
|
10
|
10
58302010200
Throttle grip rxc/duke usa '95
95 |
58302010200 |
— | ||
|
12
|
12
58302003000
Gripp Set Full Waffle
95 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle95 |
58302021000 |
US $28.88 |
||
|
15
|
15
58302091300 Throttle cable domino/qwik95 |
58302091300 |
US $37.52 |
||
|
16
|
16
58302191300 Throttle cable domino/qwik95 |
58302191300 |
US $37.52 |
||
|
17
|
17
58302016200
Protect.cover rxc/duke usa '95
95 |
58302016200 |
— | ||
|
40
|
40
58302040100 Clutch lever assy cpl.domino94 |
58302040100 |
US $112.85 |
||
|
41
|
41
58302055000 Clutch Lever Loose Silver '9794 |
58302055000 |
US $49.42 |
||
| replacement | |||||
|
41
|
41
58402042000 Clutch lever loose silver '9794 |
58402042000 |
US $45.36 |
||
|
42
|
42
54602126000 Bellows clutch lever '9192 |
54602126000 |
US $14.35 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m792 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,2592 |
58302044000 |
US $11.41 |
||
|
45
|
45
015060253
Hh Collar Screw M 6X25
SW=8 |
015060253 |
— | ||
|
46
|
46
58302023000 Joint dominoSW=8 |
58302023000 |
US $51.48 |
||
|
47
|
47
58302047000 Decompression lever looseSW=8 |
58302047000 |
US $12.19 |
||
|
48
|
48
58302048000 Protecting coverSW=8 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.SW=8 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
93 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle93 |
58302021000 |
US $28.88 |
||
|
59
|
59
58302050000
Choke lever domino '93
93 |
58302050000 |
— | ||
|
71
|
71
58311071100 Short circuit switch 550mm '9494 |
58311071100 |
US $39.97 |
||
|
90
|
90
50202090200 Clutch Cable94 |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '9994 |
58402090000 |
US $36.65 |
||
|
94
|
94
58302094000 Decompression cable lc4 '9393 |
58302094000 |
US $37.81 |
||
|
95
|
95
58302095000 Choke cable lc4 '9393 |
58302095000 |
US $51.34 |
||
|
99
|
99
58012040000 Rear mirror l/s93 |
58012040000 |
US $41.60 |
||
