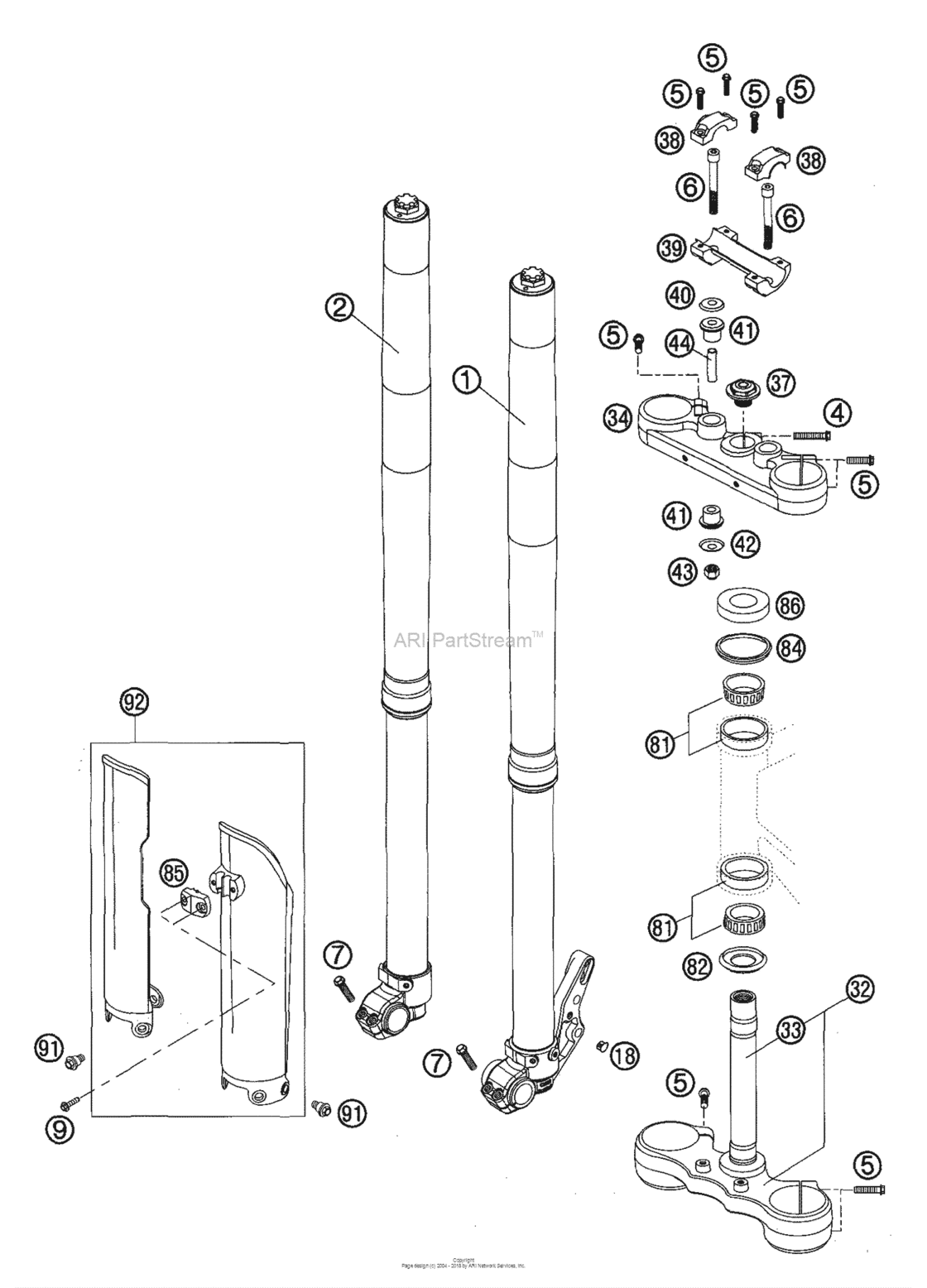

Front Fork Wp Usd 48 Diagram KTM 625 625 SMC Racing
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SMC Racing
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1418Y750LS
Fork leg l/s wp48 sm 04
'94 |
1418Y750LS |
— | ||
|
2
|
2
1418Y750RS
Fork leg r/s wp48 sm 04
'94 |
1418Y750RS |
— | ||
|
4
|
4
0015080353 Hh Collar Screw M 8X35 Ws=10'94 |
0015080353 |
US $7.12 |
||
|
5
|
5
0015080253
H H Collar Screw
'94 |
0015080253 |
— | ||
| replacement | |||||
|
5
|
5
0025080256 Hh Collar Screw M8X25 Tx40'94 |
0025080256 |
US $4.10 |
||
|
6
|
6
0984100706 Ah screw din6912-m10x70 10.9'94 |
0984100706 |
US $5.39 |
||
|
7
|
7
0015080253
H H Collar Screw
'94 |
0015080253 |
— | ||
| replacement | |||||
|
7
|
7
0025080256 Hh Collar Screw M8X25 Tx40'94 |
0025080256 |
US $4.10 |
||
|
9
|
9
0017060203
Screw For Plastic K60X20 Sw6
'94 |
0017060203 |
— | ||
| replacement | |||||
|
9
|
9
0017060205 Screw For Plastic K60X20 Sw6'94 |
0017060205 |
US $2.24 |
||
|
18
|
18
58301098000 Plastic cap 3/8" 2663'94 |
58301098000 |
US $1.41 |
||
|
32
|
32
58401132100 Bot.triple clamp cpl. sm 03'94 |
58401132100 |
US $420.02 |
||
|
33
|
33
50101033100 Fork Tube L=244'94 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244'94 |
54801133000 |
US $78.15 |
||
|
34
|
34
58401234000
Top triple clamp 660 sm 03
'94 |
58401234000 |
— | ||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27'94 |
50301036000 |
US $12.65 |
||
|
38
|
38
59001038200 Handlebar Clamp D=28Mm 2000'94 |
59001038200 |
US $21.10 |
||
|
39
|
39
59001039100 Handlebar Support 28Mm Sc'99'94 |
59001039100 |
US $64.89 |
||
|
40
|
40
56401042000 Washer 10,5x32x2'94 |
56401042000 |
US $4.71 |
||
|
41
|
41
56401040000 Rubber bushing'94 |
56401040000 |
US $6.73 |
||
|
42
|
42
56401142000 Washer 10,5x31'94 |
56401142000 |
US $3.49 |
||
|
43
|
43
0982100003 Self lock.nut din0982-m10 high'94 |
0982100003 |
US $2.35 |
||
|
44
|
44
56401041100 Spacer tube 10,2x12x44'94 |
56401041100 |
US $5.25 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06'94 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06'94 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip'94 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip'94 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top'94 |
54601184000 |
US $7.74 |
||
|
85
|
85
58201085000 Clamp f.speed cable d=8mm 2001'94 |
58201085000 |
US $2.38 |
||
|
86
|
86
54201086000 Steering Head Cover'94 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover'94 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8'94 |
59001092050 |
US $2.35 |
||
|
92
|
92
5900109400030
Fork Prot. L/s+R/s Black 10
'94 |
5900109400030 |
— | ||
| replacement | |||||
|
92
|
92
5900109410030 FORK PROT. L/S+R/S BLACK 10'94 |
5900109410030 |
US $49.79 |
||
