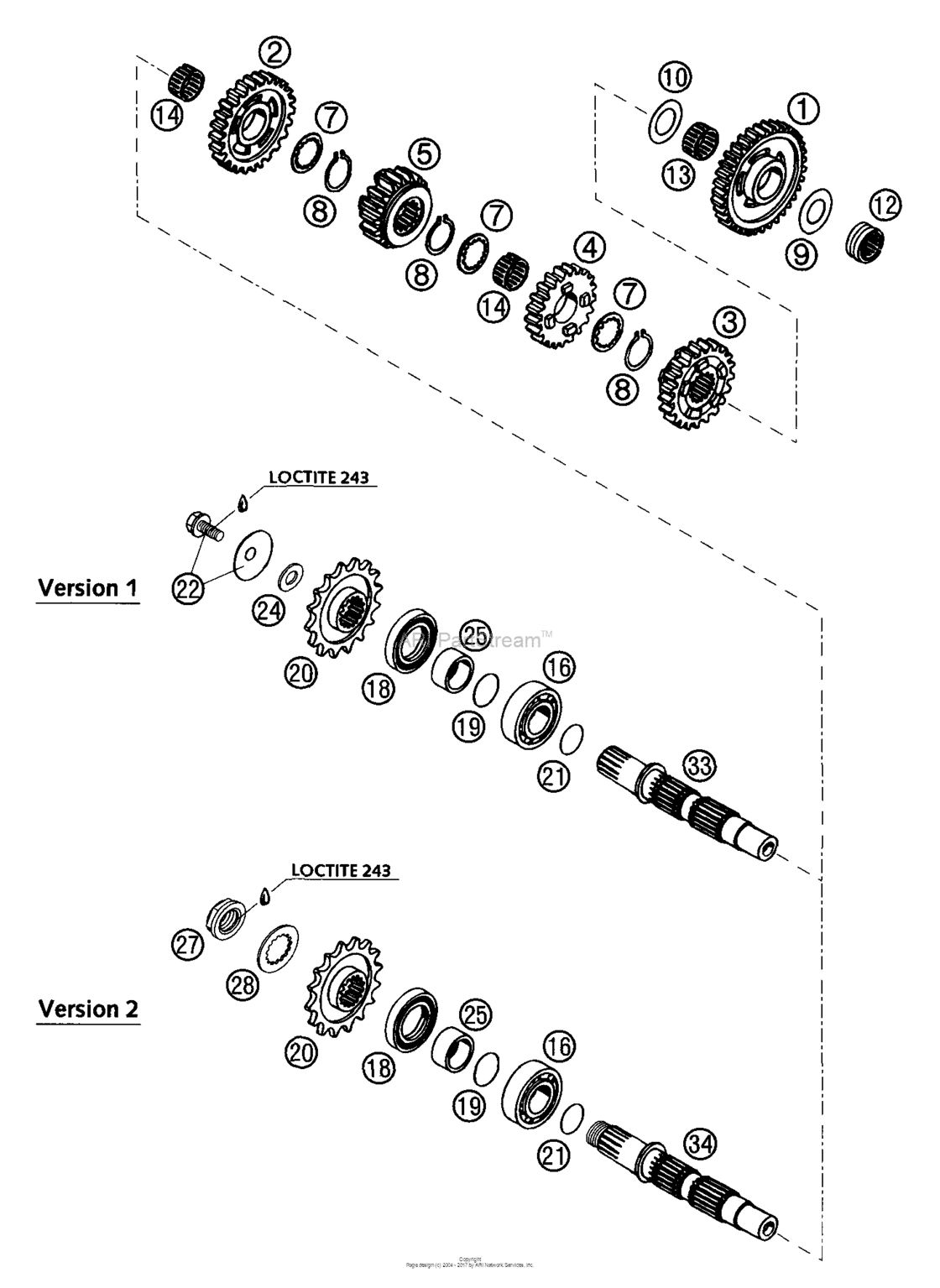

Transmission Ii - Countershaft Diagram KTM 625 625 SXC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 625
- Model
- 625 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56533005300 Idler gear 1.g 35-t (1m3)REPROGRAMMABLE: KM/H-MPH |
56533005300 |
US $210.36 |
||
|
2
|
2
58333113010 Idler gear 2.g 24-t "10"REPROGRAMMABLE: KM/H-MPH |
58333113010 |
US $207.45 |
||
|
3
|
3
58333007003 Sliding gear 3.g 21-t "03"REPROGRAMMABLE: KM/H-MPH |
58333007003 |
US $144.53 |
||
|
4
|
4
58333009005 Idler gear 4.g 19-t "05"REPROGRAMMABLE: KM/H-MPH |
58333009005 |
US $142.27 |
||
|
5
|
5
58333011009 Sliding gear 5.g 18-t "09"REPROGRAMMABLE: KM/H-MPH |
58333011009 |
US $166.99 |
||
|
7
|
7
56533016300 Stop disk 22,7 x 32 x 1,5REPROGRAMMABLE: KM/H-MPH |
56533016300 |
US $5.68 |
||
|
8
|
8
52033096000 Lock ring din0471-25x1,64sdREPROGRAMMABLE: KM/H-MPH |
52033096000 |
US $4.17 |
||
|
9
|
9
56533015000
Stop disk 20,2 x 35 x 1
REPROGRAMMABLE: KM/H-MPH |
56533015000 |
— | ||
|
10
|
10
56533018300 Stop disk 22,2 x 35 x 1,5REPROGRAMMABLE: KM/H-MPH |
56533018300 |
US $4.39 |
||
|
12
|
12
56533093000 Needle bearing rna 4902 kseREPROGRAMMABLE: KM/H-MPH |
56533093000 |
US $22.32 |
||
|
13
|
13
56533098000 Needle bearing k22x26x13hREPROGRAMMABLE: KM/H-MPH |
56533098000 |
US $13.74 |
||
|
14
|
14
56533099000 Needle Bear. K 22X26X13 TnREPROGRAMMABLE: KM/H-MPH |
56533099000 |
US $11.36 |
||
| replacement | |||||
|
14
|
14
0405222613 Needle Bear. K 22X26X13 TnREPROGRAMMABLE: KM/H-MPH |
0405222613 |
US $9.52 |
||
|
16
|
16
49030023000 Cyl.roll Bearing Nj205REPROGRAMMABLE: KM/H-MPH |
49030023000 |
US $67.86 |
||
|
18
|
18
0760324771 Shaft Seal Ring 32X47X7 BslREPROGRAMMABLE: KM/H-MPH |
0760324771 |
US $17.20 |
||
|
19
|
19
0770250021 O-ring 25,00x2,00 siliconeREPROGRAMMABLE: KM/H-MPH |
0770250021 |
US $4.35 |
||
|
20
|
20
58033029014 Engine sprocket 14 tREPROGRAMMABLE: KM/H-MPH |
58033029014 |
US $33.90 |
||
|
20
|
20
58033029015 Engine sprocket 15 tREPROGRAMMABLE: KM/H-MPH |
58033029015 |
US $34.58 |
||
|
20
|
20
58033029016 Engine sprocket 16 tREPROGRAMMABLE: KM/H-MPH |
58033029016 |
US $34.60 |
||
|
20
|
20
58033029017 Engine sprocket 17 tREPROGRAMMABLE: KM/H-MPH |
58033029017 |
US $34.58 |
||
|
21
|
21
0770220010 O-ring 22,00x1,00 nbr 70REPROGRAMMABLE: KM/H-MPH |
0770220010 |
US $1.21 |
||
|
22
|
22
59033034044 Screw 10.9+Spring WasherREPROGRAMMABLE: KM/H-MPH |
59033034044 |
US $9.01 |
||
|
24
|
24
0125100003 Washer Din0125-A10,5REPROGRAMMABLE: KM/H-MPH |
0125100003 |
US $1.19 |
||
|
25
|
25
54633014100
Spacer bushing 12mm
REPROGRAMMABLE: KM/H-MPH |
54633014100 |
— | ||
| replacement | |||||
|
25
|
25
76633030012 Spacer bushing 12mmREPROGRAMMABLE: KM/H-MPH |
76633030012 |
US $15.16 |
||
|
27
|
27
58033032200
Sprocket nut lc4 03
REPROGRAMMABLE: KM/H-MPH |
58033032200 |
— | ||
| replacement | |||||
|
27
|
27
58033132300 Sprocket nut lc4 03REPROGRAMMABLE: KM/H-MPH |
58033132300 |
US $19.86 |
||
|
28
|
28
51033031000 Lock washerREPROGRAMMABLE: KM/H-MPH |
51033031000 |
US $6.73 |
||
|
33
|
33
58333003000 CountershaftREPROGRAMMABLE: KM/H-MPH |
58333003000 |
US $234.94 |
||
|
34
|
34
58333003100 Countershaft 03REPROGRAMMABLE: KM/H-MPH |
58333003100 |
US $489.70 |
||
