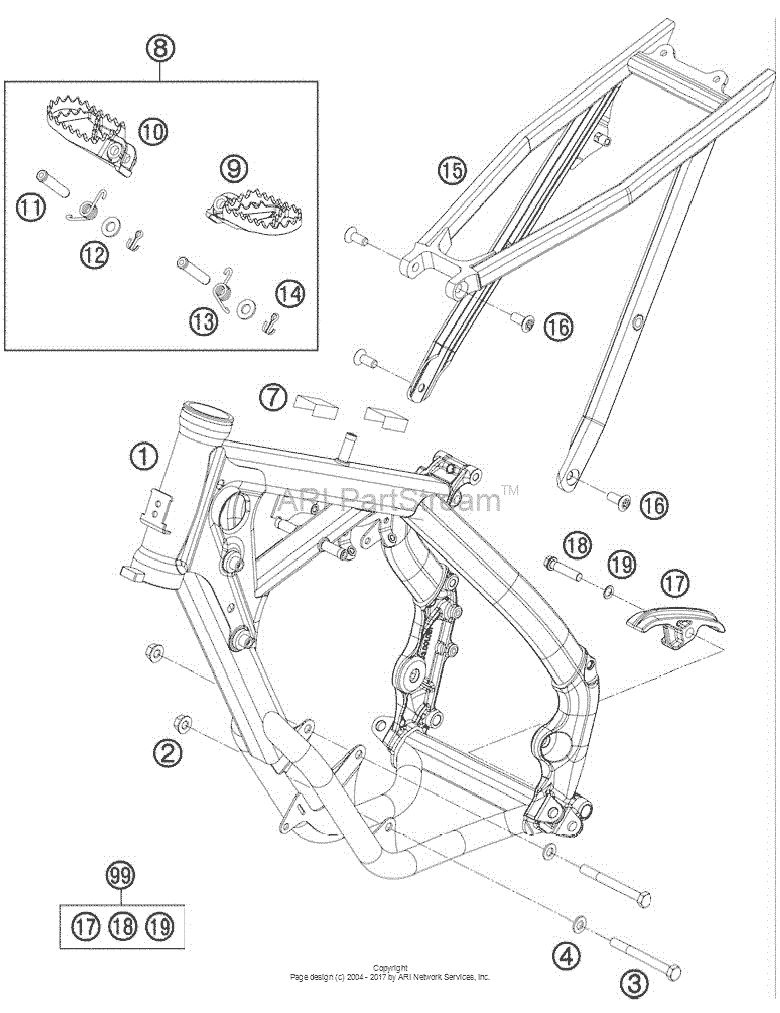

Frame Diagram KTM 65 65 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4620300124433 Frame 462L3TX30 |
4620300124433 |
US $1,081.46 |
||
|
2
|
2
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
3
|
3
0931080805 Hh screw din 931 m8x80 10.910.9 |
0931080805 |
US $0.31 |
||
|
4
|
4
0125080003 Washer din0125-a 8,410.9 |
0125080003 |
US $2.02 |
||
|
7
|
7
50307012000 Adh. foil transp. 80x80 mm 0404 |
50307012000 |
US $2.02 |
||
|
8
|
8
4700304003390 Footpeg l.+r. cpl. 85 sx 0303 |
4700304003390 |
US $117.27 |
||
| replacement | |||||
|
8
|
8
47103040033 Footrest Cpl. 1403 |
47103040033 |
US $113.41 |
||
|
9
|
9
59003040050
Foot ped l/s exc silver 2000
2000 |
59003040050 |
— | ||
| replacement | |||||
|
9
|
9
47103040000 Footrest L/s2000 |
47103040000 |
US $44.56 |
||
|
10
|
10
59003041050
Footrest R/s
2000 |
59003041050 |
— | ||
| replacement | |||||
|
10
|
10
47103041000 Footrest R/s2000 |
47103041000 |
US $43.49 |
||
|
11
|
11
54803044000 Pin For Foot Ped 51.5X9.8 Mm03 |
54803044000 |
US $10.98 |
||
|
12
|
12
0125100003 Washer Din0125-A10,503 |
0125100003 |
US $1.19 |
||
|
13
|
13
54603041000 Footrest Spring L/s & R/s03 |
54603041000 |
US $3.52 |
||
|
14
|
14
0094032253 Pin din0094-3,2x25 steel03 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
14
|
14
0094032250 Pin din0094-3,2x25 steel03 |
0094032250 |
US $1.12 |
||
|
15
|
15
46203002000 Sub frame 65 sx 20092009 |
46203002000 |
US $217.60 |
||
|
16
|
16
0019080206S Flat head screw m. isa45 m8x202009 |
0019080206S |
US $3.26 |
||
|
17
|
17
77303053000 Chain sliding piece below 0707 |
77303053000 |
US $9.78 |
||
|
18
|
18
0025080356 Hh Collar Screw M8X35 Tx40TX40 |
0025080356 |
US $3.04 |
||
|
19
|
19
36003014000 Lock washer 8mmTX40 |
36003014000 |
US $0.46 |
||
|
99
|
99
77303053110 Chain Sliding Kit Below 09-1509-12 |
77303053110 |
US $11.56 |
||
