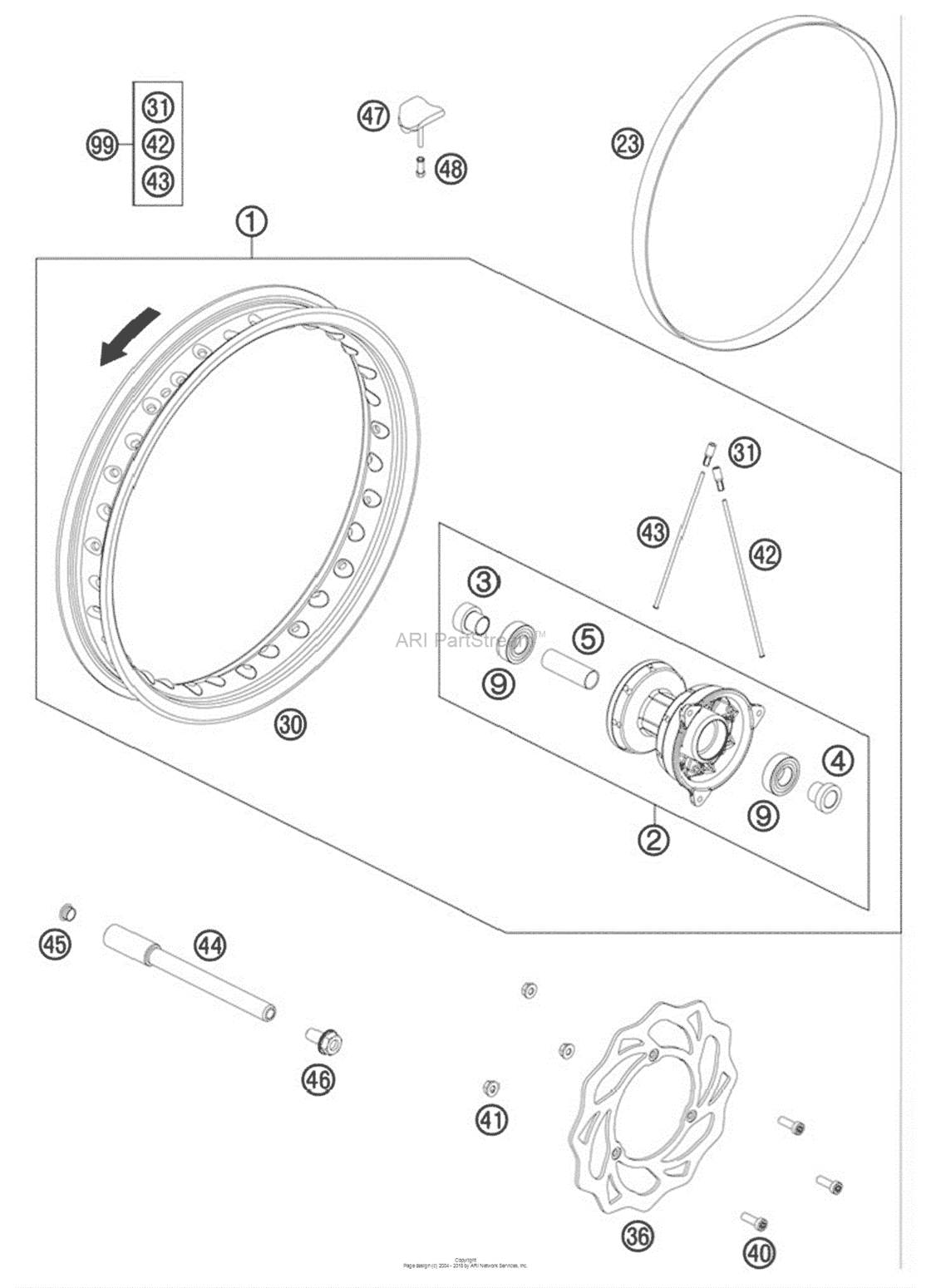

Front Wheel Diagram KTM 65 65 SX
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46209001144 Front Wheel Et 65Sx 20122012 |
46209001144 |
US $575.23 |
||
|
2
|
2
46209010044 Front Wheel Hub Cpl. 65Sx 20122012 |
46209010044 |
US $209.19 |
||
|
3
|
3
46009014000 Spacer bush l/s 65sx 0404 |
46009014000 |
US $19.87 |
||
|
4
|
4
46009013000 Spacer bush r/s 65sx 0404 |
46009013000 |
US $19.87 |
||
|
5
|
5
46009011100 Bearing spacer tube04 |
46009011100 |
US $16.32 |
||
|
9
|
9
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf04 |
0625060037 |
US $27.20 |
||
|
23
|
23
47010073000 Rim band 85 sx 14" 20032003 |
47010073000 |
US $6.49 |
||
|
30
|
30
4610907000030
Rim Front 14X1,6 Black 2009
2003 |
4610907000030 |
— | ||
| replacement | |||||
|
30
|
30
4620907000030 Rim front 14"x1,6 black 20092003 |
4620907000030 |
US $203.90 |
||
|
31
|
31
46210072000 Spoke Nipple Alu2003 |
46210072000 |
US $2.02 |
||
|
36
|
36
46209060100 Brake Disc Front 65 Sx 20122012 |
46209060100 |
US $117.15 |
||
|
40
|
40
014580060166 Cyl. screw din14580 m 6x162012 |
014580060166 |
US $5.08 |
||
|
41
|
41
56509064100 Self Locking Nut M6 10.92012 |
56509064100 |
US $1.04 |
||
|
42
|
42
46209071148 Spoke 3X148 C.165░ C.3,32012 |
46209071148 |
US $2.33 |
||
|
43
|
43
46209071150 Spoke 3X150 C.166░ C.2,62012 |
46209071150 |
US $2.33 |
||
|
44
|
44
45209081000
Axle Front
2012 |
45209081000 |
— | ||
| replacement | |||||
|
44
|
44
45209081100 Axle Front2012 |
45209081100 |
US $70.64 |
||
|
45
|
45
55009086000 Plug sfl132012 |
55009086000 |
US $1.39 |
||
|
46
|
46
49032011000 Hh collar screw m10x20 ws=17WS=17 |
49032011000 |
US $5.73 |
||
|
47
|
47
45110090000 Rim lock cpl. 20042004 |
45110090000 |
US $31.43 |
||
|
48
|
48
50310090050 Nut for wheel holder '96'96 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
48
|
48
77110090050 Nut For Wheel Holder'96 |
77110090050 |
US $3.60 |
||
|
99
|
99
00050000918 Spoke Kit Front 14In12 (As required) |
00050000918 |
US $129.15 |
||
