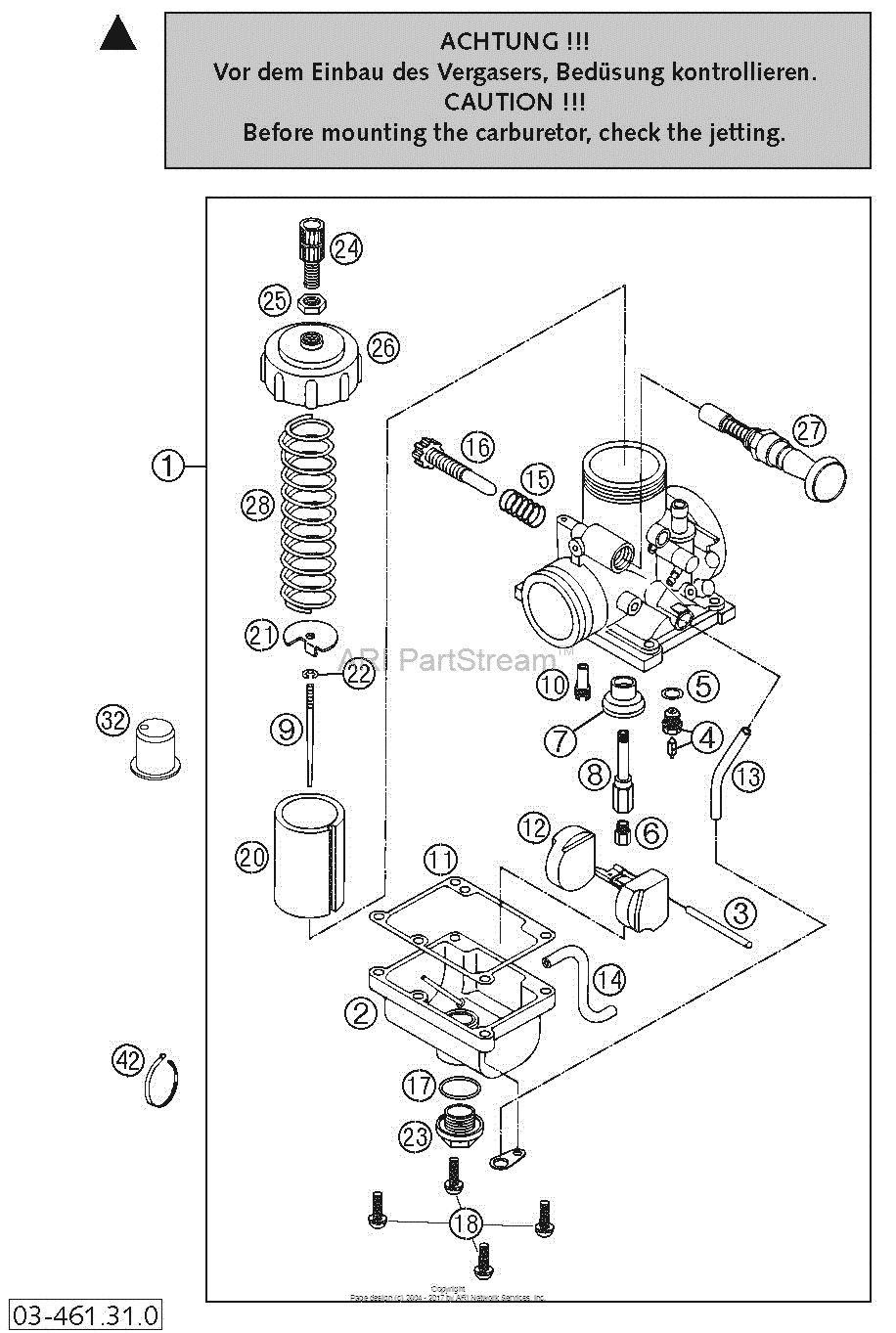

Carburetor Mikuni Vm24 Diagram KTM 65 65 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46031001044
Carburetor Mikuni Vm24-505 04
2000 |
46031001044 |
— | ||
| replacement | |||||
|
1
|
1
46131001000 Carburetor mikuni vm24-505 042000 |
46131001000 |
US $423.06 |
||
|
2
|
2
46031011000 Float body 5-1 vm242000 |
46031011000 |
US $27.69 |
||
|
3
|
3
45031008000
Pin 2,5x27
2000 |
45031008000 |
— | ||
|
4
|
4
46031020000 Needle valve cpl. vm242000 |
46031020000 |
US $49.98 |
||
|
5
|
5
46031018000 Gasket needle valve 9,1x12x0,52000 |
46031018000 |
US $1 |
||
|
6
|
6
45031023195 Main jet 195(As Required) |
45031023195 |
US $6.19 |
||
|
6
|
6
45031023200 Main jet 200(As Required) |
45031023200 |
US $6.19 |
||
|
6
|
6
45031023205 Main jet 205(As Required) |
45031023205 |
US $6.19 |
||
|
7
|
7
46031074000 Buffle(As Required) |
46031074000 |
US $2.70 |
||
|
8
|
8
46031021000 Needle jet n-8(As Required) |
46031021000 |
US $17.97 |
||
|
9
|
9
45031034200 Jet needle mikuni 5i14(As Required) |
45031034200 |
US $9.61 |
||
|
10
|
10
45031007030
Idling jet 30 mikuni
(As Required) |
45031007030 |
— | ||
|
11
|
11
45031010100
Gasket float bowl
(As Required) |
45031010100 |
— | ||
|
12
|
12
46031009000 Float vm24(As Required) |
46031009000 |
US $31.11 |
||
|
13
|
13
52031137001 Pvc-hose 3x5mm(As Required) |
52031137001 |
US $6 |
||
|
14
|
14
52031137001 Pvc-hose 3x5mm(As Required) |
52031137001 |
US $6 |
||
|
15
|
15
45031015100 Spring mikuni(As Required) |
45031015100 |
US $2.19 |
||
|
16
|
16
46031019000 Throttle valve screw m6x30(As Required) |
46031019000 |
US $3.79 |
||
|
17
|
17
46031043000 O-ring 17,5x1,4(As Required) |
46031043000 |
US $4.17 |
||
|
18
|
18
45031014000 Lentil head screw m4x14 (set)(As Required) |
45031014000 |
US $6.70 |
||
|
20
|
20
46031035000 Throttle valve 2.0(As Required) |
46031035000 |
US $58.41 |
||
|
21
|
21
46031032000
Holding washer
(As Required) |
46031032000 |
— | ||
|
22
|
22
45031045000 Spring(As Required) |
45031045000 |
US $2.28 |
||
|
23
|
23
46031014000 Plug screw m16 ws=17WS=17 |
46031014000 |
US $19.26 |
||
|
24
|
24
57031525000 Adjustment screw m6x0,75WS=17 |
57031525000 |
US $4.47 |
||
|
25
|
25
52031126000 Hexagon nut m 6x0,75 din0439WS=17 |
52031126000 |
US $8.35 |
||
|
26
|
26
46031027000 Carburetor cover vm24WS=17 |
46031027000 |
US $21.62 |
||
|
27
|
27
46031048044 Cold starter knob cpl. vm24WS=17 |
46031048044 |
US $22.46 |
||
|
28
|
28
46031030000
Throttle valve spring vm24
WS=17 |
46031030000 |
— | ||
|
32
|
32
46131090000 Weight f. thrott.valve 65sx 0202 |
46131090000 |
US $12.95 |
||
|
42
|
42
44011076100 Cable tie 100/2,5mm black(As Required) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
42
|
42
44011076140 Cable tie 140/2,5mm black(As Required) |
44011076140 |
US $0.29 |
||
