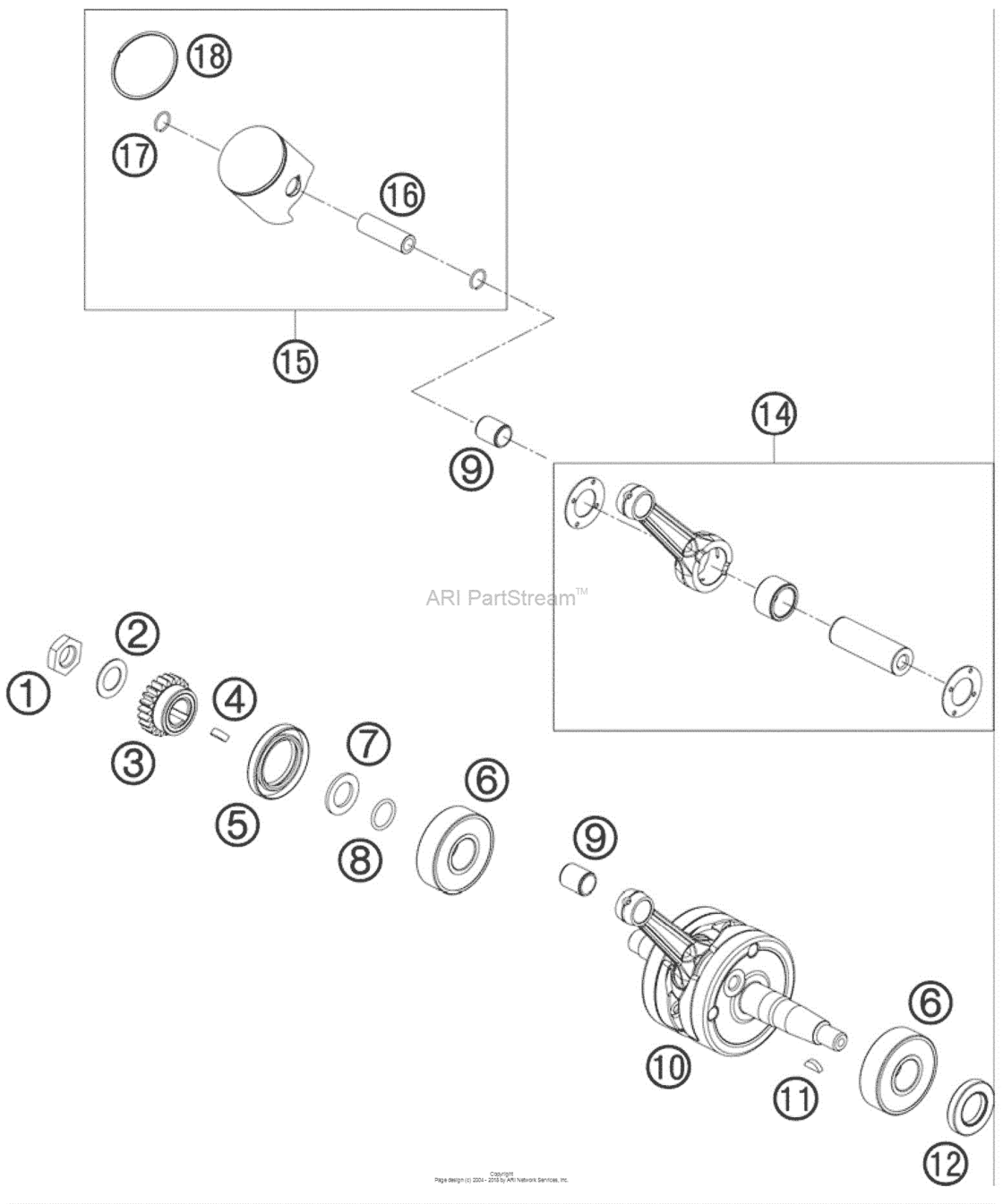

Crankshaft, Piston Diagram KTM 65 65 SX
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46030029000 Hh nut 14x1,25x7 ws=2203 (As Required) |
46030029000 |
US $9.57 |
||
|
2
|
2
83061015000 Stop disk 15,2x25,7x103 (As Required) |
83061015000 |
US $2.16 |
||
|
3
|
3
46232023023 Primary pinion loose03 (As Required) |
46232023023 |
US $102.77 |
||
|
4
|
4
888040050
Woodruff Key Din6888 4X5X13
03 (As Required) |
888040050 |
— | ||
|
5
|
5
760304772
Sh.seal Ring 30X47X7 Bsl Viton
03 (As Required) |
760304772 |
— | ||
|
6
|
6
46030082200 Grooved ball bear.20x52x15 ntn03 (As Required) |
46030082200 |
US $20.71 |
||
|
7
|
7
46230016000 Spacer washer - crankshaft03 (As Required) |
46230016000 |
US $5 |
||
|
8
|
8
770160021
O-Ring
03 (As Required) |
770160021 |
— | ||
|
9
|
9
46030034000 Needle bear.pistonpin 12x15x1703 (As Required) |
46030034000 |
US $13.94 |
||
|
10
|
10
46230018000 Crankshaft cpl.03 (As Required) |
46230018000 |
US $554.15 |
||
|
11
|
11
888030050
Woodruff Key Din6888-3X5X13
03 (As Required) |
888030050 |
— | ||
|
12
|
12
47030076100 Seal shaft ring 20x35x6 btsl03 (As Required) |
47030076100 |
US $19.23 |
||
|
14
|
14
46230015000 Connect. rod repair set03 (As Required) |
46230015000 |
US $291.75 |
||
|
15
|
15
46230007000I
Piston cpl. i
(As required) |
46230007000I |
— | ||
|
15
|
15
46230007000II Piston cpl. ii(As required) |
46230007000II |
US $156.40 |
||
|
16
|
16
46030033000 Piston pin 12x38(As required) |
46030033000 |
US $8.94 |
||
|
17
|
17
45230074000 Circlip 0909 |
45230074000 |
US $1.28 |
||
|
18
|
18
46030030500 Piston ring 45mm 65ccm09 |
46030030500 |
US $48.47 |
