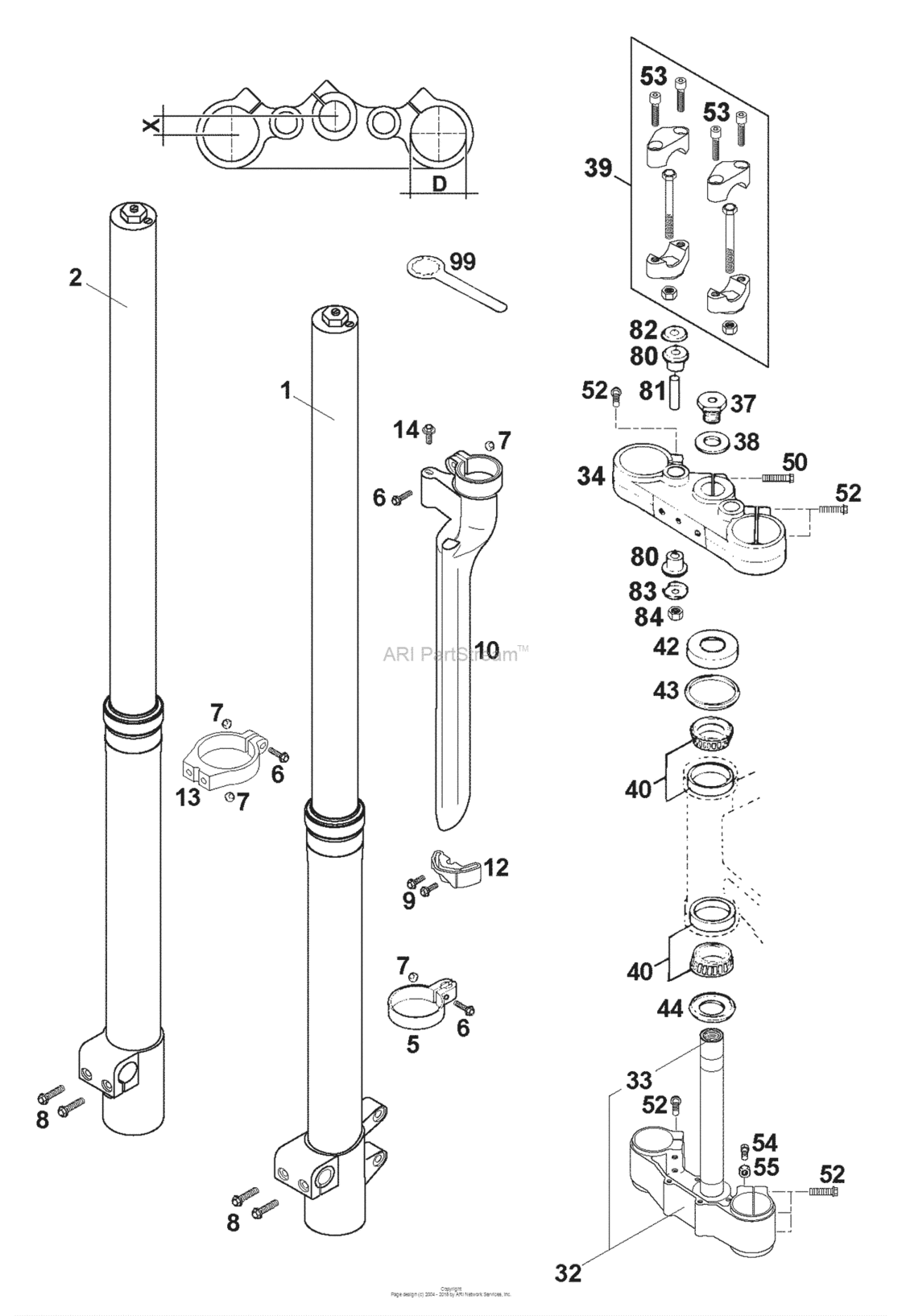

Front Fork Wp Extreme Diagram KTM 660 660 LC4 Rallye
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
50301093000
Fork protector r/s black '97
LC4'94 |
50301093000 |
— | ||
|
|
5460139000030 Fork protection guide r/s '97LC4'94 |
5460139000030 |
US $4.45 |
||
|
1
|
1
0918T778LS
Fork Leg L/s Wp In.0918T778In. '99
LC4'94 |
0918T778LS |
— | ||
|
2
|
2
0918T778RS
Fork Leg R/s Wp In.0918T778In. '99
LC4'94 |
0918T778RS |
— | ||
|
5
|
5
50301070000 Sp.cable Guide Marz.50,wp50'97LC4'94 |
50301070000 |
US $3.11 |
||
|
6
|
6
0015050203
Hh Collar Screw M5X20 Tx30
LC4'94 |
0015050203 |
— | ||
| replacement | |||||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30LC4'94 |
0025050206 |
US $1.33 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5LC4'94 |
0985050003 |
US $3.26 |
||
|
8
|
8
0015080253
H H Collar Screw
LC4'94 |
0015080253 |
— | ||
| replacement | |||||
|
8
|
8
0025080256 Hh Collar Screw M8X25 Tx40LC4'94 |
0025080256 |
US $4.10 |
||
|
9
|
9
0015050163 Hh Collar Screw M 5X16 Ws=8LC4'94 |
0015050163 |
US $1.31 |
||
|
10
|
10
50301092000
Fork protector l/s black '97
LC4'94 |
50301092000 |
— | ||
|
12
|
12
5460129000030
Fork protection guide l/s '97
LC4'94 |
5460129000030 |
— | ||
|
13
|
13
50301090250
Clamp protector guide '98
LC4'94 |
50301090250 |
— | ||
|
14
|
14
0014060153
Hh Collar Screw M6X15 Tx30
LC4'94 |
0014060153 |
— | ||
| replacement | |||||
|
14
|
14
0024060156 Hh collar screw m6x15 tx30LC4'94 |
0024060156 |
US $3.96 |
||
|
32
|
32
50301032116 Bot.triple Clamp X=16Mm/d=50MmLC4'94 |
50301032116 |
US $193.99 |
||
| replacement | |||||
|
32
|
32
50301032016 Bot.triple clamp x=16mm/d=50mmLC4'94 |
50301032016 |
US $189.81 |
||
|
33
|
33
50101033100 Fork Tube L=244LC4'94 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244LC4'94 |
54801133000 |
US $78.15 |
||
|
34
|
34
58301234016
Top triple clamp x=16mm/d=50mm
LC4'94 |
58301234016 |
— | ||
|
37
|
37
56401043000 Hh screw m20x1,5LC4'94 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27LC4'94 |
50301036000 |
US $12.65 |
||
|
38
|
38
56401044000
Washer 21x38x3
LC4'94 |
56401044000 |
— | ||
|
39
|
39
58402001050
Supportkit f.handl.duke,adv'97
LC4'94 |
58402001050 |
— | ||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 06LC4'94 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 06LC4'94 |
54201081100 |
US $53.18 |
||
|
42
|
42
54201086000 Steering Head CoverLC4'94 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
42
|
42
78101086000 Steering Head CoverLC4'94 |
78101086000 |
US $5.08 |
||
|
43
|
43
54601184000 Stearing head gasket topLC4'94 |
54601184000 |
US $7.74 |
||
|
44
|
44
54601084100 O-Ring Support W. Sealing LipLC4'94 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
44
|
44
77701084000 O-Ring Support W. Sealing LipLC4'94 |
77701084000 |
US $21.15 |
||
|
50
|
50
0015080403
Hh Collar Screw M8X40 Tx40
LC4'94 |
0015080403 |
— | ||
| replacement | |||||
|
50
|
50
0025080406 Hh collar screw m8x40 tx40LC4'94 |
0025080406 |
US $2.62 |
||
|
52
|
52
0015080303
Hh Collar Screw M8X30 Tx40
LC4'94 |
0015080303 |
— | ||
| replacement | |||||
|
52
|
52
0025080306 Hh collar screw m8x30 tx40LC4'94 |
0025080306 |
US $3.89 |
||
|
53
|
53
0912080353 Ah screw din0912-m 8x35LC4'94 |
0912080353 |
US $1.65 |
||
|
54
|
54
0933080253 Hh Screw Din0933-M 8X25LC4'94 |
0933080253 |
US $1.24 |
||
|
55
|
55
0934080003 Hexagon Nut Din0934-M 8LC4'94 |
0934080003 |
US $3.26 |
||
|
80
|
80
56401040000 Rubber bushingLC4'94 |
56401040000 |
US $6.73 |
||
|
81
|
81
56401041100 Spacer tube 10,2x12x44LC4'94 |
56401041100 |
US $5.25 |
||
|
82
|
82
56401042000 Washer 10,5x32x2LC4'94 |
56401042000 |
US $4.71 |
||
|
83
|
83
56401142000 Washer 10,5x31LC4'94 |
56401142000 |
US $3.49 |
||
|
84
|
84
0985100003 Self locking nut din0985-m10LC4'94 |
0985100003 |
US $1.22 |
||
|
99
|
99
54212035000
Ring wrench ws=32
LC4'94 |
54212035000 |
— | ||
