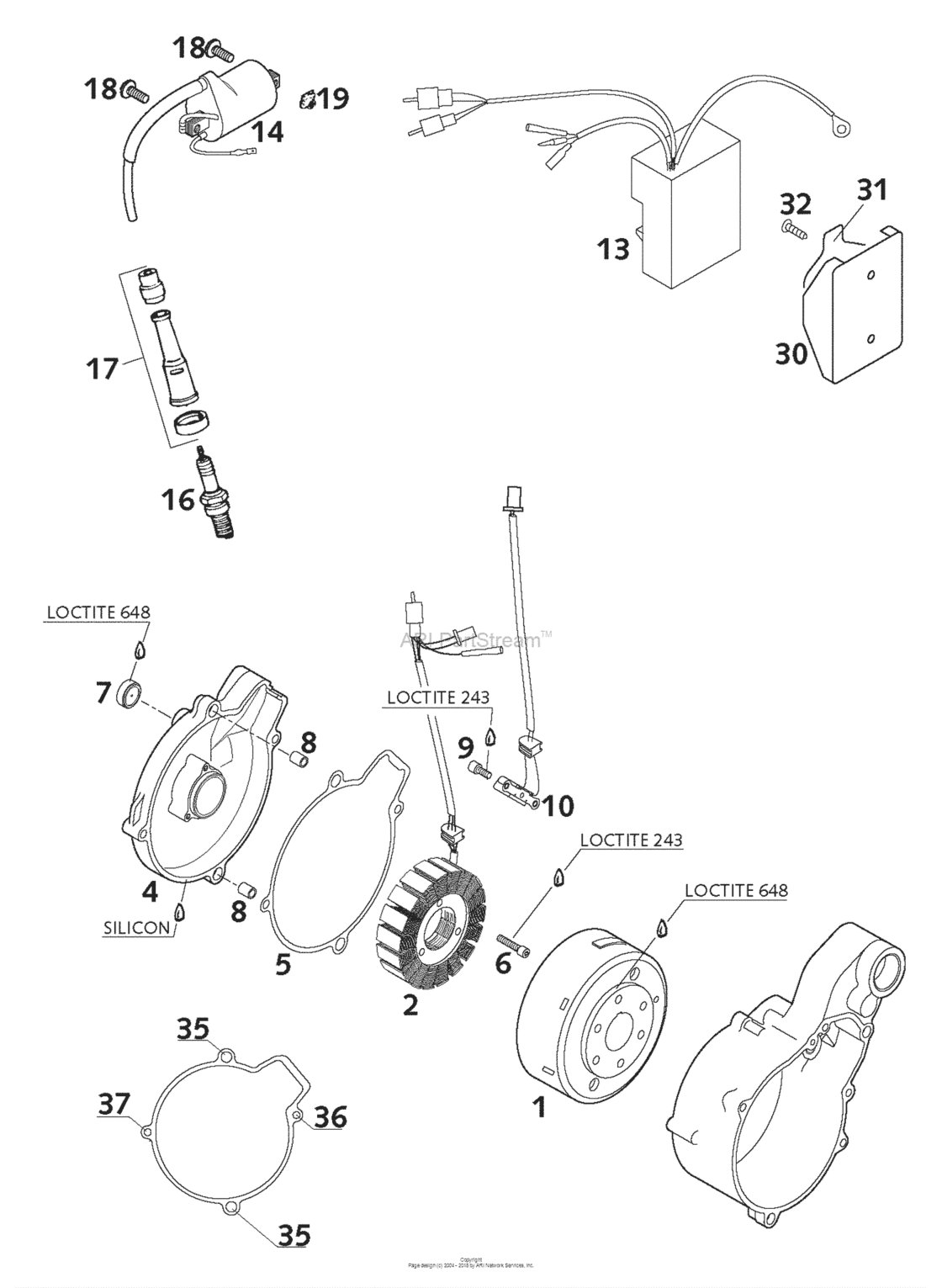

Ignition System Kokusan Diagram KTM 660 660 LC4 Rallye
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 LC4 Rallye
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58439005100 Flywheel kokusan gp9128 '97FOR STARTRELAY |
58439005100 |
US $372.66 |
||
|
2
|
2
58439004000 Stator kokusan loose '96FOR STARTRELAY |
58439004000 |
US $201.50 |
||
|
4
|
4
5843000214429 Ignition Cover Cpl. Grey 03FOR STARTRELAY |
5843000214429 |
US $97.21 |
||
| replacement | |||||
|
4
|
4
5843000214423 Ignition cover cpl. grey 03FOR STARTRELAY |
5843000214423 |
US $90.24 |
||
|
5
|
5
58430040000 Ignition cover gasket '96FOR STARTRELAY |
58430040000 |
US $11.68 |
||
|
6
|
6
0912050253 Ah screw din0912-m 5x25FOR STARTRELAY |
0912050253 |
US $0.61 |
||
|
7
|
7
58430095000
Inspection glass gw 20-7
FOR STARTRELAY |
58430095000 |
— | ||
| replacement | |||||
|
7
|
7
58430095100 Inspect.glass Gw 20-7 MineralFOR STARTRELAY |
58430095100 |
US $25.21 |
||
|
8
|
8
49030090000 Dowel 9,8 x 7 x 10FOR STARTRELAY |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
8
|
8
49030090100 Dowel 9,8 X7X10FOR STARTRELAY |
49030090100 |
US $2.60 |
||
|
9
|
9
0912050083 Ah screw din 912 m 5x8FOR STARTRELAY |
0912050083 |
US $0.58 |
||
|
10
|
10
58439034000 Pulser coilFOR STARTRELAY |
58439034000 |
US $90.53 |
||
|
13
|
13
58439031200
Cdi 640 Duke/sm Cpl
FOR STARTRELAY |
58439031200 |
— | ||
| replacement | |||||
|
13
|
13
58639031644
Cdi 640 duke/sm cpl.
FOR STARTRELAY |
58639031644 |
— | ||
|
13
|
13
58439031300
Digitalb.cdi cb7477 80roz 20
FOR STARTRELAY |
58439031300 |
— | ||
|
14
|
14
58439006000 Ignitioncoil ig3826 kokusan'96FOR STARTRELAY |
58439006000 |
US $83.22 |
||
|
16
|
16
58439093009 Spark plug ngk dpr8ea-9FOR STARTRELAY |
58439093009 |
US $8.82 |
||
|
17
|
17
58031010000
Spark plug connect.sd 05fg ngk
FOR STARTRELAY |
58031010000 |
— | ||
|
18
|
18
0014060153
Hh Collar Screw M6X15 Tx30
FOR STARTRELAY |
0014060153 |
— | ||
| replacement | |||||
|
18
|
18
0024060156 Hh collar screw m6x15 tx30FOR STARTRELAY |
0024060156 |
US $3.96 |
||
|
19
|
19
50235033300
Snap-nut holder m6 kp142
FOR STARTRELAY |
50235033300 |
— | ||
| replacement | |||||
|
19
|
19
54603048100 Range Change Metal Nut M6FOR STARTRELAY |
54603048100 |
US $5.27 |
||
|
30
|
30
58439030100 Rubber bracket for cdi '97FOR STARTRELAY |
58439030100 |
US $7.33 |
||
|
31
|
31
58439030150
Support for rubber bracket '97
FOR STARTRELAY |
58439030150 |
— | ||
|
32
|
32
0016055163 Screw For Plastic D=5X18FOR STARTRELAY |
0016055163 |
US $1.21 |
||
| replacement | |||||
|
32
|
32
0017050181 Screw for plastic d=5x18FOR STARTRELAY |
0017050181 |
US $0.61 |
||
|
35
|
35
0015060303
Hh Collar Screw M6X30 Tx30
FOR STARTRELAY |
0015060303 |
— | ||
| replacement | |||||
|
35
|
35
0025060306 Hh collar screw m6x30 tx30FOR STARTRELAY |
0025060306 |
US $3.96 |
||
|
36
|
36
0015060803 Hh collar screw m 6x80 ws=8FOR STARTRELAY |
0015060803 |
US $1.51 |
||
| replacement | |||||
|
36
|
36
0025060806 Hh Collar Screw M6X80 Tx30FOR STARTRELAY |
0025060806 |
US $1.41 |
||
|
37
|
37
0015060253
Hh Collar Screw M6X25 Tx30
FOR STARTRELAY |
0015060253 |
— | ||
| replacement | |||||
|
37
|
37
0025060256 Hh collar screw m6x25 tx30FOR STARTRELAY |
0025060256 |
US $2.45 |
||
