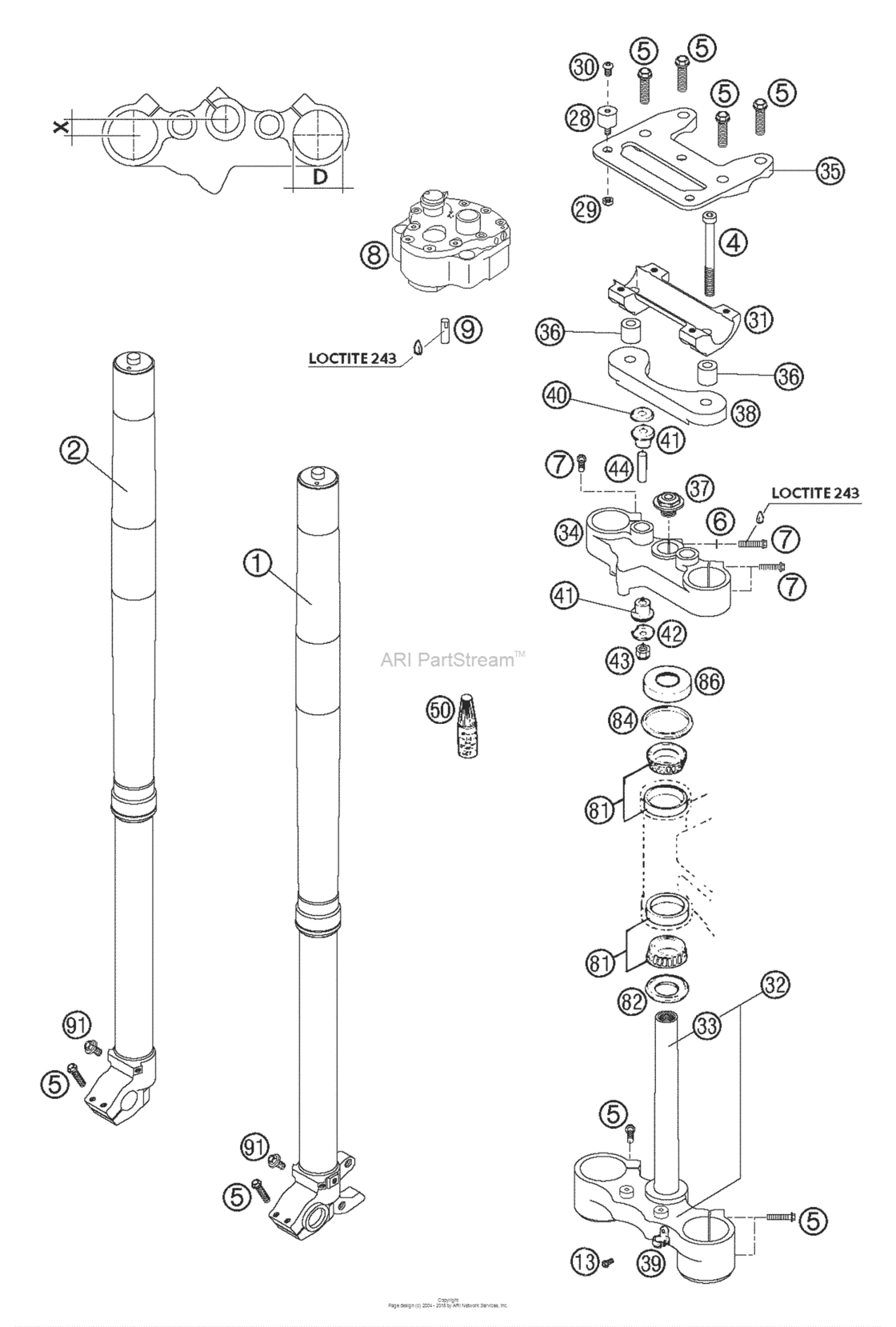

Front Fork Wp Usd 48 Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1418W712LS
Fork Leg L/s Wp48 Rallye 2002
IGNITON INDICATOR LIGHT RED |
1418W712LS |
— | ||
|
2
|
2
1418W712RS
Fork Leg R/s Wp48 Rallye 2002
IGNITON INDICATOR LIGHT RED |
1418W712RS |
— | ||
|
4
|
4
0984101006 Ah screw din6912-m10x100IGNITON INDICATOR LIGHT RED |
0984101006 |
US $14.13 |
||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
IGNITON INDICATOR LIGHT RED |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40IGNITON INDICATOR LIGHT RED |
0025080306 |
US $3.89 |
||
|
6
|
6
50233041100 Pair of washers m10 nordlockIGNITON INDICATOR LIGHT RED |
50233041100 |
US $3.45 |
||
|
7
|
7
0015080353 Hh Collar Screw M 8X35 Ws=10IGNITON INDICATOR LIGHT RED |
0015080353 |
US $7.12 |
||
|
8
|
8
58512050000
Steering Stabili.cpl.rallye 01
IGNITON INDICATOR LIGHT RED |
58512050000 |
— | ||
|
9
|
9
58502006000
Pin F.steering Stabilizer 02
IGNITON INDICATOR LIGHT RED |
58502006000 |
— | ||
|
13
|
13
0009050103
Special screw m 5,0x10
IGNITON INDICATOR LIGHT RED |
0009050103 |
— | ||
| replacement | |||||
|
13
|
13
0009050106 Ejot Spiral Screw Sf M5X10-KIGNITON INDICATOR LIGHT RED |
0009050106 |
US $2.60 |
||
|
28
|
28
43205062100 Rubber grommet 20x15-m6x10 (1)IGNITON INDICATOR LIGHT RED |
43205062100 |
US $24.07 |
||
|
29
|
29
0985060003 Self Lock. Nut Din0985-M 6IGNITON INDICATOR LIGHT RED |
0985060003 |
US $2.60 |
||
|
30
|
30
0902060083 Ah oval screw iso 7380 m 6x8IGNITON INDICATOR LIGHT RED |
0902060083 |
US $0.66 |
||
|
31
|
31
59001039100 Handlebar Support 28Mm Sc'99IGNITON INDICATOR LIGHT RED |
59001039100 |
US $64.89 |
||
|
32
|
32
59001032120
Bot.fork Plate Cpl
IGNITON INDICATOR LIGHT RED |
59001032120 |
— | ||
| replacement | |||||
|
32
|
32
59001232020 Bot.fork plate cpl.IGNITON INDICATOR LIGHT RED |
59001232020 |
US $235.99 |
||
|
33
|
33
50101033100 Fork Tube L=244IGNITON INDICATOR LIGHT RED |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244IGNITON INDICATOR LIGHT RED |
54801133000 |
US $78.15 |
||
|
34
|
34
58501034020 Top triple clamp rallye 2001IGNITON INDICATOR LIGHT RED |
58501034020 |
US $233.26 |
||
|
35
|
35
58502003000
Gps Halterung Milled 2001
IGNITON INDICATOR LIGHT RED |
58502003000 |
— | ||
|
36
|
36
58502005051 Handlebar bushing 17mm 01IGNITON INDICATOR LIGHT RED |
58502005051 |
US $18.31 |
||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27IGNITON INDICATOR LIGHT RED |
50301036000 |
US $12.65 |
||
|
38
|
38
58502009000 Hold.f.steering shock absorberIGNITON INDICATOR LIGHT RED |
58502009000 |
US $76.45 |
||
|
39
|
39
54611076100 Retain.clamp For Brake Hose'96IGNITON INDICATOR LIGHT RED |
54611076100 |
US $1.09 |
||
|
40
|
40
56401042000 Washer 10,5x32x2IGNITON INDICATOR LIGHT RED |
56401042000 |
US $4.71 |
||
|
41
|
41
56401040000 Rubber bushingIGNITON INDICATOR LIGHT RED |
56401040000 |
US $6.73 |
||
|
42
|
42
56401142000 Washer 10,5x31IGNITON INDICATOR LIGHT RED |
56401142000 |
US $3.49 |
||
|
43
|
43
0985100003 Self locking nut din0985-m10IGNITON INDICATOR LIGHT RED |
0985100003 |
US $1.22 |
||
|
44
|
44
56401041100 Spacer tube 10,2x12x44IGNITON INDICATOR LIGHT RED |
56401041100 |
US $5.25 |
||
|
50
|
50
6899785 Loctite 243 Blue 6CcmIGNITON INDICATOR LIGHT RED |
6899785 |
US $40.61 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06IGNITON INDICATOR LIGHT RED |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06IGNITON INDICATOR LIGHT RED |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing LipIGNITON INDICATOR LIGHT RED |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing LipIGNITON INDICATOR LIGHT RED |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket topIGNITON INDICATOR LIGHT RED |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head CoverIGNITON INDICATOR LIGHT RED |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverIGNITON INDICATOR LIGHT RED |
78101086000 |
US $5.08 |
||
|
91
|
91
0014060103
Hh Collar Screw M6X10 Tx30
IGNITON INDICATOR LIGHT RED |
0014060103 |
— | ||
| replacement | |||||
|
91
|
91
0024060106 Hh collar screw m6x10 tx30IGNITON INDICATOR LIGHT RED |
0024060106 |
US $4.35 |
||
