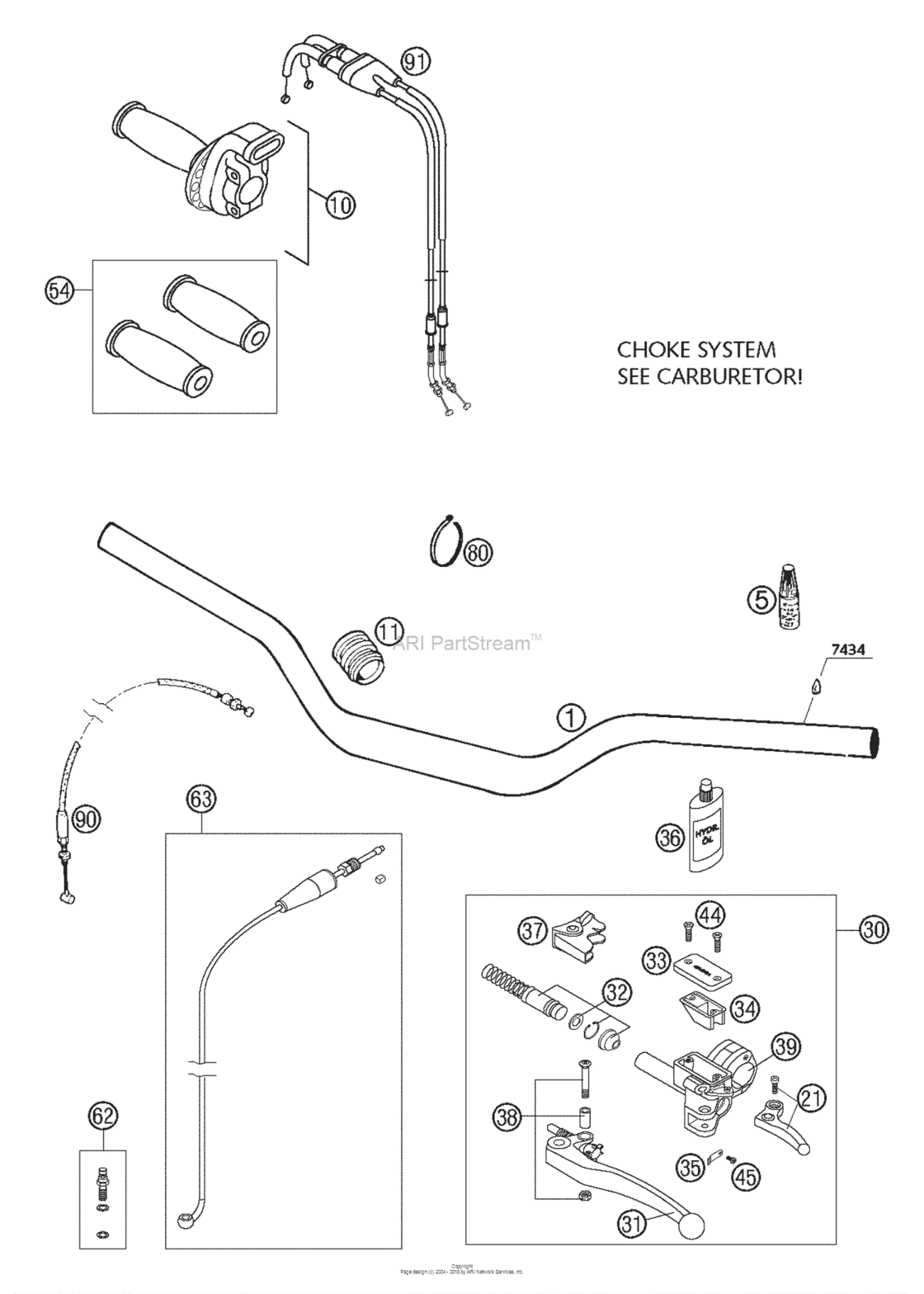

Handlebar, Controls Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58302001300 Alu-handlebar sx,sc,advent.'97IGNITON INDICATOR LIGHT RED |
58302001300 |
US $167.13 |
||
|
5
|
5
6899792
Glue Cyanacrylat 7434
IGNITON INDICATOR LIGHT RED |
6899792 |
— | ||
|
10
|
10
59002010200
Throttle grip cpl. racing 2000
IGNITON INDICATOR LIGHT RED |
59002010200 |
— | ||
| replacement | |||||
|
10
|
10
78102010000 Throttle Grip CplIGNITON INDICATOR LIGHT RED |
78102010000 |
US $71.72 |
||
|
11
|
11
54605057000 Rubber sleeve d=21mm/23mm '93IGNITON INDICATOR LIGHT RED |
54605057000 |
US $23.49 |
||
|
21
|
21
59002047000 Lever Cpl. Racing 2000IGNITON INDICATOR LIGHT RED |
59002047000 |
US $23.60 |
||
|
30
|
30
59002030000 Master Cylinder Cpl. Racing 03IGNITON INDICATOR LIGHT RED |
59002030000 |
US $349.78 |
||
| replacement | |||||
|
30
|
30
59002030100 Master Cylinder Cpl. Racing 03IGNITON INDICATOR LIGHT RED |
59002030100 |
US $345.81 |
||
|
31
|
31
50302031000 Clutch Lever Long Cpl. 2003IGNITON INDICATOR LIGHT RED |
50302031000 |
US $51.27 |
||
| replacement | |||||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 2003IGNITON INDICATOR LIGHT RED |
59002031000 |
US $42.99 |
||
|
31
|
31
50302031100 Clutch Lever Short Cpl. 2003IGNITON INDICATOR LIGHT RED |
50302031100 |
US $50.71 |
||
| replacement | |||||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 2003IGNITON INDICATOR LIGHT RED |
54602031000 |
US $42.99 |
||
|
32
|
32
59002032000 Rep.kit Piston 9,5Mm Rac. 2000IGNITON INDICATOR LIGHT RED |
59002032000 |
US $65.01 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 2000IGNITON INDICATOR LIGHT RED |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98IGNITON INDICATOR LIGHT RED |
50302034000 |
US $16.18 |
||
|
35
|
35
50302035000
Spring plate for lever '98
IGNITON INDICATOR LIGHT RED |
50302035000 |
— | ||
|
36
|
36
50302036000
Oil For Hyd. Clutch 100 Ml
IGNITON INDICATOR LIGHT RED |
50302036000 |
— | ||
| replacement | |||||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 MlIGNITON INDICATOR LIGHT RED |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98IGNITON INDICATOR LIGHT RED |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98IGNITON INDICATOR LIGHT RED |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000IGNITON INDICATOR LIGHT RED |
50302030150 |
US $34.46 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12IGNITON INDICATOR LIGHT RED |
0965040123 |
US $0.56 |
||
|
45
|
45
0984030063
Ah screw din7984-m 3x 6
IGNITON INDICATOR LIGHT RED |
0984030063 |
— | ||
|
54
|
54
58502039044 Rubber grips per grip 96-05IGNITON INDICATOR LIGHT RED |
58502039044 |
US $25.28 |
||
|
62
|
62
58532062000
Hollow Screw F.hydr.clutch 01
IGNITON INDICATOR LIGHT RED |
58532062000 |
— | ||
|
63
|
63
58532063000
Pipe Kit For Hydr.clutch 01
IGNITON INDICATOR LIGHT RED |
58532063000 |
— | ||
|
80
|
80
44011076200 Cable tie 200/3,6mm blackIGNITON INDICATOR LIGHT RED |
44011076200 |
US $0.39 |
||
|
90
|
90
58302094000 Decompression cable lc4 '93IGNITON INDICATOR LIGHT RED |
58302094000 |
US $37.81 |
||
|
91
|
91
59002091200 Thr.cable"open-close" rac.2000CONSTRUCTION FOR KNEE PIECE |
59002091200 |
US $67.01 |
||
