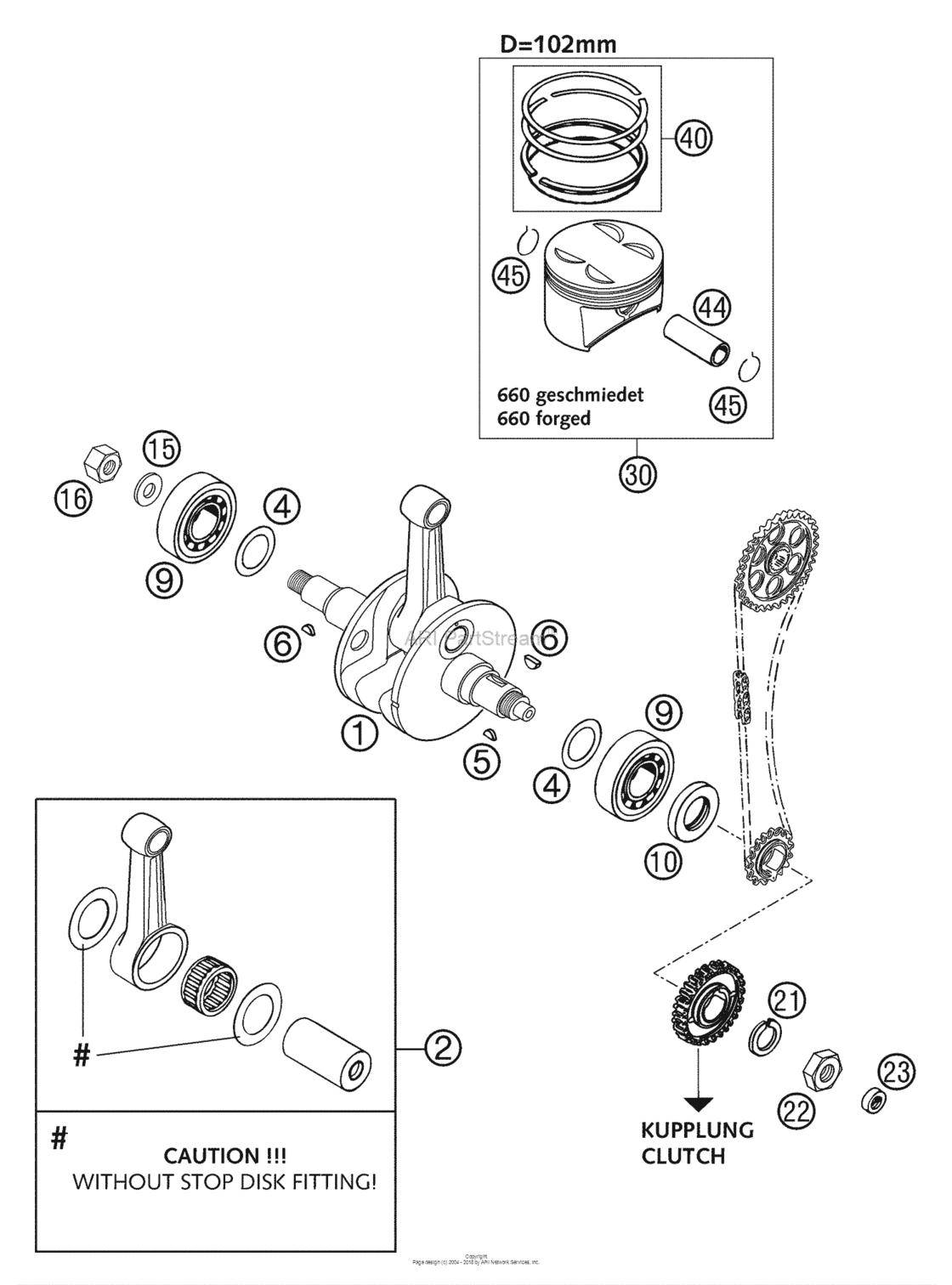

Crankshaft, Piston Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58530018300 Crankshaft cpl. rallye 200294 |
58530018300 |
US $1,093.29 |
||
|
2
|
2
58530015044
Connecting Rod Repair Set Lc4 640/660 Ccm L=141,5Mm
94 |
58530015044 |
— | ||
|
4
|
4
56530081000 Shim washer 36x48x0,1094 |
56530081000 |
US $4.10 |
||
|
4
|
4
56530081100 Shim washer 36x48x0,1594 |
56530081100 |
US $1.28 |
||
|
4
|
4
56530081300 Shim washer 36x48x0,3094 |
56530081300 |
US $1.28 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X1394 |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 Harded94 |
6946005 |
US $0.92 |
||
|
9
|
9
56530123000 Cyl.roller bear. nj 207 ecp c394 |
56530123000 |
US $92.29 |
||
|
10
|
10
0760304071
Shaft Seal Ring 30X40X7 Bsl
94 |
0760304071 |
— | ||
|
15
|
15
58330095000 Steel washer 16 x 30 x 394 |
58330095000 |
US $3.67 |
||
|
16
|
16
58430028000
Hex nut m16x1,25 l/s
94 |
58430028000 |
— | ||
|
21
|
21
58030019000 Locking ring vsk 2094 |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,594 |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 B94 |
0760122270 |
US $15.86 |
||
|
30
|
30
58530007200I
Piston D=102Mm Rallye 01
94 |
58530007200I |
— | ||
| replacement | |||||
|
30
|
30
58530007200
Piston d=102mm rallye 2001
94 |
58530007200 |
— | ||
|
30
|
30
58530007200II
Piston D=102Mm Rallye 01
94 |
58530007200II |
— | ||
| replacement | |||||
|
30
|
30
58530007200
Piston d=102mm rallye 2001
94 |
58530007200 |
— | ||
|
40
|
40
58530031144
Pistonring Set Elko 660 Rallye
94 |
58530031144 |
— | ||
|
44
|
44
58330833000 Piston pin 22 x 13 x 6094 |
58330833000 |
US $47.82 |
||
|
45
|
45
58430074000 Circlip 22 x 1,694 |
58430074000 |
US $9.45 |
||
