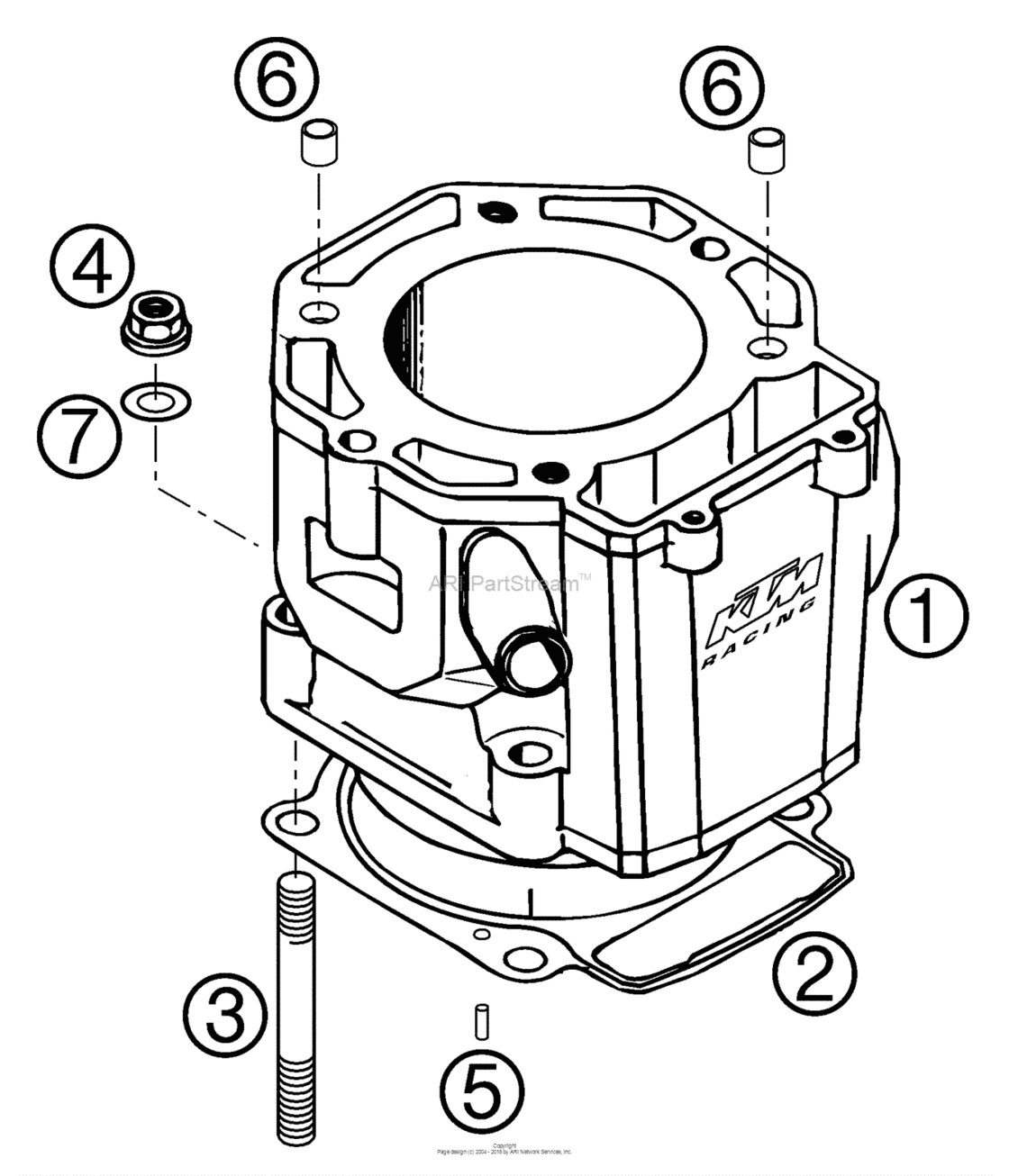

Cylinder Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58530005200
Cylinder 102Mm 660 Rallye 2001
94 |
58530005200 |
— | ||
|
2
|
2
58530035000
Cyl. Base Gasket 0,33Mm 2001
94 |
58530035000 |
— | ||
|
3
|
3
58530043000
Stud M10X75 2001
94 |
58530043000 |
— | ||
|
4
|
4
0331100003 Collar nut din6923-m10 ws=1594 |
0331100003 |
US $2.02 |
||
|
5
|
5
0402040980 Needle Rol.din5402 Nrb 4X9,894 |
0402040980 |
US $1.77 |
||
|
6
|
6
58530014000 Dowel 10,2x12,5x10 200194 |
58530014000 |
US $7.97 |
||
| replacement | |||||
|
6
|
6
58530014100 Dowel Bushing 10,2X12,5X1094 |
58530014100 |
US $2.57 |
||
|
7
|
7
0125100003 Washer Din0125-A10,594 |
0125100003 |
US $1.19 |
||
