Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 58536020200 Cylinderhead Cpl. R 12 2001 94	58536020200	—
3	3 58036065100 Cu-seal ring 6 x 10 x 2 94	58036065100	US $0.90
4	4 58036152600 Valve cover front '99 94	58036152600	US $33.58
5	5 58036052000 Valve Cover Rear 94	58036052000	US $43.76
	replacement
5	5 58036052200 Valve cover rear 94	58036052200	US $14.33
6	6 58036053000 Valve cover gasket 94	58036053000	US $4.71
7	7 58530036100 Cylinder Head Gasket D=102 01 94	58530036100	—
8	8 0603061001 Cu-Seal Ring Din7603-6X10X1 94	0603061001	US $2.64
10	10 0912060353 Ah Screw Din0912-M 6X35 94	0912060353	US $2.09
11	11 0912060253 Ah Screw Din0912-M 6X25 94	0912060253	US $1.79
12	12 49030028000 Collar nut m8 94	49030028000	US $2.09
13	13 54330043000 Stud din0835-m 8x40 94	54330043000	US $3.79
14	14 58036098000 Cu-seal ring 10 x 20 x 1 94	58036098000	US $1.22
15	15 42011252000 Temperature switch vdo 94	42011252000	—
16	16 0603070122 Cu-seal ring din7603- 7x12x2 94	0603070122	US $1.21
17	17 0993012000 Circlip Din7993-Rw12 94	0993012000	US $2.11
18	18 58036026600 Valve Guide Intake 94	58036026600	US $16.85
	replacement
18	18 58036026644 Valve guide intake cpl. 94	58036026644	US $14.43
19	19 58036126600 Valve Guide Exhaus 94	58036126600	US $16.46
	replacement
19	19 58036126644 Valve guide exhaust cpl. 94	58036126644	US $14.43
20	20 58536065000 Plug Cover 2001 94	58536065000	—
21	21 0770047015 O-ring 47,00x1,50 nbr 70 94	0770047015	US $1.12
22	22 0770049025 O-ring 49,00x2,50 nbr 94	0770049025	US $2.98
23	23 58036099100 Collar screw m10x80 ws=13 10.9 94	58036099100	US $8.87
24	24 58530090000 Dowel bushing 9,8x7,2x10 94	58530090000	US $1.28
30	30 58536040000 Exhaust flange r/s rallye 2001 94	58536040000	US $58.09
31	31 58536140000 Exhaust flange l/s rallye 2001 94	58536140000	US $60.59
32	32 58036041000 Exhaust flange gasket 94	58036041000	US $4.71
36	36 58336020090 Vacuum connection m 6x1 94	58336020090	US $5.61
39	39 58536042000 Intake flange d=43mm 2001 94	58536042000	—
41	41 58536043000 Intake Flange Gasket 2001 94	58536043000	—
42	42 58536044000 Intake boot rallye 2001 94	58536044000	US $42.67
45	45 59030061000 Clamp d=56mm b=9mm m4x25 94	59030061000	US $4.45
49	49 0912060163 Ah Screw Din0912-M 6X16 94	0912060163	US $1.29
50	50 0991060203 Flat Head Din7991-M 6X20 94	0991060203	US $2.99
	replacement
50	50 0991060202 Flat head din7991-m 6x20 94	0991060202	US $3.26
51	51 0912060203 Ah Screw Din0912-M 6X20 94	0912060203	US $1.04
52	52 0912060253 Ah Screw Din0912-M 6X25 94	0912060253	US $1.79
53	53 51005074000 Retaining plate 94	51005074000	US $2.11
54	54 0912070553 Ah screw din0912-m 7x55 12.9 94	0912070553	—
55	55 0912070603 Ah screw din0912-m 7x60 12.9 94	0912070603	US $7.72
56	56 0912060653 Ah Screw Din0912-M 6X65 94	0912060653	US $1.84
57	57 0912060703 Ah screw din0912-m 6x70 94	0912060703	US $1.79
60	60 0137060003 Spring Washer Din0137-B 6 94	0137060003	US $0.43
61	61 58539010000 Stick Coil Holder 2001 94	58539010000	—
62	62 56535106000 Gasket for connecting angle 94	56535106000	US $2.19
63	63 56535006000 Connecting angle 94	56535006000	—
64	64 0603061001 Cu-Seal Ring Din7603-6X10X1 94	0603061001	US $2.64
65	65 0015060163 Hh Collar Screw M 6X16 Ws=8 94	0015060163	US $2.23
66	66 58530005050 Retaining Plate 94	58530005050	—

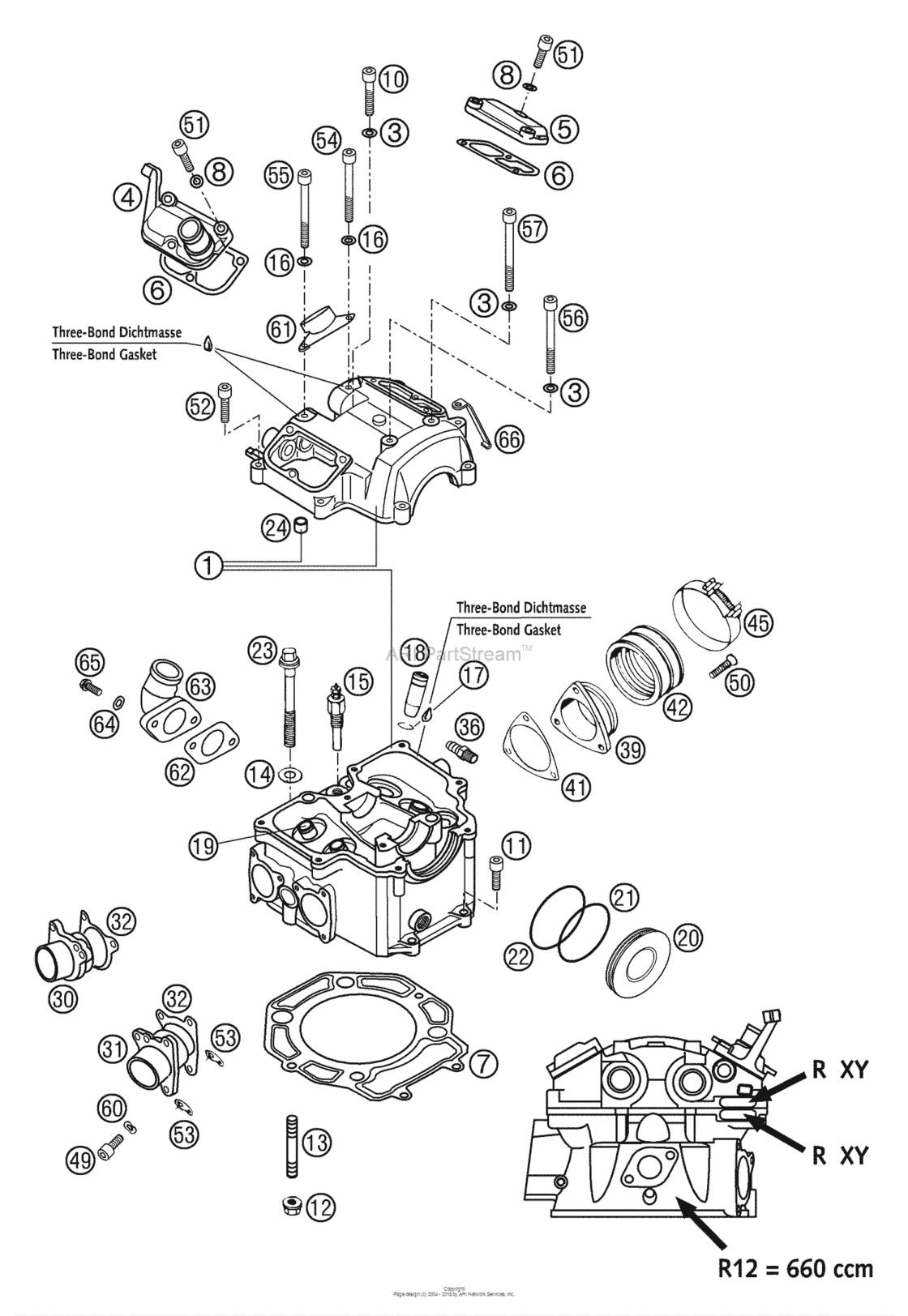

Cylinder Head Diagram KTM 660 660 Rallye US/EU 18106098-940683

Cylinder Head Diagram KTM 660 660 Rallye US/EU 18106098-940683
