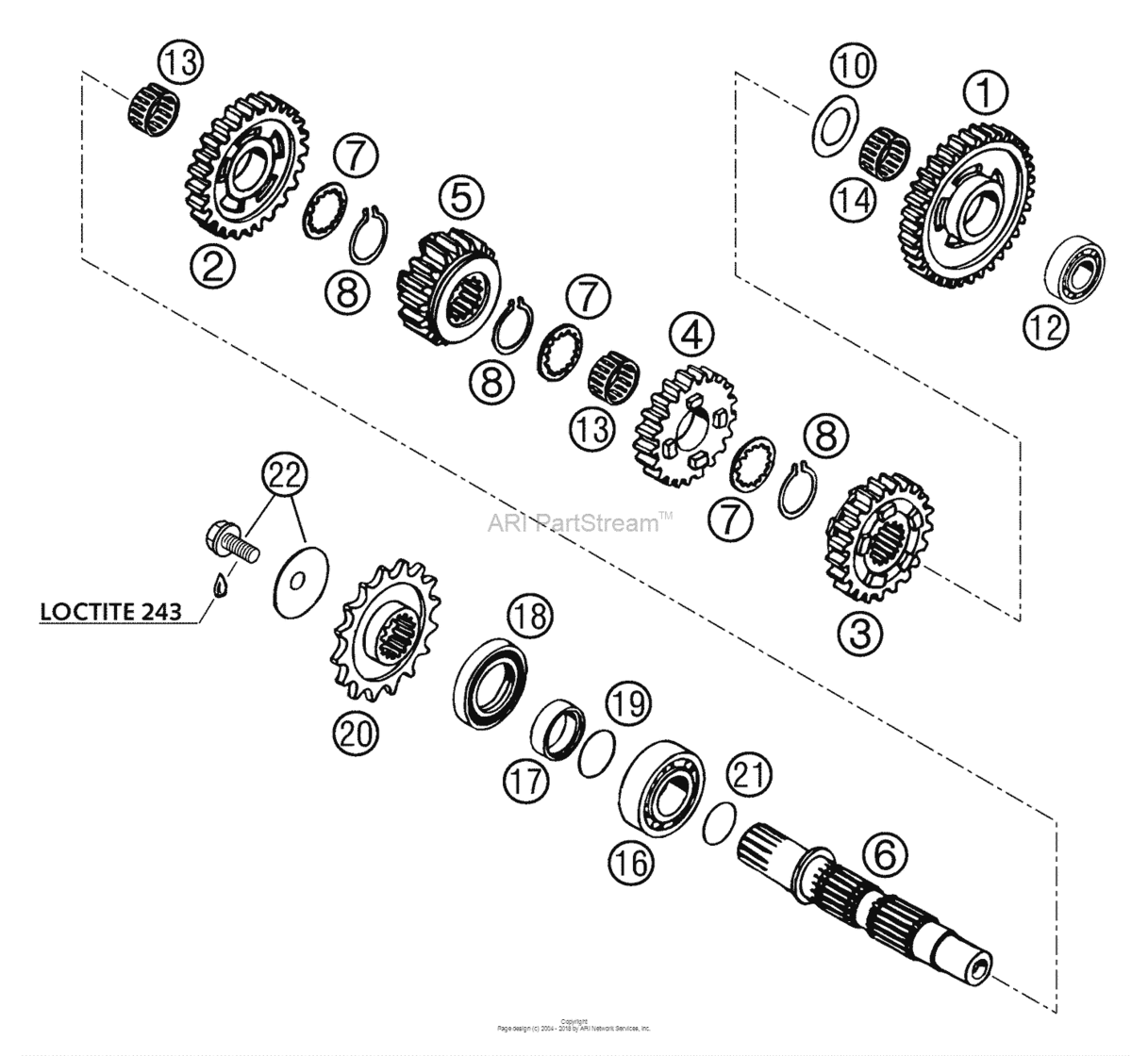

Transmission Ii - Countershaft Diagram KTM 660 660 Rallye
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Rallye Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57533005000 Idler gear 1st gear 33t(1m4)93DEAERATE FOR FRONT PIPE |
57533005000 |
US $100.45 |
||
|
2
|
2
58333113010 Idler gear 2.g 24-t "10"DEAERATE FOR FRONT PIPE |
58333113010 |
US $207.45 |
||
|
3
|
3
58333007003 Sliding gear 3.g 21-t "03"DEAERATE FOR FRONT PIPE |
58333007003 |
US $144.53 |
||
|
4
|
4
58333009005 Idler gear 4.g 19-t "05"DEAERATE FOR FRONT PIPE |
58333009005 |
US $142.27 |
||
|
5
|
5
58333011009 Sliding gear 5.g 18-t "09"DEAERATE FOR FRONT PIPE |
58333011009 |
US $166.99 |
||
|
6
|
6
58333003000 CountershaftDEAERATE FOR FRONT PIPE |
58333003000 |
US $234.94 |
||
|
7
|
7
56533016300 Stop disk 22,7 x 32 x 1,5DEAERATE FOR FRONT PIPE |
56533016300 |
US $5.68 |
||
|
8
|
8
52033096000 Lock ring din0471-25x1,64sdDEAERATE FOR FRONT PIPE |
52033096000 |
US $4.17 |
||
|
10
|
10
56533018300 Stop disk 22,2 x 35 x 1,5DEAERATE FOR FRONT PIPE |
56533018300 |
US $4.39 |
||
|
12
|
12
0412303914
Cyl.roll Bearing Nj204Ecp/c3
DEAERATE FOR FRONT PIPE |
0412303914 |
— | ||
|
13
|
13
58533021000
Needle Bear. K22X26X13 Divided
DEAERATE FOR FRONT PIPE |
58533021000 |
— | ||
|
14
|
14
56533098000 Needle bearing k22x26x13hDEAERATE FOR FRONT PIPE |
56533098000 |
US $13.74 |
||
|
16
|
16
49030023000 Cyl.roll Bearing Nj205DEAERATE FOR FRONT PIPE |
49030023000 |
US $67.86 |
||
|
17
|
17
58033017000
Spacer bushing
DEAERATE FOR FRONT PIPE |
58033017000 |
— | ||
|
18
|
18
0760324771 Shaft Seal Ring 32X47X7 BslDEAERATE FOR FRONT PIPE |
0760324771 |
US $17.20 |
||
|
19
|
19
0770250021 O-ring 25,00x2,00 siliconeDEAERATE FOR FRONT PIPE |
0770250021 |
US $4.35 |
||
|
20
|
20
58033029014 Engine sprocket 14 tDEAERATE FOR FRONT PIPE |
58033029014 |
US $33.90 |
||
|
20
|
20
58033029015 Engine sprocket 15 tDEAERATE FOR FRONT PIPE |
58033029015 |
US $34.58 |
||
|
20
|
20
58033029016 Engine sprocket 16 tDEAERATE FOR FRONT PIPE |
58033029016 |
US $34.60 |
||
|
21
|
21
0770220010 O-ring 22,00x1,00 nbr 70DEAERATE FOR FRONT PIPE |
0770220010 |
US $1.21 |
||
|
22
|
22
59033034044 Screw 10.9+Spring WasherDEAERATE FOR FRONT PIPE |
59033034044 |
US $9.01 |
