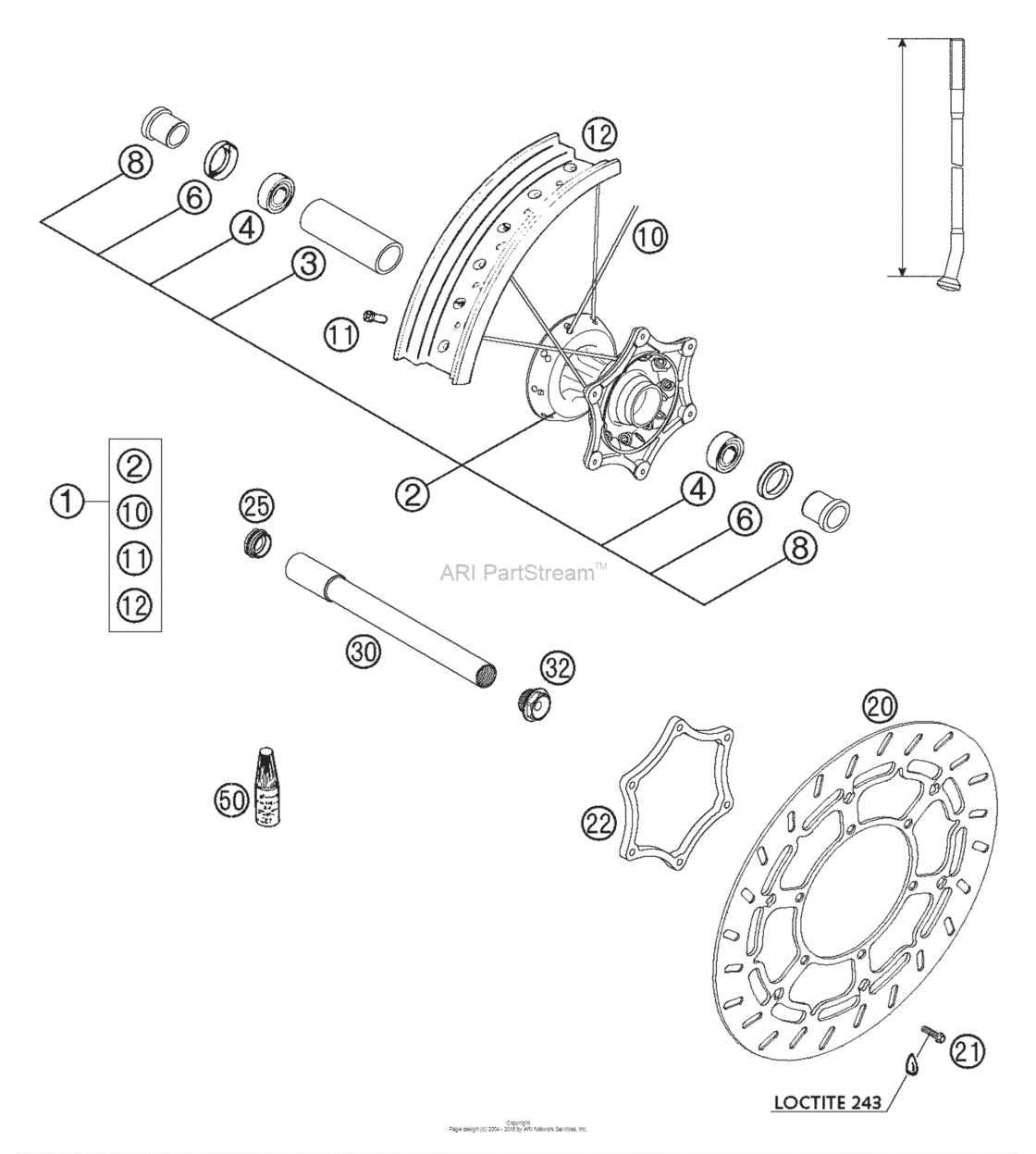

Front Wheel Diagram KTM 660 660 SMC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58409001644
Front Wheel 3,5X17 26Mm
FOR AUTO-DECOMPR. '95 |
58409001644 |
— | ||
|
2
|
2
5480901004491 Front Hub Cpl. Sx Silver 03FOR AUTO-DECOMPR. '95 |
5480901004491 |
US $327.57 |
||
|
3
|
3
54809011000 Bea.spacertube 35x2 l=79,4 03FOR AUTO-DECOMPR. '95 |
54809011000 |
US $23.66 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6NmFOR AUTO-DECOMPR. '95 |
0625069068 |
US $44.68 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tcFOR AUTO-DECOMPR. '95 |
0760354771 |
US $11.19 |
||
|
8
|
8
54809012000
Spacer bushing f. fr. wheel 03
FOR AUTO-DECOMPR. '95 |
54809012000 |
— | ||
| replacement | |||||
|
8
|
8
78009012000 Spacer bushing f. fr. wheel 08FOR AUTO-DECOMPR. '95 |
78009012000 |
US $27.10 |
||
|
10
|
10
50309071177 Spoke M4,5X177-15G 17 DdeFOR AUTO-DECOMPR. '95 |
50309071177 |
US $3.43 |
||
|
11
|
11
50309072000
Spoke Nipple Quadrax M4,5
FOR AUTO-DECOMPR. '95 |
50309072000 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,5FOR AUTO-DECOMPR. '95 |
81210072000 |
US $2.79 |
||
|
12
|
12
58409070000
Front Rim 3.5 X 17 (Silver)
FOR AUTO-DECOMPR. '95 |
58409070000 |
— | ||
|
20
|
20
58209060000 Brake disk front d=320mm 2002FOR AUTO-DECOMPR. '95 |
58209060000 |
US $260.88 |
||
|
21
|
21
59009062023 Special screw m6x23 ws=8 10.9FOR AUTO-DECOMPR. '95 |
59009062023 |
US $1.19 |
||
| replacement | |||||
|
21
|
21
59009062026 Special Screw M6X26 Sw=8 10.9FOR AUTO-DECOMPR. '95 |
59009062026 |
US $1.04 |
||
|
22
|
22
58409161000 Brake disc support sm 03FOR AUTO-DECOMPR. '95 |
58409161000 |
US $106.32 |
||
|
25
|
25
54809081050 Plug bushing ws=27 03FOR AUTO-DECOMPR. '95 |
54809081050 |
US $8.50 |
||
|
30
|
30
58409081000 Wheel spindel fro.d=26mm sm 03FOR AUTO-DECOMPR. '95 |
58409081000 |
US $57.12 |
||
|
32
|
32
54809082000 Spindle screw m24x1,5 ws=27 03FOR AUTO-DECOMPR. '95 |
54809082000 |
US $10.88 |
||
|
50
|
50
6899785 Loctite 243 Blue 6CcmFOR AUTO-DECOMPR. '95 |
6899785 |
US $40.61 |
||
