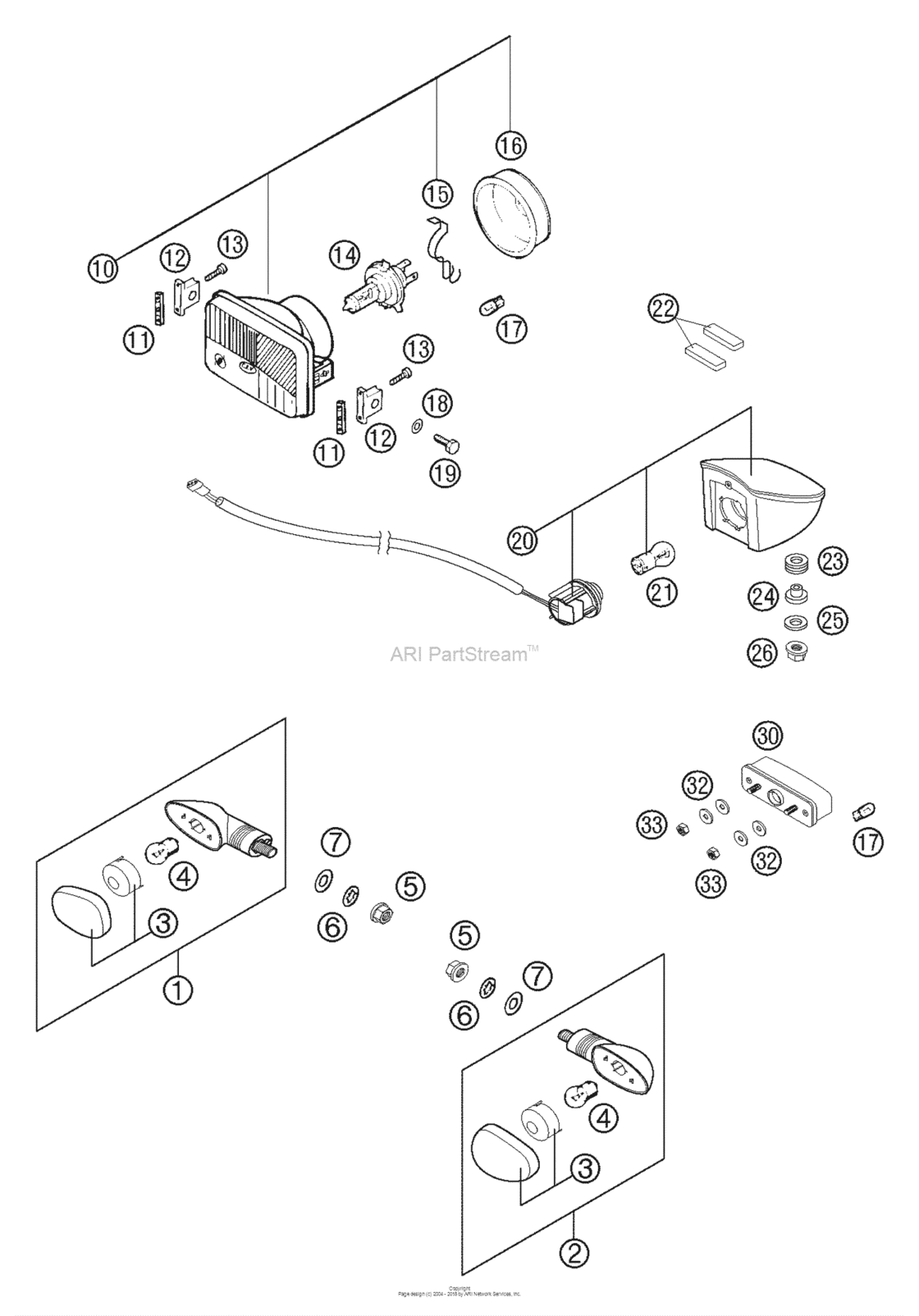

Head Light, Rear Light, Flasher Diagram KTM 660 660 SMC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58414026100 Flasher cpl.front r/s rear l/sFOR AUTO-DECOMPR. '95 |
58414026100 |
US $32.54 |
||
|
2
|
2
58414025100 Flasher cpl.front l/s rear r/sFOR AUTO-DECOMPR. '95 |
58414025100 |
US $32.90 |
||
|
3
|
3
58414028100 Flasher lens l/s & r/s 02FOR AUTO-DECOMPR. '95 |
58414028100 |
US $6.58 |
||
|
4
|
4
44111015100 Bulb 12v 10w (ba15s)FOR AUTO-DECOMPR. '95 |
44111015100 |
US $2.30 |
||
|
5
|
5
58414030000 Hh collar nut m10x1,25 ws=13FOR AUTO-DECOMPR. '95 |
58414030000 |
US $2.60 |
||
|
6
|
6
0797100003 Lock washer din6797-j10,5 ziFOR AUTO-DECOMPR. '95 |
0797100003 |
US $0.65 |
||
|
7
|
7
0125100003 Washer Din0125-A10,5FOR AUTO-DECOMPR. '95 |
0125100003 |
US $1.19 |
||
|
10
|
10
59014002000 Head light 186(ri)"1003202 r"FOR AUTO-DECOMPR. '95 |
59014002000 |
US $96.82 |
||
|
10
|
10
59014002100 Head light 186(le)"1003203 l"FOR AUTO-DECOMPR. '95 |
59014002100 |
US $102.61 |
||
|
11
|
11
50211410050 Headlight bracket '93FOR AUTO-DECOMPR. '95 |
50211410050 |
US $6.73 |
||
|
12
|
12
58414010100
Head light support 2001
FOR AUTO-DECOMPR. '95 |
58414010100 |
— | ||
|
13
|
13
0016040183 Screw for plastic d=4x18FOR AUTO-DECOMPR. '95 |
0016040183 |
US $1.17 |
||
|
14
|
14
54611038012 Bulb hs1 12v 35/35w whiteFOR AUTO-DECOMPR. '95 |
54611038012 |
US $33.52 |
||
|
15
|
15
49011436100 Bulb holderFOR AUTO-DECOMPR. '95 |
49011436100 |
US $2.69 |
||
|
16
|
16
50211537000 Rubber capFOR AUTO-DECOMPR. '95 |
50211537000 |
US $3.43 |
||
|
17
|
17
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilFOR AUTO-DECOMPR. '95 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
17
|
17
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilFOR AUTO-DECOMPR. '95 |
49011435100 |
US $3.81 |
||
|
18
|
18
0125060003 Washer Din0125-A 6,4FOR AUTO-DECOMPR. '95 |
0125060003 |
US $0.37 |
||
|
19
|
19
0933060203 Hh screw din0933-m 6x20FOR AUTO-DECOMPR. '95 |
0933060203 |
US $0.65 |
||
|
20
|
20
58414040100 Rear light cpl. lc4 2001FOR AUTO-DECOMPR. '95 |
58414040100 |
US $69.99 |
||
|
21
|
21
58414042000 Bulb 12V 21/5W (Bay15S)ReinfoFOR AUTO-DECOMPR. '95 |
58414042000 |
US $12.56 |
||
|
22
|
22
58414040051
Metamoll for rearlight 99
FOR AUTO-DECOMPR. '95 |
58414040051 |
— | ||
|
23
|
23
41001052000 Rubber Sleeve D=12MmFOR AUTO-DECOMPR. '95 |
41001052000 |
US $5.46 |
||
|
24
|
24
58714048000 Rear light bushingFOR AUTO-DECOMPR. '95 |
58714048000 |
US $4.73 |
||
|
25
|
25
51006097000 Washer 6,2x22x1,st30,w.galv.FOR AUTO-DECOMPR. '95 |
51006097000 |
US $1.62 |
||
|
26
|
26
56509064100 Self Locking Nut M6 10.9FOR AUTO-DECOMPR. '95 |
56509064100 |
US $1.04 |
||
|
30
|
30
58414047000 License-plate illumination '98FOR AUTO-DECOMPR. '95 |
58414047000 |
US $13.69 |
||
|
32
|
32
0021050003 Washer din9021-a 5,3FOR AUTO-DECOMPR. '95 |
0021050003 |
US $1.29 |
||
|
33
|
33
0985050003 Self Locking Nut Din0985-M 5FOR AUTO-DECOMPR. '95 |
0985050003 |
US $3.26 |
||
