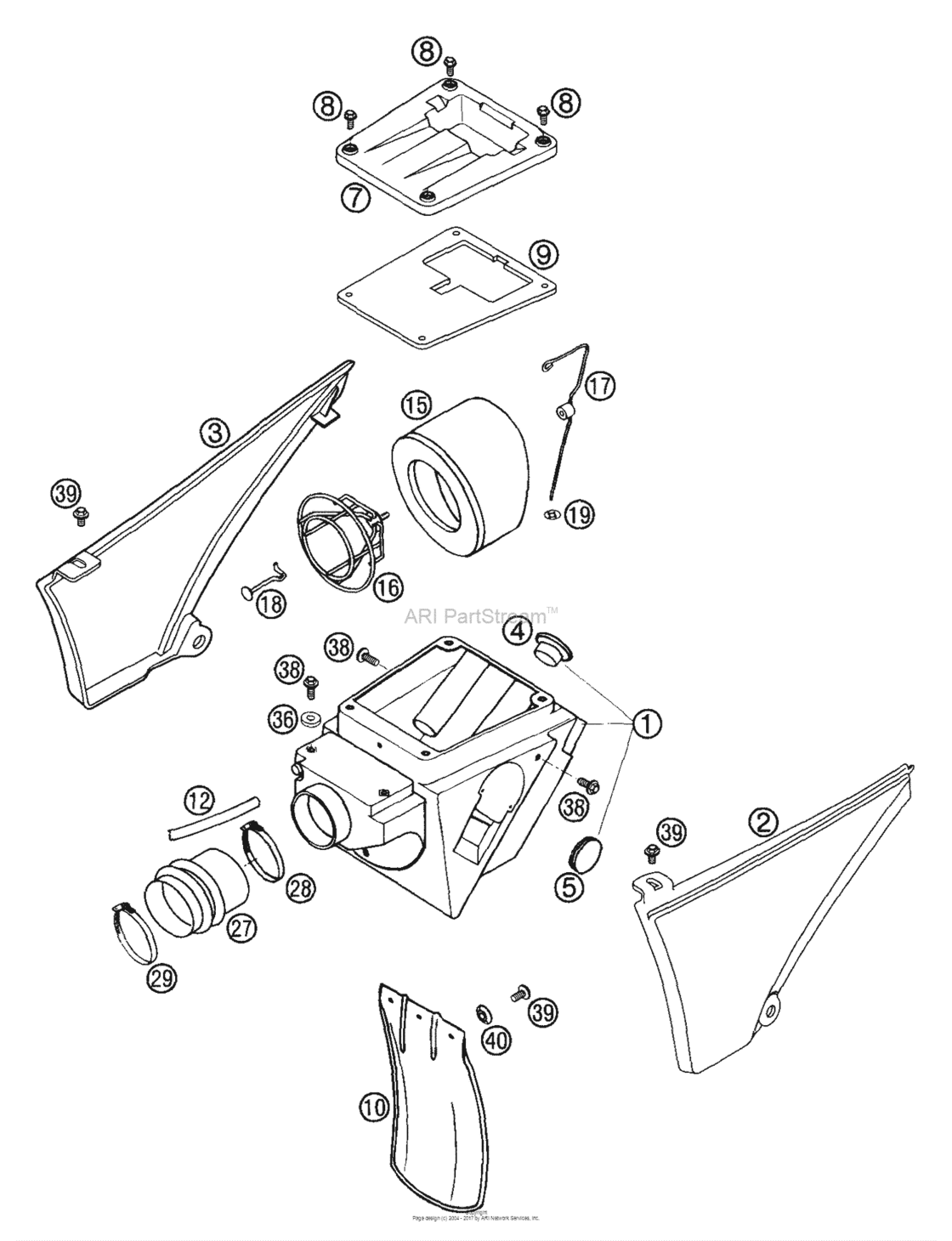

Air Filter Box Diagram KTM 660 660 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58306001100
Filter box cpl. without sls'94
FOR AUTO-DECOMPR. '95 |
58306001100 |
— | ||
|
2
|
2
58306003000
Filter Box Cover L/s Sc '99
FOR AUTO-DECOMPR. '95 |
58306003000 |
— | ||
|
3
|
3
58406004000
Filter box cover r/s lc4'98
FOR AUTO-DECOMPR. '95 |
58406004000 |
— | ||
|
4
|
4
58306004000
Plug 30 mmm
FOR AUTO-DECOMPR. '95 |
58306004000 |
— | ||
|
5
|
5
54606004000 Plug 37mmFOR AUTO-DECOMPR. '95 |
54606004000 |
US $1.89 |
||
|
7
|
7
58306102000
Filter box cover closed
FOR AUTO-DECOMPR. '95 |
58306102000 |
— | ||
|
8
|
8
0015050123
Hh collar screw m 5x12 ws=8
FOR AUTO-DECOMPR. '95 |
0015050123 |
— | ||
| replacement | |||||
|
8
|
8
0025050126 Hh collar screw m5x12 tx30FOR AUTO-DECOMPR. '95 |
0025050126 |
US $3.38 |
||
|
9
|
9
58406089000 Gasket for filter box cover scFOR AUTO-DECOMPR. '95 |
58406089000 |
US $10 |
||
|
10
|
10
54606010000 Splash Protect.for Filter BoxFOR AUTO-DECOMPR. '95 |
54606010000 |
US $20.42 |
||
|
12
|
12
57005020001 Hose 10x14 per meterFOR AUTO-DECOMPR. '95 |
57005020001 |
US $13.86 |
||
|
15
|
15
56506015100 AirfilterFOR AUTO-DECOMPR. '95 |
56506015100 |
US $37.84 |
||
|
16
|
16
58306016100 Filter CarrierFOR AUTO-DECOMPR. '95 |
58306016100 |
US $35.80 |
||
| replacement | |||||
|
16
|
16
58606016000
Filter carrier 05
FOR AUTO-DECOMPR. '95 |
58606016000 |
— | ||
|
17
|
17
58306017100 Holding hanger for filter '97FOR AUTO-DECOMPR. '95 |
58306017100 |
US $23.05 |
||
|
18
|
18
58306017050 Hook for filter bracketFOR AUTO-DECOMPR. '95 |
58306017050 |
US $14.50 |
||
|
19
|
19
54606019004
Clamping disk ks4
FOR AUTO-DECOMPR. '95 |
54606019004 |
— | ||
|
27
|
27
58006026500 Air filter boot 540/620/640FOR AUTO-DECOMPR. '95 |
58006026500 |
US $19.26 |
||
|
28
|
28
55006028000 Hose clamp 60-80mmFOR AUTO-DECOMPR. '95 |
55006028000 |
US $5.46 |
||
|
29
|
29
51006027000 Hose Clamp 50-70MmFOR AUTO-DECOMPR. '95 |
51006027000 |
US $5.66 |
||
|
36
|
36
50232050001 Steel washer 6,4x17x3FOR AUTO-DECOMPR. '95 |
50232050001 |
US $4.86 |
||
|
38
|
38
0014060153
Hh Collar Screw M6X15 Tx30
FOR AUTO-DECOMPR. '95 |
0014060153 |
— | ||
| replacement | |||||
|
38
|
38
0024060156 Hh collar screw m6x15 tx30FOR AUTO-DECOMPR. '95 |
0024060156 |
US $3.96 |
||
|
39
|
39
0014060103
Hh Collar Screw M6X10 Tx30
FOR AUTO-DECOMPR. '95 |
0014060103 |
— | ||
| replacement | |||||
|
39
|
39
0024060106 Hh collar screw m6x10 tx30FOR AUTO-DECOMPR. '95 |
0024060106 |
US $4.35 |
||
|
40
|
40
72210079000 BucketFOR AUTO-DECOMPR. '95 |
72210079000 |
US $2.72 |
||
