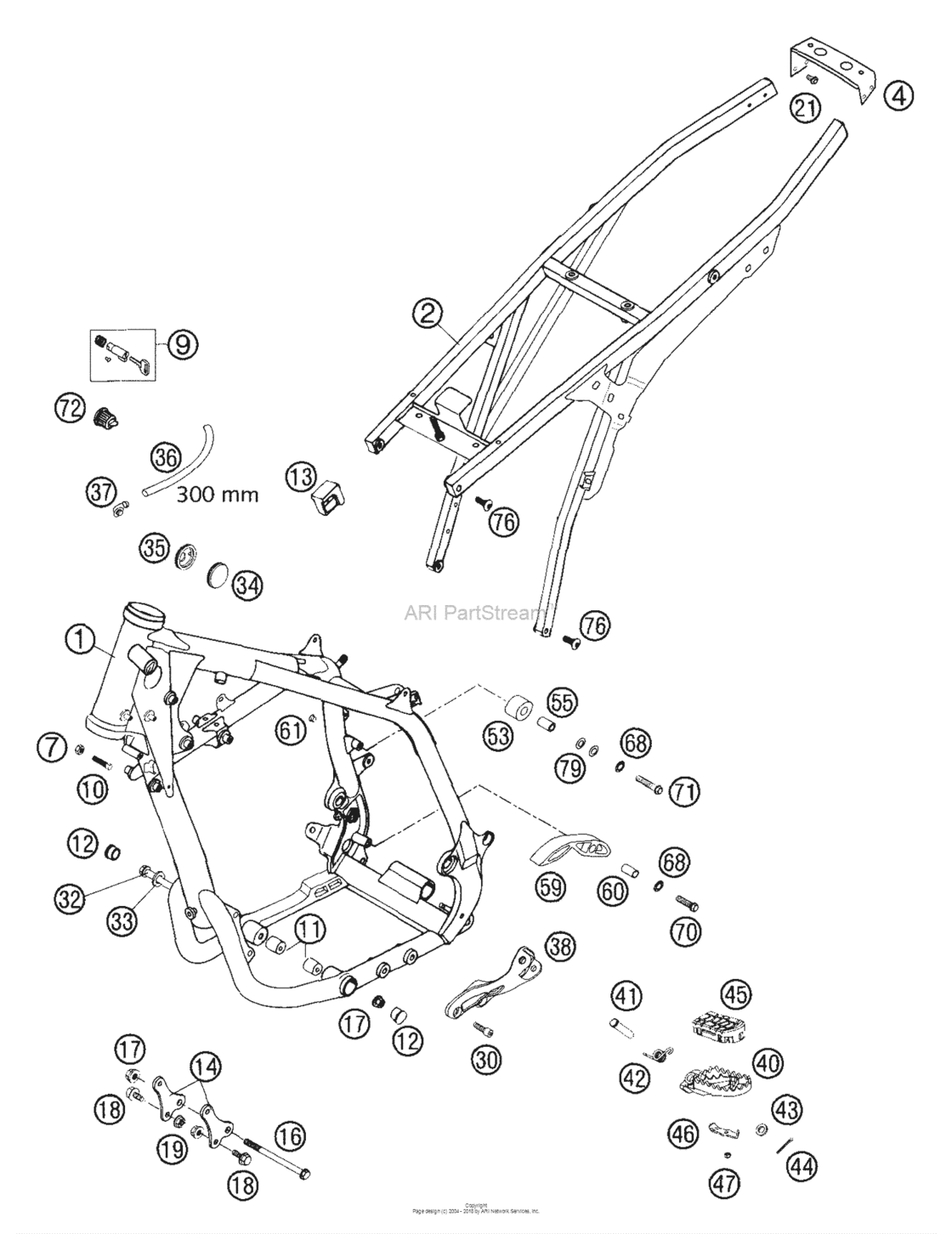

Frame, Sub Frame Diagram KTM 660 660 SMC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5830310164490
Frame cpl. "i4" sxc usa 04
FOR AUTO-DECOMPR. '95 |
5830310164490 |
— | ||
|
2
|
2
58303102544
Sub Frame Cpl.alu 400/620Sc 99
FOR AUTO-DECOMPR. '95 |
58303102544 |
— | ||
|
4
|
4
58403002152
Overlap Metal Sheet S.frame ’99
FOR AUTO-DECOMPR. '95 |
58403002152 |
— | ||
|
7
|
7
0934080003 Hexagon Nut Din0934-M 8FOR AUTO-DECOMPR. '95 |
0934080003 |
US $3.26 |
||
|
9
|
9
71003007000 Steering head lock cpl. zadiFOR AUTO-DECOMPR. '95 |
71003007000 |
US $28.07 |
||
|
10
|
10
59001037000 Special screw m8x26 ws=10FOR AUTO-DECOMPR. '95 |
59001037000 |
US $2.09 |
||
|
11
|
11
58003012000 Spacer roller 10,3x20x22FOR AUTO-DECOMPR. '95 |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mmFOR AUTO-DECOMPR. '95 |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '93FOR AUTO-DECOMPR. '95 |
58307015000 |
US $7.28 |
||
|
14
|
14
58303055000 Engine support agw '94FOR AUTO-DECOMPR. '95 |
58303055000 |
US $13.55 |
||
|
16
|
16
58403013000 Engine brac.screw m10x110 ws13FOR AUTO-DECOMPR. '95 |
58403013000 |
US $13.82 |
||
|
17
|
17
54630044000 Collar nut m10 ws=13FOR AUTO-DECOMPR. '95 |
54630044000 |
US $2.16 |
||
|
18
|
18
49109481052 Hh collar screw m 8x16 ws=13FOR AUTO-DECOMPR. '95 |
49109481052 |
US $2.06 |
||
|
19
|
19
54310086200 Self Locking Nut M8 10.9FOR AUTO-DECOMPR. '95 |
54310086200 |
US $1.56 |
||
|
21
|
21
0015060103
Hh collar screw m 6x10 ws=8
FOR AUTO-DECOMPR. '95 |
0015060103 |
— | ||
| replacement | |||||
|
21
|
21
0025060106 Hh collar screw m6x10 tx30FOR AUTO-DECOMPR. '95 |
0025060106 |
US $1.58 |
||
|
30
|
30
0912100250
Ah-Collar Screw M10X25 Isa45
FOR AUTO-DECOMPR. '95 |
0912100250 |
— | ||
| replacement | |||||
|
30
|
30
0032100256S Ah-collar screw m10x25 isa45FOR AUTO-DECOMPR. '95 |
0032100256S |
US $5.12 |
||
|
32
|
32
58403014000 Engine brac.screw m10x160 ws13FOR AUTO-DECOMPR. '95 |
58403014000 |
US $18.67 |
||
|
33
|
33
31004001100 Washer 10,5 x 21 x 3FOR AUTO-DECOMPR. '95 |
31004001100 |
US $1.46 |
||
|
34
|
34
54606004000 Plug 37mmFOR AUTO-DECOMPR. '95 |
54606004000 |
US $1.89 |
||
|
35
|
35
54606004100 Plug 37mm perforated 04FOR AUTO-DECOMPR. '95 |
54606004100 |
US $1.96 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meterFOR AUTO-DECOMPR. '95 |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '97FOR AUTO-DECOMPR. '95 |
50303089000 |
US $4.52 |
||
|
38
|
38
58403038000 Footrest Bracket Left Alu 05FOR AUTO-DECOMPR. '95 |
58403038000 |
US $82.62 |
||
| replacement | |||||
|
38
|
38
58403038100 Footrest bracket left alu 05FOR AUTO-DECOMPR. '95 |
58403038100 |
US $80.70 |
||
|
40
|
40
59003040250 Footrest L/s 08FOR AUTO-DECOMPR. '95 |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
40
|
40
78003040050 Footrest l/s 08FOR AUTO-DECOMPR. '95 |
78003040050 |
US $44.12 |
||
|
40
|
40
59003041250 Footrest R/s 08FOR AUTO-DECOMPR. '95 |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 08FOR AUTO-DECOMPR. '95 |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 MmFOR AUTO-DECOMPR. '95 |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/sFOR AUTO-DECOMPR. '95 |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,5FOR AUTO-DECOMPR. '95 |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steelFOR AUTO-DECOMPR. '95 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steelFOR AUTO-DECOMPR. '95 |
0094032250 |
US $1.12 |
||
|
45
|
45
60003040010 Footrest rubber front l/s 03FOR AUTO-DECOMPR. '95 |
60003040010 |
US $19.16 |
||
|
45
|
45
60003041010 Footrest rubber front r/s 03FOR AUTO-DECOMPR. '95 |
60003041010 |
US $19.16 |
||
|
46
|
46
60003044010 Closing panel front l/s r/s 03FOR AUTO-DECOMPR. '95 |
60003044010 |
US $5.12 |
||
|
47
|
47
0985050003 Self Locking Nut Din0985-M 5FOR AUTO-DECOMPR. '95 |
0985050003 |
US $3.26 |
||
|
53
|
53
58403060000 Chain roll 12x29x22,5 '98FOR AUTO-DECOMPR. '95 |
58403060000 |
US $5.20 |
||
|
55
|
55
58403060065 Bush chain roll 8x12x23 '98FOR AUTO-DECOMPR. '95 |
58403060065 |
US $2.58 |
||
|
59
|
59
51103053000 Chain sliding piece below '97FOR AUTO-DECOMPR. '95 |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20FOR AUTO-DECOMPR. '95 |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl10FOR AUTO-DECOMPR. '95 |
54403135000 |
US $1.31 |
||
|
68
|
68
36003014000 Lock washer 8mmFOR AUTO-DECOMPR. '95 |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
FOR AUTO-DECOMPR. '95 |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40FOR AUTO-DECOMPR. '95 |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080453 Hh Collar Screw M 8X45 Ws=10FOR AUTO-DECOMPR. '95 |
0015080453 |
US $1.46 |
||
|
72
|
72
42007049000
Plastic cap
FOR AUTO-DECOMPR. '95 |
42007049000 |
— | ||
|
76
|
76
54510052100
Counter-Sunk Screw Isa45 M8X26
FOR AUTO-DECOMPR. '95 |
54510052100 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26FOR AUTO-DECOMPR. '95 |
0019080266S |
US $2.23 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4FOR AUTO-DECOMPR. '95 |
0125080003 |
US $2.02 |
||
