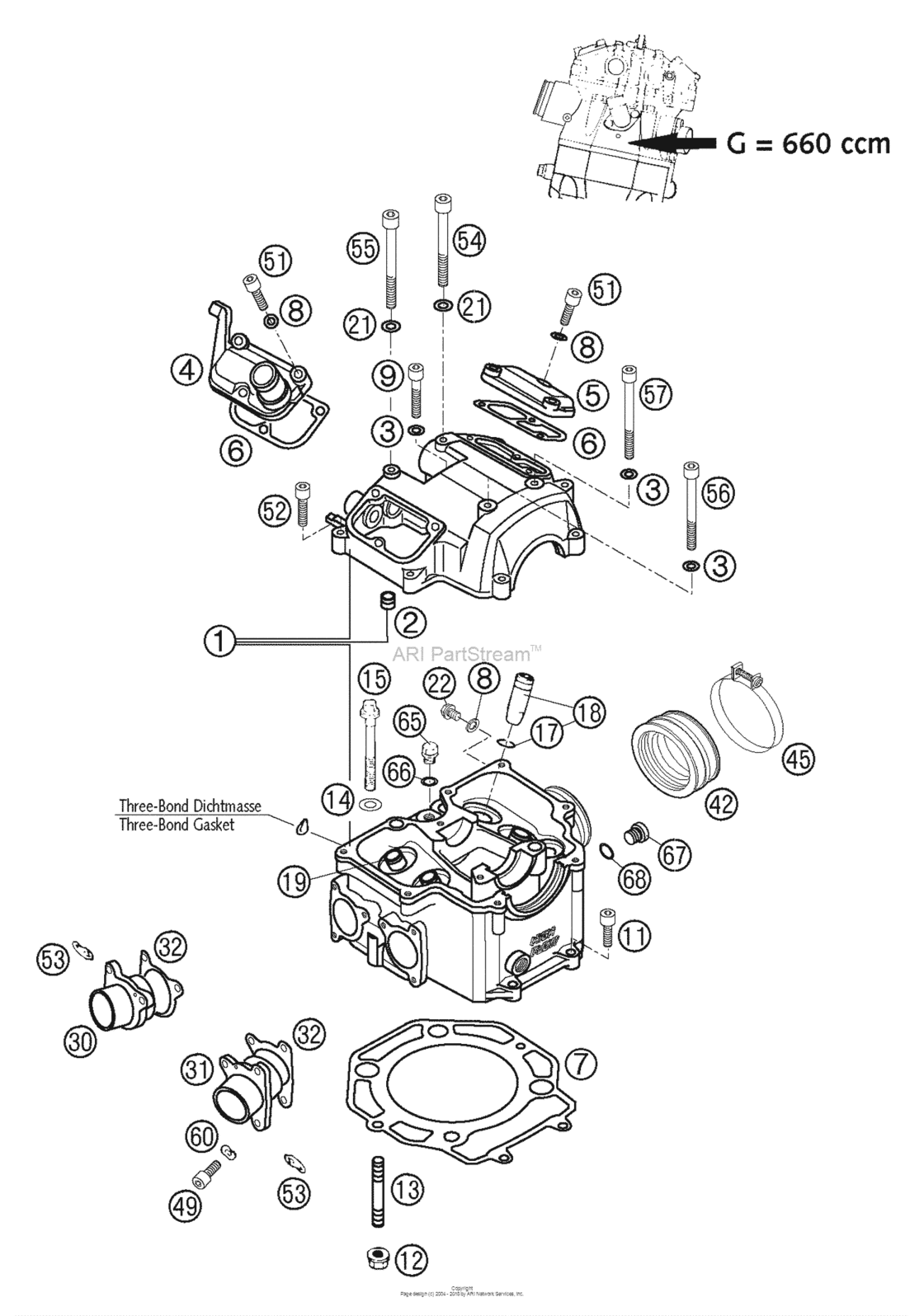

Cylinder Head Diagram KTM 660 660 SMC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5863602000023
Cylinder Head Cpl. Sm 03
FOR PLASTIC D=5X12 |
5863602000023 |
— | ||
|
2
|
2
58530090000 Dowel bushing 9,8x7,2x10FOR PLASTIC D=5X12 |
58530090000 |
US $1.28 |
||
|
3
|
3
58036065100 Cu-seal ring 6 x 10 x 2FOR PLASTIC D=5X12 |
58036065100 |
US $0.90 |
||
|
4
|
4
58036152600 Valve cover front '99FOR PLASTIC D=5X12 |
58036152600 |
US $33.58 |
||
|
5
|
5
58036052000 Valve Cover RearFOR PLASTIC D=5X12 |
58036052000 |
US $43.76 |
||
| replacement | |||||
|
5
|
5
58036052200 Valve cover rearFOR PLASTIC D=5X12 |
58036052200 |
US $14.33 |
||
|
6
|
6
58036053000 Valve cover gasketFOR PLASTIC D=5X12 |
58036053000 |
US $4.71 |
||
|
7
|
7
58530036000 Cylinder head gasket 102,3mmFOR PLASTIC D=5X12 |
58530036000 |
US $64.04 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X1FOR PLASTIC D=5X12 |
0603061001 |
US $2.64 |
||
|
9
|
9
0912060353 Ah Screw Din0912-M 6X35FOR PLASTIC D=5X12 |
0912060353 |
US $2.09 |
||
|
11
|
11
0912060253 Ah Screw Din0912-M 6X25FOR PLASTIC D=5X12 |
0912060253 |
US $1.79 |
||
|
12
|
12
49030028000 Collar nut m8FOR PLASTIC D=5X12 |
49030028000 |
US $2.09 |
||
|
13
|
13
54330043000 Stud din0835-m 8x40FOR PLASTIC D=5X12 |
54330043000 |
US $3.79 |
||
|
14
|
14
58036098000 Cu-seal ring 10 x 20 x 1FOR PLASTIC D=5X12 |
58036098000 |
US $1.22 |
||
|
15
|
15
58036099100 Collar screw m10x80 ws=13 10.9FOR PLASTIC D=5X12 |
58036099100 |
US $8.87 |
||
|
17
|
17
0993012000 Circlip Din7993-Rw12FOR PLASTIC D=5X12 |
0993012000 |
US $2.11 |
||
|
18
|
18
58036026644 Valve guide intake cpl.FOR PLASTIC D=5X12 |
58036026644 |
US $14.43 |
||
|
19
|
19
58036126644 Valve guide exhaust cpl.FOR PLASTIC D=5X12 |
58036126644 |
US $14.43 |
||
|
21
|
21
0603070122 Cu-seal ring din7603- 7x12x2FOR PLASTIC D=5X12 |
0603070122 |
US $1.21 |
||
|
22
|
22
0015060083
Hh collar screw m 6x8 ws=8
FOR PLASTIC D=5X12 |
0015060083 |
— | ||
| replacement | |||||
|
22
|
22
0025060086 Hh collar screw m6x8 tx30FOR PLASTIC D=5X12 |
0025060086 |
US $1.39 |
||
|
30
|
30
58036040000 Exhaust flange r/sFOR PLASTIC D=5X12 |
58036040000 |
US $37.88 |
||
|
31
|
31
58036140000 Exhaust flange l/sFOR PLASTIC D=5X12 |
58036140000 |
US $37.03 |
||
|
32
|
32
58036041000 Exhaust flange gasketFOR PLASTIC D=5X12 |
58036041000 |
US $4.71 |
||
|
42
|
42
58536044000 Intake boot rallye 2001FOR PLASTIC D=5X12 |
58536044000 |
US $42.67 |
||
|
45
|
45
59030061000 Clamp d=56mm b=9mm m4x25FOR PLASTIC D=5X12 |
59030061000 |
US $4.45 |
||
|
49
|
49
0912060163 Ah Screw Din0912-M 6X16FOR PLASTIC D=5X12 |
0912060163 |
US $1.29 |
||
|
51
|
51
0912060203 Ah Screw Din0912-M 6X20FOR PLASTIC D=5X12 |
0912060203 |
US $1.04 |
||
|
52
|
52
0912060253 Ah Screw Din0912-M 6X25FOR PLASTIC D=5X12 |
0912060253 |
US $1.79 |
||
|
53
|
53
51005074000 Retaining plateFOR PLASTIC D=5X12 |
51005074000 |
US $2.11 |
||
|
54
|
54
0912070553
Ah screw din0912-m 7x55 12.9
FOR PLASTIC D=5X12 |
0912070553 |
— | ||
|
55
|
55
0912070603 Ah screw din0912-m 7x60 12.9FOR PLASTIC D=5X12 |
0912070603 |
US $7.72 |
||
|
56
|
56
0912060653 Ah Screw Din0912-M 6X65FOR PLASTIC D=5X12 |
0912060653 |
US $1.84 |
||
|
57
|
57
0912060703 Ah screw din0912-m 6x70FOR PLASTIC D=5X12 |
0912060703 |
US $1.79 |
||
|
60
|
60
0137060003 Spring Washer Din0137-B 6FOR PLASTIC D=5X12 |
0137060003 |
US $0.43 |
||
|
65
|
65
0910100003 Plug din0910-m 10x1FOR PLASTIC D=5X12 |
0910100003 |
US $4.39 |
||
|
66
|
66
0603100141 Copper Gasket Din7603-10X14X1FOR PLASTIC D=5X12 |
0603100141 |
US $2.24 |
||
|
67
|
67
0908120153 Plug din0908-m12x1,5FOR PLASTIC D=5X12 |
0908120153 |
US $3.81 |
||
|
68
|
68
0770100020 O-ring 10,00x2,00 silconeFOR PLASTIC D=5X12 |
0770100020 |
US $2.02 |
||
