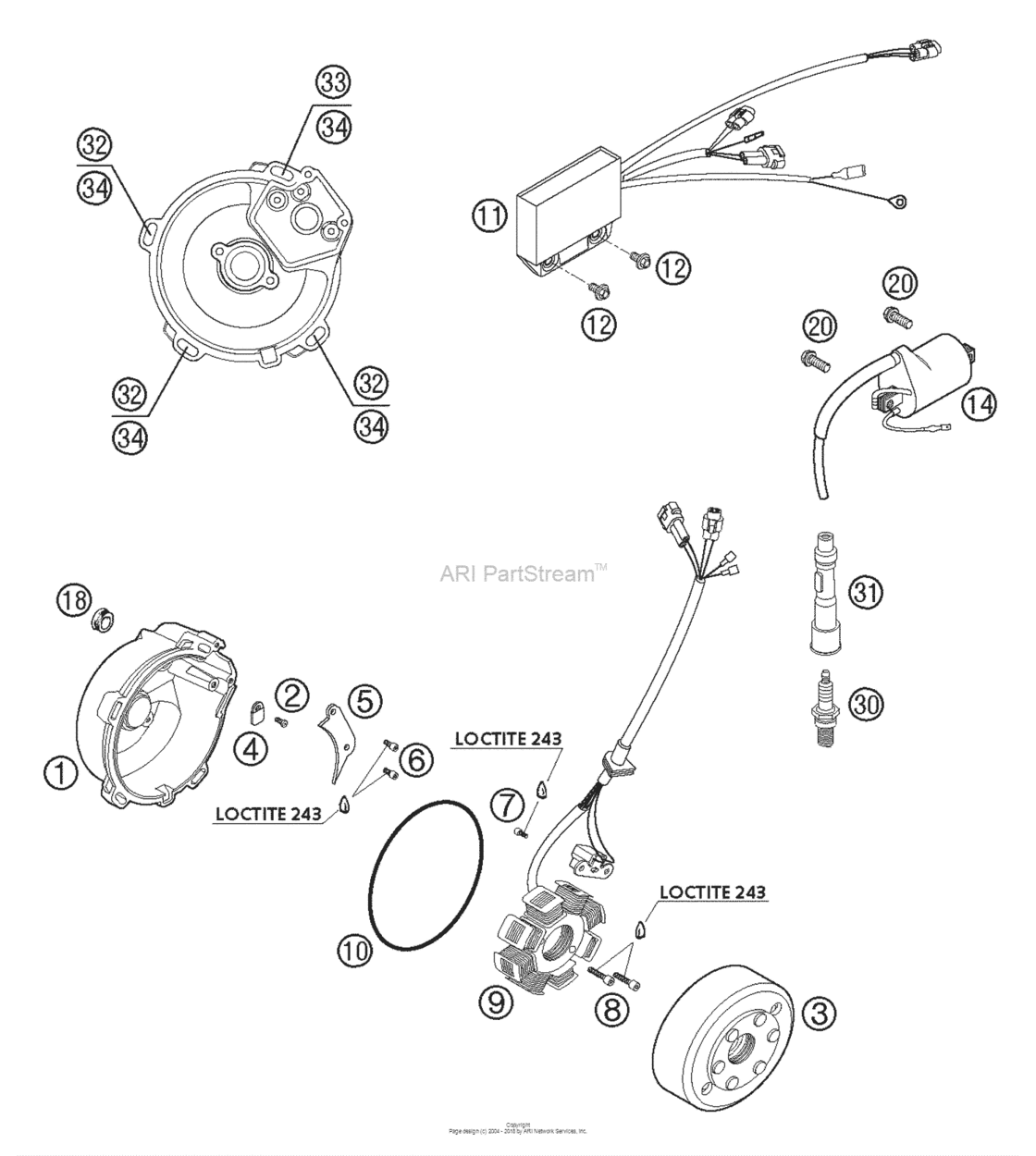

Ignition System Kokusan Diagram KTM 660 660 SMC
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5833000200023
Ignition Cover 4K3 Grey 03
FOR PLASTIC D=5X12 |
5833000200023 |
— | ||
|
2
|
2
0500050083
Tapetite Screw
FOR PLASTIC D=5X12 |
0500050083 |
— | ||
|
3
|
3
58639005000 Flywheel kokusan 660 sm 03FOR PLASTIC D=5X12 |
58639005000 |
US $232.15 |
||
|
4
|
4
50031003000
Retaining plate
FOR PLASTIC D=5X12 |
50031003000 |
— | ||
|
5
|
5
58330002050
Closing Cover 4K3
FOR PLASTIC D=5X12 |
58330002050 |
— | ||
|
6
|
6
0912050123 Ah screw din0912-m 5x12FOR PLASTIC D=5X12 |
0912050123 |
US $0.85 |
||
|
7
|
7
0912050153
Ah Screw Din0912-M 5X15
FOR PLASTIC D=5X12 |
0912050153 |
— | ||
|
8
|
8
0912060203 Ah Screw Din0912-M 6X20FOR PLASTIC D=5X12 |
0912060203 |
US $1.04 |
||
|
9
|
9
58339004100
Stator kokusan 4k3 sc 2002
FOR PLASTIC D=5X12 |
58339004100 |
— | ||
|
10
|
10
0770020490 O-ring 126,72x1,78 b70FOR PLASTIC D=5X12 |
0770020490 |
US $3.33 |
||
|
11
|
11
58339031200
Digital Box 660 Supermtoto 03
FOR PLASTIC D=5X12 |
58339031200 |
— | ||
|
12
|
12
0014060103
Hh Collar Screw M6X10 Tx30
FOR PLASTIC D=5X12 |
0014060103 |
— | ||
| replacement | |||||
|
12
|
12
0024060106 Hh collar screw m6x10 tx30FOR PLASTIC D=5X12 |
0024060106 |
US $4.35 |
||
|
14
|
14
58439006000 Ignitioncoil ig3826 kokusan'96FOR PLASTIC D=5X12 |
58439006000 |
US $83.22 |
||
|
18
|
18
58030002050
Plug M18X1,5
FOR PLASTIC D=5X12 |
58030002050 |
— | ||
|
20
|
20
0015060163 Hh Collar Screw M 6X16 Ws=8FOR PLASTIC D=5X12 |
0015060163 |
US $2.23 |
||
|
30
|
30
59039093100 Spark Plug Ngk Dcpr8E 03FOR PLASTIC D=5X12 |
59039093100 |
US $7.48 |
||
|
31
|
31
58439090000 Spark Plug Connect. Sd05Eg 03FOR PLASTIC D=5X12 |
58439090000 |
US $23.41 |
||
|
32
|
32
0015060253
Hh Collar Screw M6X25 Tx30
FOR PLASTIC D=5X12 |
0015060253 |
— | ||
| replacement | |||||
|
32
|
32
0025060256 Hh collar screw m6x25 tx30FOR PLASTIC D=5X12 |
0025060256 |
US $2.45 |
||
|
33
|
33
0015060303
Hh Collar Screw M6X30 Tx30
FOR PLASTIC D=5X12 |
0015060303 |
— | ||
| replacement | |||||
|
33
|
33
0025060306 Hh collar screw m6x30 tx30FOR PLASTIC D=5X12 |
0025060306 |
US $3.96 |
||
|
34
|
34
0125060003 Washer Din0125-A 6,4FOR PLASTIC D=5X12 |
0125060003 |
US $0.37 |
||
