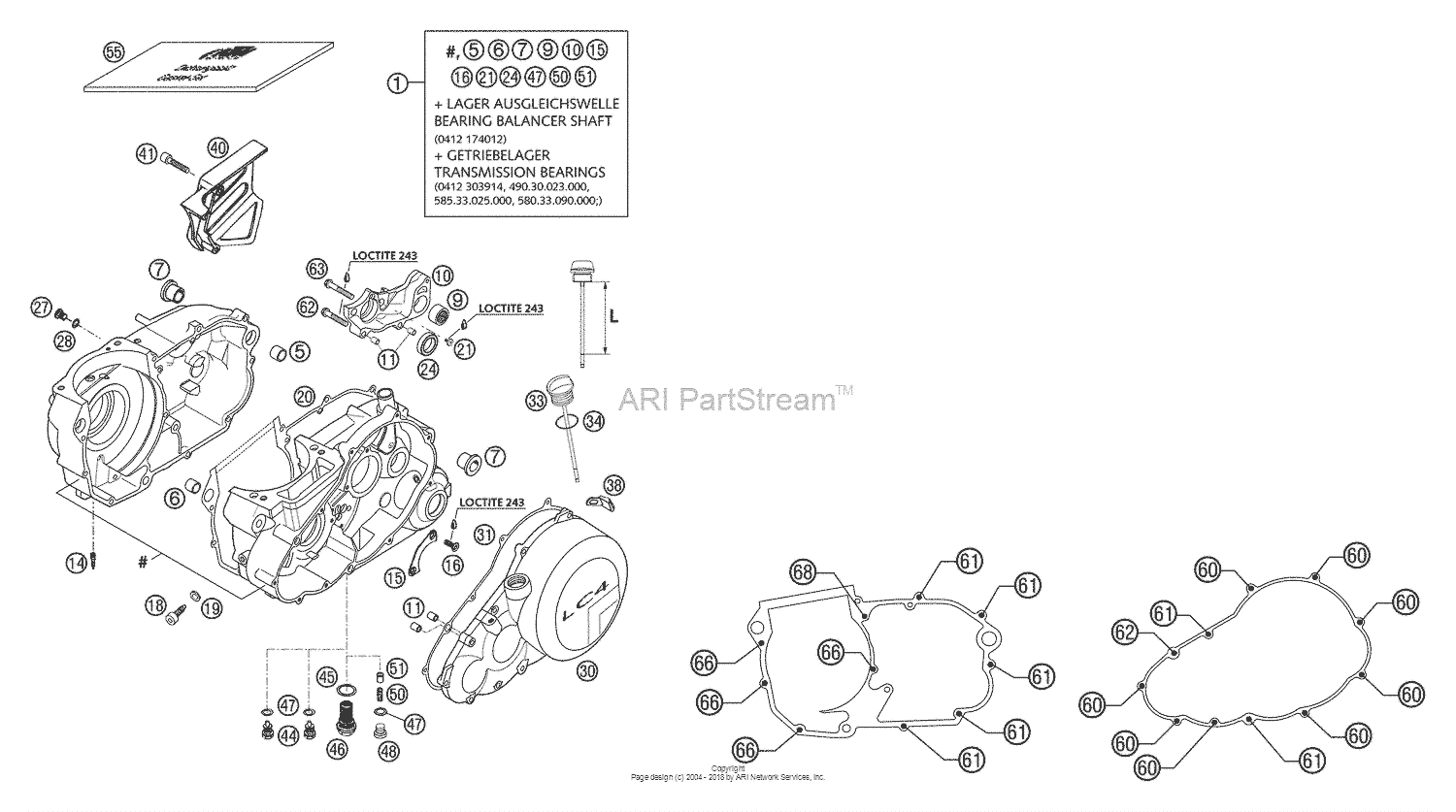

Engine Case Diagram KTM 660 660 Super Moto Factory
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 660
- Model
- 660 Super Moto Factory
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57330000044
Engine Case Cpl. W. Bearing 02
REGINA |
57330000044 |
— | ||
|
5
|
5
50130027000 Dowel 19 x15,1x12REGINA |
50130027000 |
US $7.09 |
||
|
6
|
6
51030026100 Dowel 17 x 13 x 12REGINA |
51030026100 |
US $5.66 |
||
|
7
|
7
50130010000 Crank case bushREGINA |
50130010000 |
US $27.47 |
||
|
9
|
9
58033097000 Needle bearing hk 2216REGINA |
58033097000 |
US $13.94 |
||
|
10
|
10
58330011000 Shift mechanism support lc4'94REGINA |
58330011000 |
US $116.16 |
||
|
11
|
11
49030090000 Dowel 9,8 x 7 x 10REGINA |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
11
|
11
49030090100 Dowel 9,8 X7X10REGINA |
49030090100 |
US $2.60 |
||
|
14
|
14
49130450050 Tube lw 3REGINA |
49130450050 |
US $2.60 |
||
|
15
|
15
56530017000 Retaining plateREGINA |
56530017000 |
US $16.12 |
||
|
16
|
16
0991060163 Flat head scr. din7991-m 6x16REGINA |
0991060163 |
US $1.46 |
||
|
18
|
18
58030080000 Locating screw m8 l=23REGINA |
58030080000 |
US $13.60 |
||
|
19
|
19
58030081000 Cu-seal ring 8 x 14 x 3REGINA |
58030081000 |
US $1.22 |
||
|
20
|
20
58530039100
Eng. Case Gasket Sil C4400 0,3
REGINA |
58530039100 |
— | ||
|
21
|
21
0985050103 Oval head scr. din7985-m 5x10REGINA |
0985050103 |
US $2.18 |
||
|
24
|
24
0625618050 Ball bearing 61805 c3REGINA |
0625618050 |
US $39.98 |
||
|
27
|
27
49030029000 Oil drain plug m10x1,5 ah-ws=6REGINA |
49030029000 |
US $5.85 |
||
|
28
|
28
0603100141 Copper Gasket Din7603-10X14X1REGINA |
0603100141 |
US $2.24 |
||
|
30
|
30
58330101100 Clutch Cover Cpl. Black 03REGINA |
58330101100 |
US $175.36 |
||
| replacement | |||||
|
30
|
30
5833010124430 Clutch cover cpl. black 03REGINA |
5833010124430 |
US $168.57 |
||
|
31
|
31
58530025000 Clutch cover gasket 2001REGINA |
58530025000 |
US $18.89 |
||
|
33
|
33
58330020144 Oil dipstick cpl. l=93mm '96REGINA |
58330020144 |
US $16.76 |
||
|
34
|
34
0770191015 O-ring 19,00x3,00 nbrREGINA |
0770191015 |
US $1.16 |
||
|
38
|
38
58333041000
Bump rubber
REGINA |
58333041000 |
— | ||
|
40
|
40
58030050700 Chain cover black '99REGINA |
58030050700 |
US $14.43 |
||
|
41
|
41
0912060303 Ah screw din0912-m 6x30REGINA |
0912060303 |
US $1.60 |
||
|
44
|
44
58030021000
Oildrain Plug With Magnet
REGINA |
58030021000 |
— | ||
| replacement | |||||
|
44
|
44
58030021100 Oildrain Plug With MagnetREGINA |
58030021100 |
US $12.02 |
||
|
45
|
45
58038017100 Cu-seal ring din7603-22x27x2REGINA |
58038017100 |
US $3.89 |
||
|
46
|
46
58038019100
Oil drain plug m22x1,5
REGINA |
58038019100 |
— | ||
|
47
|
47
58038022000 Cu-Seal Ring Din7603-12X18X1,5REGINA |
58038022000 |
US $1.97 |
||
|
48
|
48
0908120153 Plug din0908-m12x1,5REGINA |
0908120153 |
US $3.81 |
||
|
50
|
50
58538023000 Oil pres.spring 5 bar red 2001REGINA |
58538023000 |
US $7.99 |
||
|
51
|
51
58038028000 Valve piston d=10mmREGINA |
58038028000 |
US $38.76 |
||
|
55
|
55
57330099000
Gasket Set 660 Sms '02
REGINA |
57330099000 |
— | ||
|
60
|
60
0015060253
Hh Collar Screw M6X25 Tx30
REGINA |
0015060253 |
— | ||
| replacement | |||||
|
60
|
60
0025060256 Hh collar screw m6x25 tx30REGINA |
0025060256 |
US $2.45 |
||
|
61
|
61
0015060303
Hh Collar Screw M6X30 Tx30
REGINA |
0015060303 |
— | ||
| replacement | |||||
|
61
|
61
0025060306 Hh collar screw m6x30 tx30REGINA |
0025060306 |
US $3.96 |
||
|
62
|
62
0015060353
Hh collar screw m 6x35 ws=8
REGINA |
0015060353 |
— | ||
| replacement | |||||
|
62
|
62
0025060356 Hh collar screw m6x35 tx30REGINA |
0025060356 |
US $6.15 |
||
|
63
|
63
0015060403
Hh Collar Screw M6X40 Tx30
REGINA |
0015060403 |
— | ||
| replacement | |||||
|
63
|
63
0025060406 Hh collar screw m6x40 tx30REGINA |
0025060406 |
US $2.23 |
||
|
66
|
66
0015060553 Hh collar screw m 6x55 ws=8REGINA |
0015060553 |
US $2.09 |
||
|
68
|
68
0015060653 Hh collar screw m 6x65 ws=8REGINA |
0015060653 |
US $1.12 |
||
