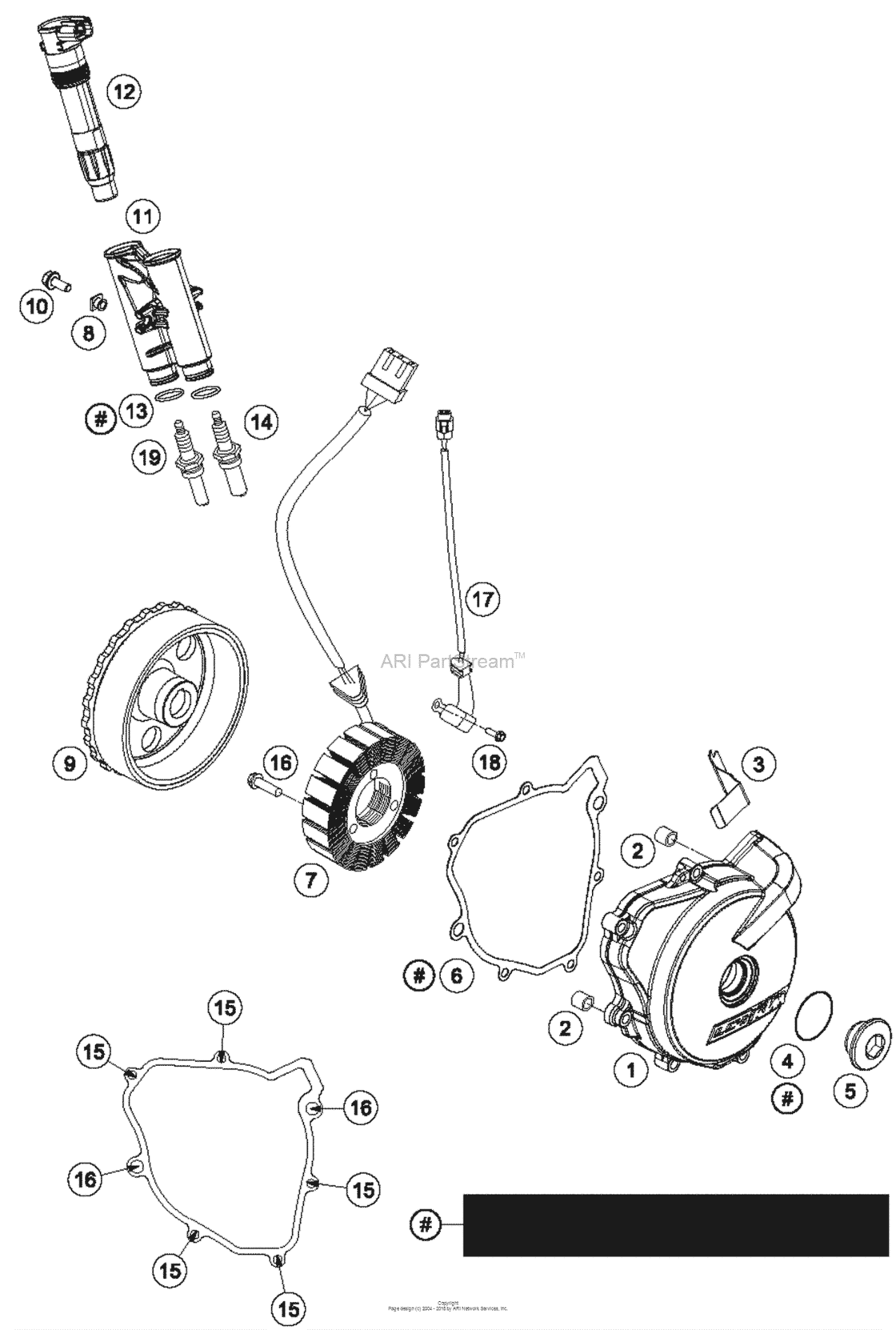

Ignition System Diagram KTM 690 690 Duke
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75030002000
Ignition cover 07
07 |
75030002000 |
— | ||
| replacement | |||||
|
1
|
1
7503000210041 Ignition Cover07 |
7503000210041 |
US $157.81 |
||
|
2
|
2
49030090000 Dowel 9,8 x 7 x 1007 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
2
|
2
49030090100 Dowel 9,8 X7X1007 |
49030090100 |
US $2.60 |
||
|
3
|
3
60039040020 Cable support generator 0303 |
60039040020 |
US $2.62 |
||
|
4
|
4
07700240251 O-ring 24x2,5 viton03 |
07700240251 |
US $3.96 |
||
|
5
|
5
6003009400030 Screw plug m24x1,5 pa 6.603 |
6003009400030 |
US $3.16 |
||
|
6
|
6
75030040000 Igniti.cover gasket 0707 |
75030040000 |
US $9.38 |
||
|
7
|
7
75039004100 Stator07 |
75039004100 |
US $316.95 |
||
| replacement | |||||
|
7
|
7
75039004200 Stator07 |
75039004200 |
US $316.95 |
||
|
8
|
8
76036075050 Inset07 |
76036075050 |
US $3.40 |
||
|
9
|
9
75039005200 Rotor07 |
75039005200 |
US $361.71 |
||
|
10
|
10
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
11
|
11
76036075000 Stick Coil HolderTX30 |
76036075000 |
US $9.44 |
||
|
12
|
12
76039006000 Stick CoilTX30 |
76039006000 |
US $86.55 |
||
|
13
|
13
0770180020 O-ring 18,00x2,00 nbr 70TX30 |
0770180020 |
US $2.64 |
||
|
14
|
14
60139093000 Spark plug m12x1,25 "8"TX30 |
60139093000 |
US $25.50 |
||
|
15
|
15
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
16
|
16
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
17
|
17
75039034000 Pulser coilTX30 |
75039034000 |
US $58.68 |
||
|
18
|
18
59009062016 Special screw m6x16 ws=8 10.9WS=8 |
59009062016 |
US $1.09 |
||
|
19
|
19
69139093000 Spark Plug Ngk Lmar7A-9WS=8 |
69139093000 |
US $50.12 |
||
