Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 7500300120033 Frame In.eh08In. Black Matt 08	7500300120033	US $1,524.73
2	2 7500300104901 Connection bracket eng. l/s 07 07	7500300104901	US $37.57
3	3 7500310104901 Connection bracket eng. r/s 07 07	7500310104901	US $37.57
4	4 014579080506S Cyl. screw din14579 m8x50 ss 07	014579080506S	US $4.45
5	5 75603015000 Special screw m10x129 hex8 08 08	75603015000	US $6.78
6	6 75003014000 Special screw m10x152 isk8 07 08	75003014000	US $5.76
7	7 54630044000 Collar nut m10 ws=13 WS=13	54630044000	US $2.16
8	8 54804067000 Chain sliding piece 03 03	54804067000	US $6.95
9	9 51103053051 Bushing 8,2x10x20 03	51103053051	US $3.06
10	10 0025080306 Hh collar screw m8x30 tx40 TX40	0025080306	US $3.89
11	11 0125080003 Washer din0125-a 8,4 TX40	0125080003	US $2.02
12	12 0019080206S Flat head screw m. isa45 m8x20 TX40	0019080206S	US $3.26
13	13 61003088000 Plug sfl28 05 05	61003088000	US $2.24
14	14 7500300200033 Sub frame black matt 05	7500300200033	US $570.95
15	15 0019100289S Countersunk screw isa45 m10x28 05	0019100289S	US $4.39
22	22 7560304800001S Footrest bracket rear l/s 05	7560304800001S	US $96.27
23	23 7560304900001S Footrest bracket rear r/s 05	7560304900001S	US $96.27
24	24 0019080306S Counter-sunk screw isa45 m8x30 05	0019080306S	US $1.12
30	30 60003050000 Footrest cpl. l/s rear 03 03	60003050000	US $77.69
31	31 60003051000 Footrest cpl. r/s rear 03 03	60003051000	US $53.92
32	32 60003044000 Bolt for footrest rear 03 03	60003044000	US $7.51
33	33 0799060003 Tab washer din6799-rs 6,0 03	0799060003	US $0.22
34	34 60003052000 Engage panel footrest r/s 03 03	60003052000	US $4.13
35	35 60003152000 Engage panel footrest l/s 03 03	60003152000	US $4.13
39	39 60003040033 Footpeg l/s+r/s cpl. 03 03	60003040033	US $158.15
	replacement
39	39 60003040133 Footpeg Ls+Rs Cpl 03	60003040133	US $144.93
40	40 59003040250 Footrest L/s 08 02	59003040250	US $70.60
	replacement
40	40 78003040050 Footrest l/s 08 02	78003040050	US $44.12
41	41 59003041250 Footrest R/s 08 02	59003041250	US $69.17
	replacement
41	41 78003041050 Footrest r/s 08 02	78003041050	US $44.12
42	42 54803044000 Pin For Foot Ped 51.5X9.8 Mm 03	54803044000	US $10.98
43	43 54603041000 Footrest Spring L/s & R/s 03	54603041000	US $3.52
44	44 0125100003 Washer Din0125-A10,5 03	0125100003	US $1.19
45	45 0094032253 Pin din0094-3,2x25 steel 03	0094032253	US $1.12
	replacement
45	45 0094032250 Pin din0094-3,2x25 steel 03	0094032250	US $1.12
46	46 60003040010 Footrest rubber front l/s 03 03	60003040010	US $19.16
47	47 60003041010 Footrest rubber front r/s 03 03	60003041010	US $19.16
48	48 60003044010 Closing panel front l/s r/s 03 03	60003044010	US $5.12
49	49 0985050003 Self Locking Nut Din0985-M 5 03	0985050003	US $3.26

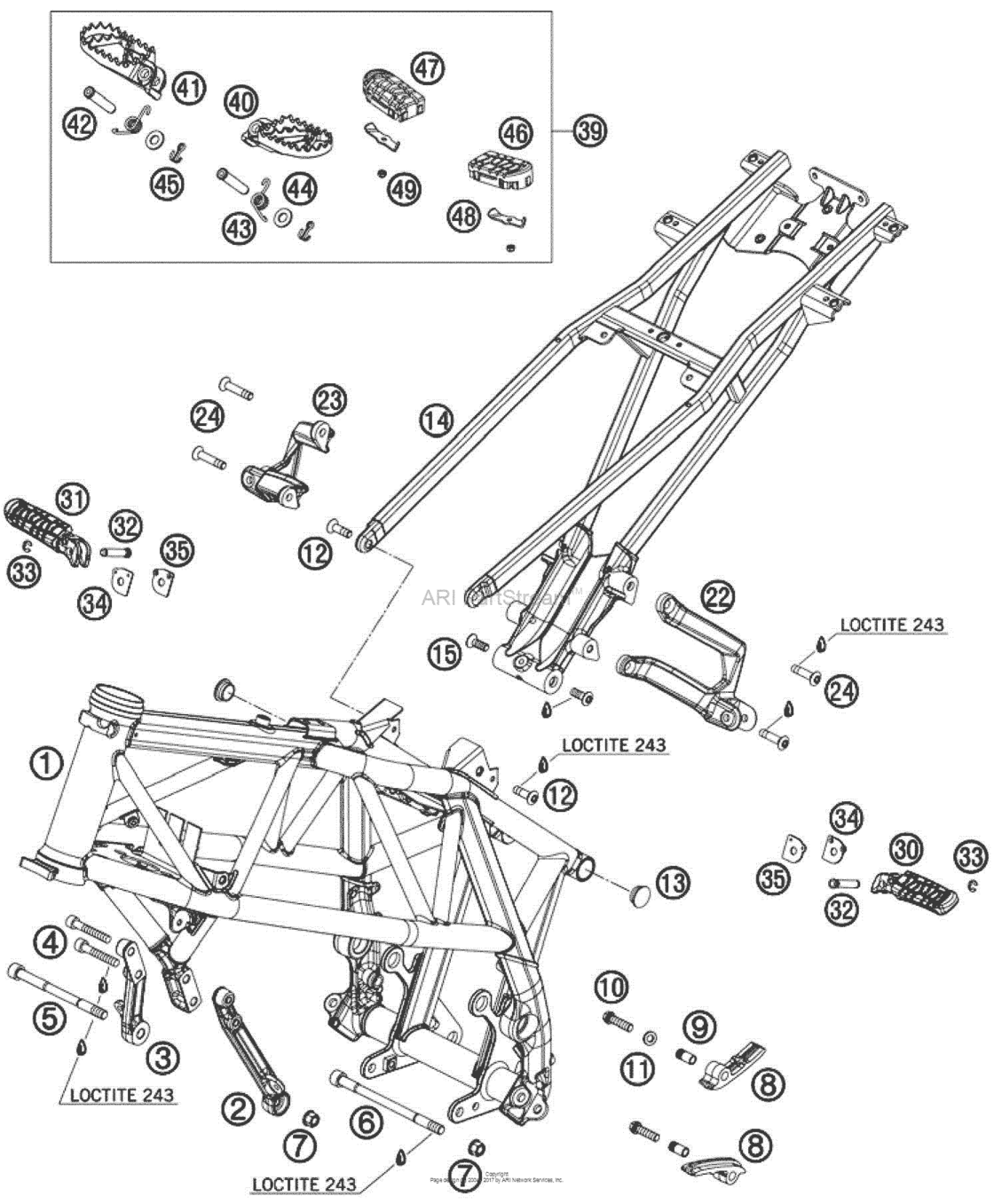

Frame Diagram KTM 690 690 Duke US/EU 18106950-940721

Frame Diagram KTM 690 690 Duke US/EU 18106950-940721
