Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 76002001000 Handlebar D= 28Mm TX30	76002001000	US $151.44
2	2 61002004000 Vibrations absorber 05 TX30	61002004000	US $35.72
3	3 0912060653 Ah Screw Din0912-M 6X65 TX30	0912060653	US $1.84
4	4 76002010000 Throttle Grip TX30	76002010000	US $31.64
5	5 76002021000 Grip Set Open End TX30	76002021000	US $48.77
7	7 58412040050 Support for mirror lc4 '98 98	58412040050	US $18.41
8	8 61112040000 Review mirror l/s 07 98	61112040000	US $42.18
9	9 61112041000 Review mirror r/s 07 98	61112041000	US $61.49
20	20 76502013000 Master Cylinder Magura D=11Mm 98	76502013000	US $348.47
21	21 76513005000 Clamp, Cyl. Pin, O-Ring 98	76513005000	US $70.92
22	22 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
23	23 83111049000 Clutch switch atv TX30	83111049000	US $109.70
24	24 76502031000 Clutch Lever Cpl. Long 13 TX30	76502031000	US $123.17
25	25 50302038200 Lever screw short cpl. 09 TX30	50302038200	US $29.50
27	27 76502046000 Push Rod Cpl. 13 TX30	76502046000	US $32.86
29	29 76502033000 Cover Hydr. Clutch Cpl. 13 TX30	76502033000	US $50.92
30	30 50302034100 Rubber for reservoir 09 TX30	50302034100	US $17.24
31	31 76502032000 Rep. Kit Piston 11Mm 13 TX30	76502032000	US $116.23
32	32 76502037000 Protect.cap For Lever Perch 13 TX30	76502037000	US $32.22
36	36 50302036200 Oil For Hyd. Clutch 100 Ml TX30	50302036200	US $19.23
37	37 76032063000 Clutch Pipe 1100Mm TX30	76032063000	US $109.31
39	39 76002056000 Distance Ring Light Switch TX30	76002056000	US $2.60
40	40 76011070100 Light Switch 14 TX30	76011070100	US $49.18
41	41 76011073100 Start-Stop/e-Gas TX30	76011073100	US $519.28

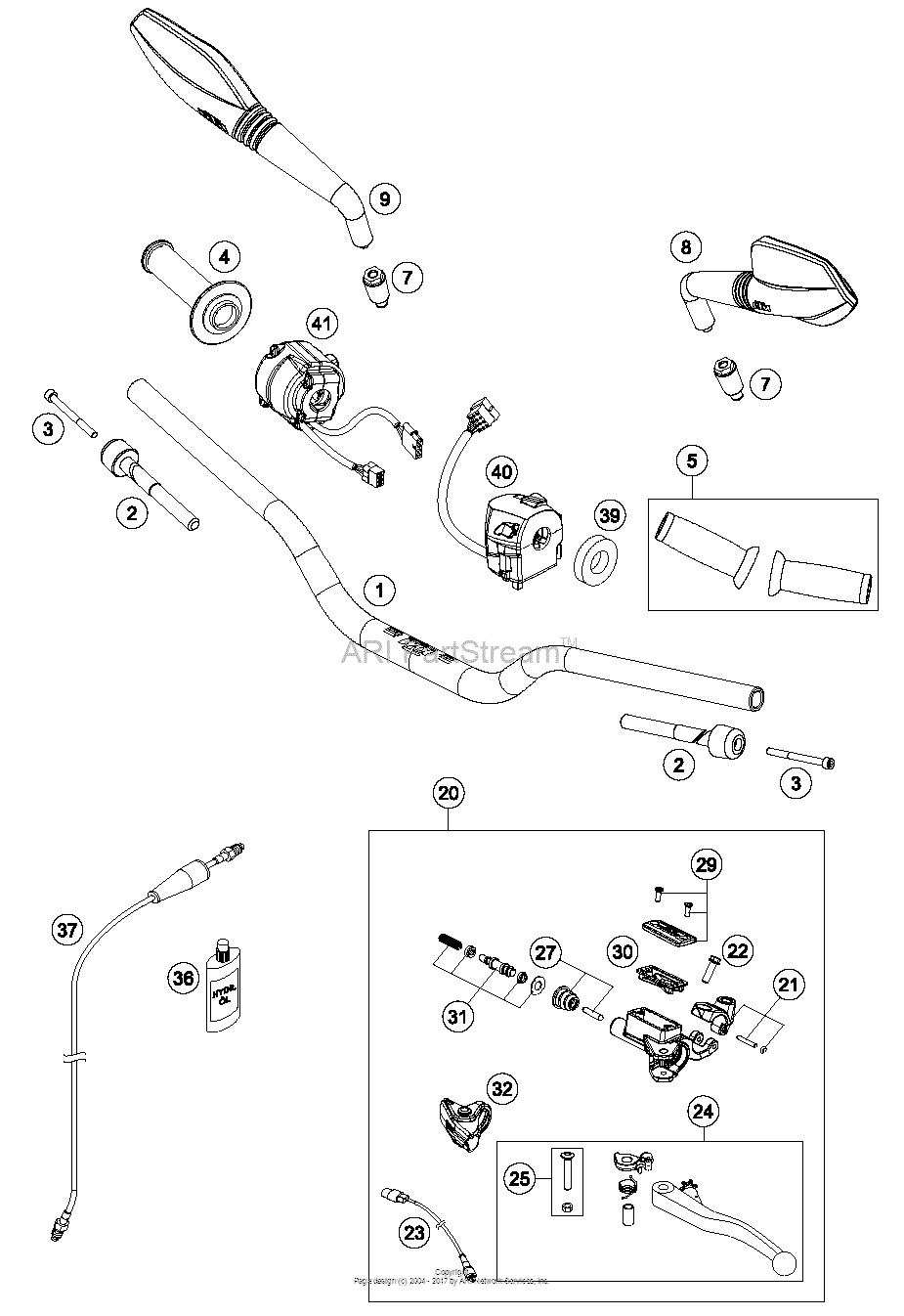

Handlebar, Controls Diagram KTM 690 690 Duke US/EU 18106708-940710

Handlebar, Controls Diagram KTM 690 690 Duke US/EU 18106708-940710
