Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 7650300120004 Frame 765La Orange Not Available WS=13	7650300120004	US $2,046.38
2	2 7650300500001 Engine Support L/s WS=13	7650300500001	US $93.55
3	3 7650300600001 Engine Support R/s WS=13	7650300600001	US $93.55
4	4 0035100249 Ah-collar screw m10x24 isa45 WS=13	0035100249	US $5.34
5	5 75003015000 Special screw m10x115 isk8 07 07	75003015000	US $6.41
6	6 75003014000 Special screw m10x152 isk8 07 07	75003014000	US $5.76
7	7 54630044000 Collar nut m10 ws=13 WS=13	54630044000	US $2.16
8	8 76504067000 Chain slid. guard 08 08	76504067000	US $6.38
9	9 54310086100 Self locking nut m10 cu ws=14 WS=14	54310086100	US $2.55
10	10 0025080206 Hh collar screw m8x20 tx40 TX40	0025080206	US $2.09
11	11 54603048500 Range change metal nut m4 TX40	54603048500	US $1.58
16	16 7650303804401 Foot Rest Bracket L/s TX40	7650303804401	US $234.79
17	17 7650303914401 Footrest Bracket Right TX40	7650303914401	US $270.76
	replacement
17	17 0125080003 Washer din0125-a 8,4 TX40	0125080003	US $2.02
18	18 0025080456 Hh collar screw m8x45 tx40 TX40	0025080456	US $3.04
20	20 7650304800001 Foot Rest Bracket Rear L/s TX40	7650304800001	US $128.57
	replacement
20	20 7650304800001S Foot rest bracket rear l/s TX40	7650304800001S	US $114.50
21	21 7650304900001 Foot Rest Bracket Rear R/s TX40	7650304900001	US $185.90
	replacement
21	21 7650304900001S Foot rest bracket rear r/s TX40	7650304900001S	US $111.71
22	22 76503038150 Heel protector ls 09 09	76503038150	US $4.42
23	23 76503039050 Heel protector rs 08 08	76503039050	US $4.85
24	24 0025080166 Hh collar screw m8x16 tx40 TX40	0025080166	US $2.35
26	26 0025080126 Hh collar screw m8x12 tx40 TX40	0025080126	US $1.82
30	30 60003050000 Footrest cpl. l/s rear 03 03	60003050000	US $77.69
31	31 60003051000 Footrest cpl. r/s rear 03 03	60003051000	US $53.92
32	32 60003044000 Bolt for footrest rear 03 03	60003044000	US $7.51
33	33 0799060003 Tab washer din6799-rs 6,0 03	0799060003	US $0.22
34	34 60003052000 Engage panel footrest r/s 03 03	60003052000	US $4.13
35	35 60003152000 Engage panel footrest l/s 03 03	60003152000	US $4.13
39	39 76503040033 Footrest l/s+r/s cpl. 08 08	76503040033	US $145.33
	replacement
39	39 78003040033 Footrest l/s + r/s cpl. 09 08	78003040033	US $118.13
40	40 59003040250 Footrest L/s 08 02	59003040250	US $70.60
	replacement
40	40 78003040050 Footrest l/s 08 02	78003040050	US $44.12
41	41 59003041250 Footrest R/s 08 02	59003041250	US $69.17
	replacement
41	41 78003041050 Footrest r/s 08 02	78003041050	US $44.12
42	42 76503044000 Bolt for foot ped 08 08	76503044000	US $7.53
43	43 54603041000 Footrest Spring L/s & R/s 08	54603041000	US $3.52
44	44 0125100003 Washer Din0125-A10,5 08	0125100003	US $1.19
45	45 0094032253 Pin din0094-3,2x25 steel 08	0094032253	US $1.12
	replacement
45	45 0094032250 Pin din0094-3,2x25 steel 08	0094032250	US $1.12
50	50 76503083100 Cover frame l/s 08	76503083100	US $11.59
51	51 76503084100 Cover frame r/s 08	76503084100	US $29.07
52	52 69008021080 Range change metal nut m5 08	69008021080	US $4.35
53	53 76503085000 Cover for ignition lock 08	76503085000	US $11.49
54	54 58605083014 Screw m5x14 torx 25 07 07	58605083014	US $1.58
55	55 0770080020 O-ring 8x2 silicone 07	0770080020	US $0.66
56	56 60038082000 Angle connector lc8 03 03	60038082000	US $16.81
57	57 76530087000 Ventilation oil separator foam 03	76530087000	US $29.46
58	58 0081050181 Screw for plastic k50x18 t20 03	0081050181	US $0.73
99	99 76504067010 Chain Sliding Below 08-13 08-10	76504067010	US $19.87

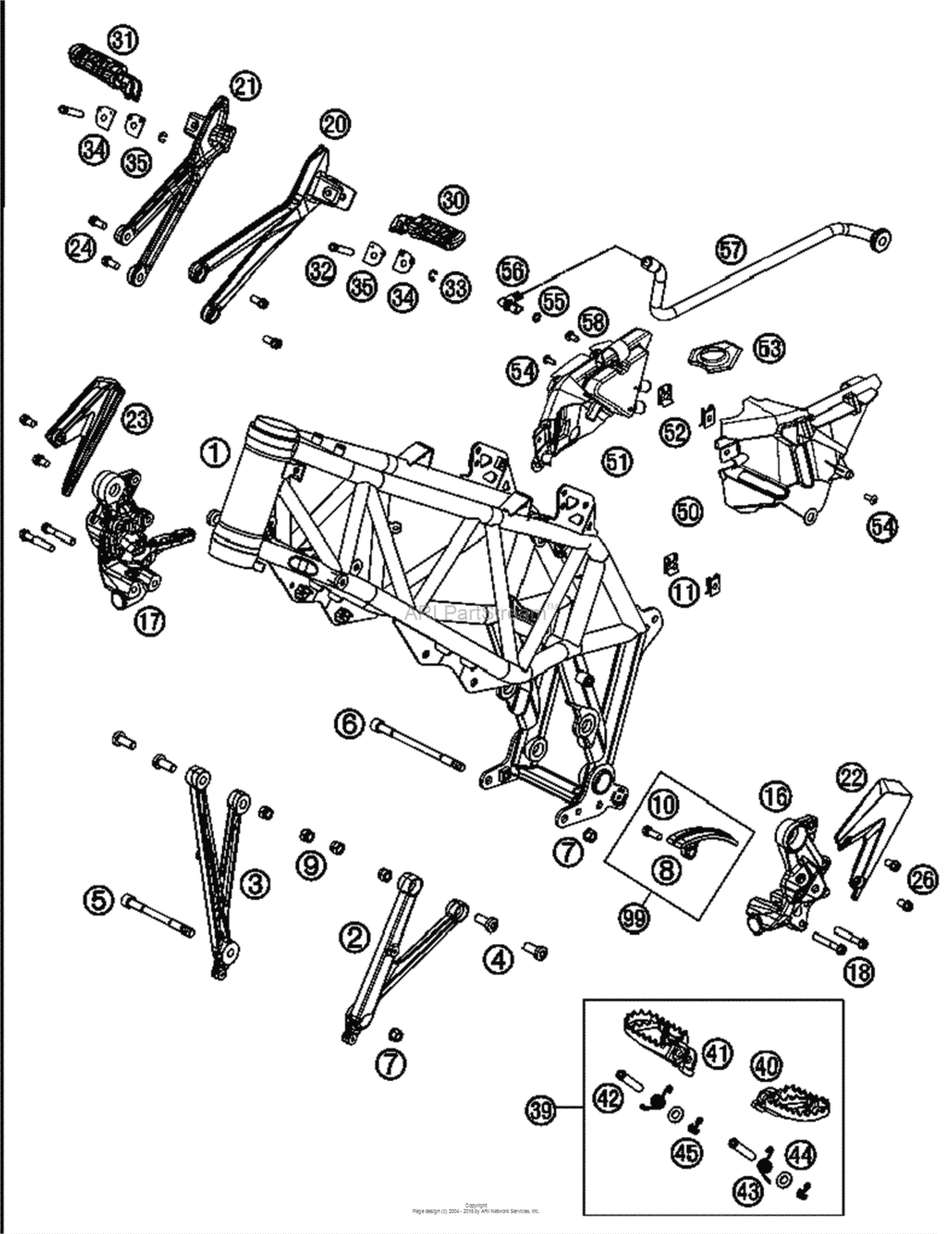

Frame Diagram KTM 690 690 Enduro US/EU 18107430-940741

Frame Diagram KTM 690 690 Enduro US/EU 18107430-940741
