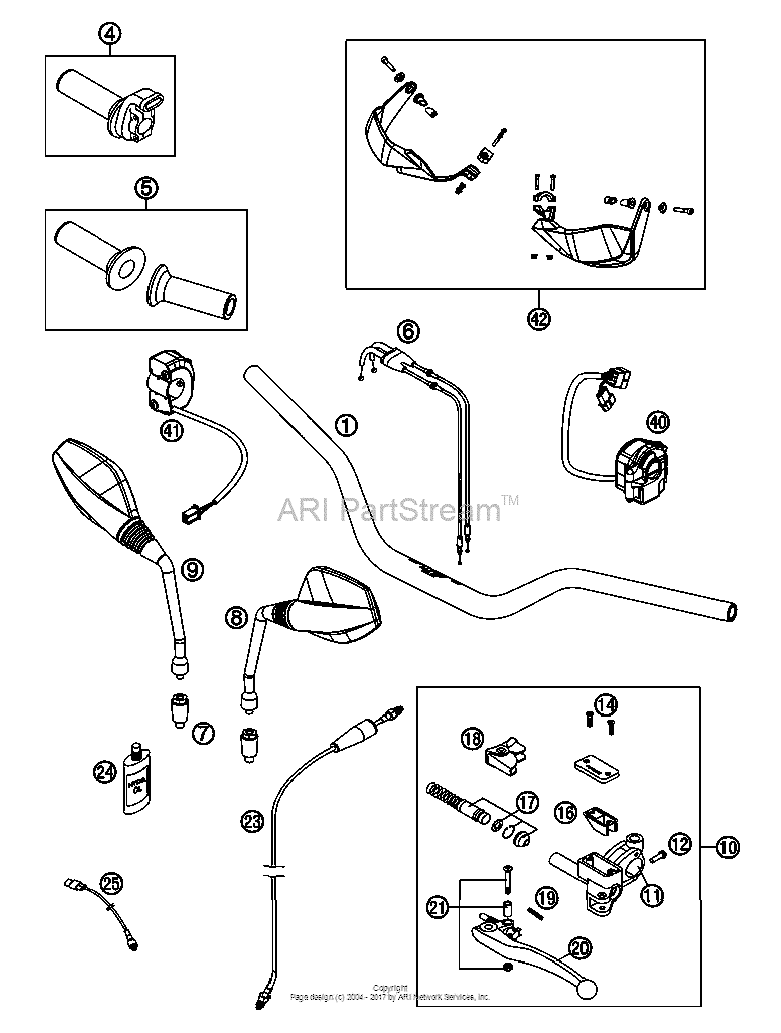

Handlebar, Controls Diagram KTM 690 690 Enduro
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 Enduro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200120017 Handlebar d=28 mm renthal 796AS REQUIRED, 06 |
5480200120017 |
US $205.73 |
||
| replacement | |||||
|
1
|
1
5480210120017 Handlebar D=28MmAS REQUIRED, 06 |
5480210120017 |
US $160.77 |
||
|
4
|
4
76502010000 Throttle grip cpl. 0808 |
76502010000 |
US $63.43 |
||
|
5
|
5
63002021200 Gripp set dual compound08 |
63002021200 |
US $33.32 |
||
|
6
|
6
75002091000 Throttle cable 0707 |
75002091000 |
US $100.86 |
||
|
7
|
7
58412040050 Support for mirror lc4 '98'98 |
58412040050 |
US $18.41 |
||
|
8
|
8
76512040000 Review mirror l/s'98 |
76512040000 |
US $41.43 |
||
|
9
|
9
76512041000 Review mirror r/s'98 |
76512041000 |
US $41.43 |
||
|
10
|
10
60002130000 Master cylinder magura d=10.5'98 |
60002130000 |
US $368.10 |
||
| replacement | |||||
|
10
|
10
76502013000 Master Cylinder Magura D=11Mm'98 |
76502013000 |
US $348.47 |
||
|
11
|
11
60002044000 Clamp mirror with clamp'98 |
60002044000 |
US $50.83 |
||
|
12
|
12
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
14
|
14
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
16
|
16
50302034000 Rubber for reservoir '9898 |
50302034000 |
US $16.18 |
||
|
17
|
17
50302032000 Rep.set piston magura d=10.598 |
50302032000 |
US $116.60 |
||
|
18
|
18
50302037000 Protect.cap For Lever Perch'9898 |
50302037000 |
US $20.74 |
||
|
19
|
19
59002035000 Spring for clutch lever 0303 |
59002035000 |
US $5.46 |
||
|
20
|
20
60002031000 Clutch lever long cpl. 20032003 |
60002031000 |
US $68.24 |
||
|
21
|
21
50302038000 Lever Screw Cpl. 125-200 '9898 |
50302038000 |
US $20.35 |
||
|
23
|
23
75032063000 Clutch pipe sm 0707 |
75032063000 |
US $85.32 |
||
|
24
|
24
50302036200 Oil For Hyd. Clutch 100 Ml07 |
50302036200 |
US $19.23 |
||
|
25
|
25
58411049100 Clutch switch 0303 |
58411049100 |
US $54.57 |
||
|
40
|
40
76511070000
Light switch l/s 08
08 |
76511070000 |
— | ||
| replacement | |||||
|
40
|
40
76511070100 Light switch l/s 0808 |
76511070100 |
US $164.51 |
||
|
41
|
41
76511074000 Start-emergency stop switch 0808 |
76511074000 |
US $53.06 |
||
|
42
|
42
6020217900004
* Hanguards Closed, Orange
08 |
6020217900004 |
— | ||
