Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5480210120017 Handlebar D=28Mm TX30	5480210120017	US $160.77
2	2 76502110000 Throttle Grip E-Gas TX30	76502110000	US $51.66
3	3 63002021200 Gripp set dual compound TX30	63002021200	US $33.32
4	4 76511070000 Light switch l/s 08 TX30	76511070000	—
	replacement
4	4 76511070100 Light switch l/s 08 TX30	76511070100	US $164.51
5	5 6030217910030 Handguard Closed Black High TX30	6030217910030	—
6	6 76011073100 Start-Stop/e-Gas TX30	76011073100	US $519.28
7	7 58412040050 Support for mirror lc4 '98 '98	58412040050	US $18.41
8	8 76512040000 Review mirror l/s '98	76512040000	US $41.43
9	9 76512041000 Review mirror r/s '98	76512041000	US $41.43
10	10 76502030144 Master Cylinder Dot Cpl. 11Mm '98	76502030144	US $583.19
11	11 76513005000 Clamp, Cyl. Pin, O-Ring '98	76513005000	US $70.92
12	12 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
13	13 25002033000 Cover Hydr. Clutch Dot Cpl TX30	25002033000	US $30.79
14	14 76502046000 Push Rod Cpl. 13 TX30	76502046000	US $32.86
16	16 27002032000 Rep. Kit Piston Dot 11Mm TX30	27002032000	US $131.80
17	17 76502037000 Protect.cap For Lever Perch 13 TX30	76502037000	US $32.22
18	18 76502031000 Clutch Lever Cpl. Long 13 TX30	76502031000	US $123.17
19	19 50302038200 Lever screw short cpl. 09 TX30	50302038200	US $29.50
20	20 54732063100 Clutch pipe 250/300 2003 2003	54732063100	US $128.55
21	21 50302036200 Oil For Hyd. Clutch 100 Ml 2003	50302036200	US $19.23
22	22 83111049000 Clutch switch atv 2003	83111049000	US $109.70

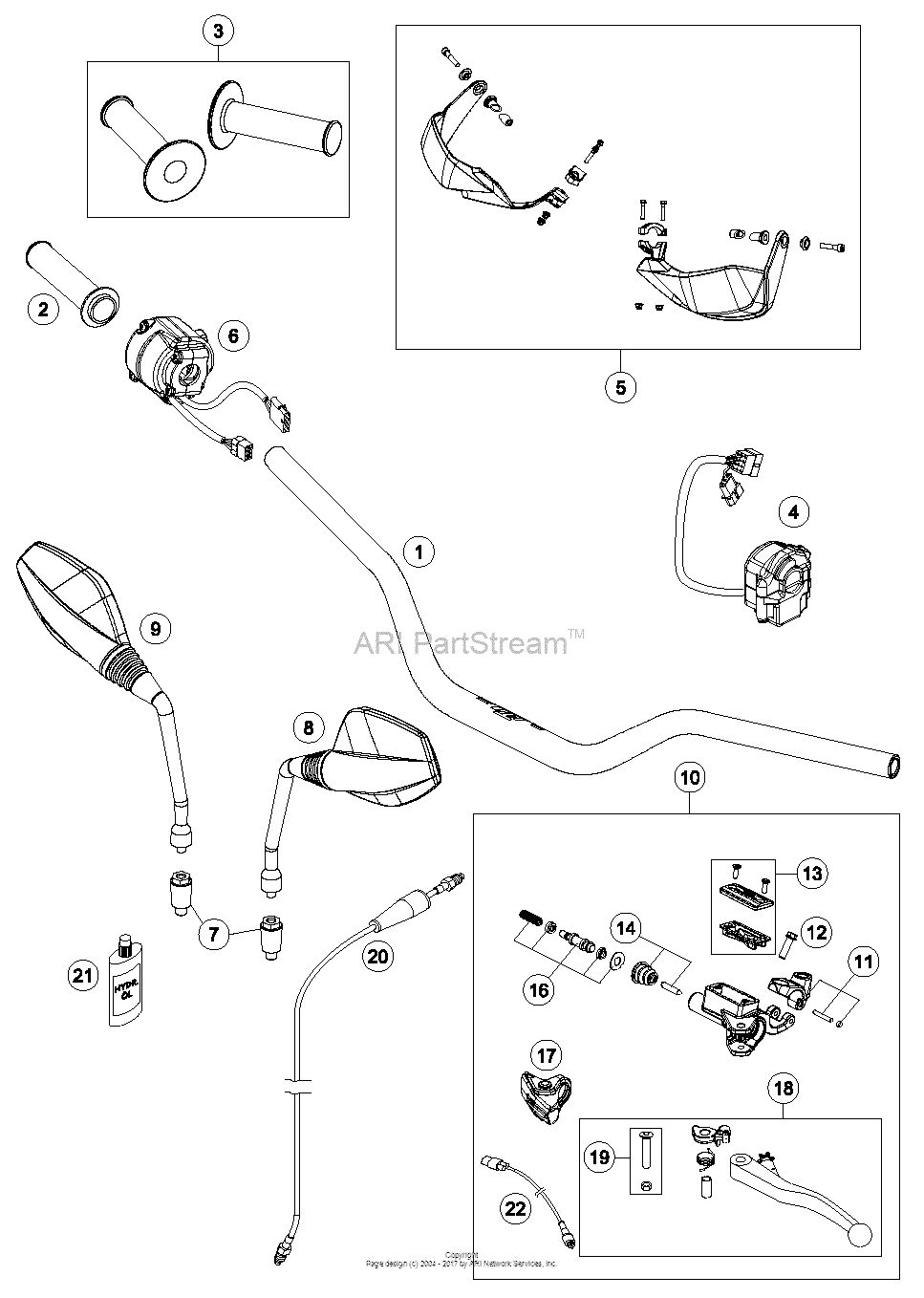

Handlebar, Controls Diagram KTM 690 690 Enduro R US/EU 18107194-940731
