	Description	OEM Part #	Price
1	1 5480200120017 Handlebar d=28 mm renthal 796 TX30	5480200120017	US $205.73
	replacement
1	1 5480210120017 Handlebar D=28Mm TX30	5480210120017	US $160.77
2	2 76502110000 Throttle Grip E-Gas TX30	76502110000	US $51.66
3	3 63002021200 Gripp set dual compound TX30	63002021200	US $33.32
4	4 76511070000 Light switch l/s 08 TX30	76511070000	—
	replacement
4	4 76511070100 Light switch l/s 08 TX30	76511070100	US $164.51
5	5 6030217900030 Handguard Closed Black High TX30	6030217900030	—
	replacement
5	5 6030217910030 Handguard Closed Black High TX30	6030217910030	—
6	6 76011073100 Start-Stop/e-Gas TX30	76011073100	US $519.28
7	7 58412040050 Support for mirror lc4 '98 1998	58412040050	US $18.41
8	8 76512040000 Review mirror l/s 1998	76512040000	US $41.43
9	9 76512041000 Review mirror r/s 1998	76512041000	US $41.43
10	10 76502013000 Master Cylinder Magura D=11Mm 1998	76502013000	US $348.47
11	11 76513005000 Clamp, Cyl. Pin, O-Ring 1998	76513005000	US $70.92
12	12 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
13	13 76502033144 Plastic Cover- Set TX30	76502033144	US $28.90
14	14 76502046000 Push Rod Cpl. 13 TX30	76502046000	US $32.86
15	15 50302034100 Rubber for reservoir 09 TX30	50302034100	US $17.24
16	16 76502032000 Rep. Kit Piston 11Mm 13 TX30	76502032000	US $116.23
17	17 76502037000 Protect.cap For Lever Perch 13 TX30	76502037000	US $32.22
18	18 76502031000 Clutch Lever Cpl. Long 13 TX30	76502031000	US $123.17
19	19 50302038200 Lever screw short cpl. 09 TX30	50302038200	US $29.50
20	20 54732063100 Clutch pipe 250/300 2003 2003	54732063100	US $128.55
21	21 50302036200 Oil For Hyd. Clutch 100 Ml 2003	50302036200	US $19.23

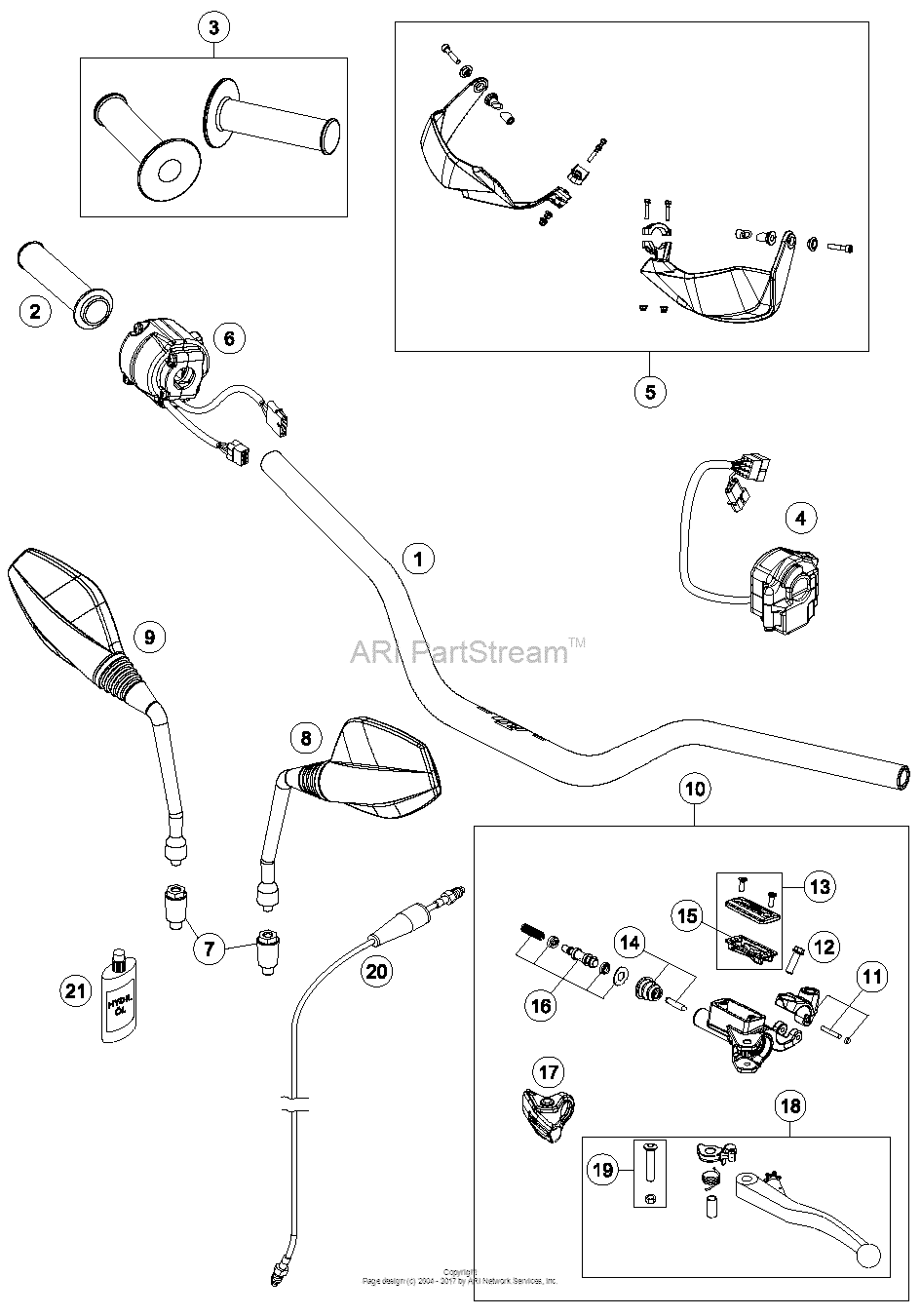

Handleber, Controls Diagram KTM 690 690 Enduro R US/EU 18107335-940737

Handleber, Controls Diagram KTM 690 690 Enduro R US/EU 18107335-940737
