	Description	OEM Part #	Price
1	1 7650300100033 Frame "ec08" black matt 08 08	7650300100033	US $1,517.71
	replacement
1	1 7650300110033 FRAME "765KA" BLACK MATT 08	7650300110033	US $3,095.73
2	2 7650300500001S Engine support left side 08 08	7650300500001S	US $98.31
3	3 7650300600001S Engine support right side 08 08	7650300600001S	US $96.34
4	4 0035100249 Ah-collar screw m10x24 isa45 08	0035100249	US $5.34
5	5 75003015000 Special screw m10x115 isk8 07 08	75003015000	US $6.41
6	6 75003014000 Special screw m10x152 isk8 07 08	75003014000	US $5.76
7	7 54630044000 Collar nut m10 ws=13 08	54630044000	US $2.16
8	8 76504067000 Chain slid. guard 08 08	76504067000	US $6.38
9	9 54310086100 Self locking nut m10 cu ws=14 08	54310086100	US $2.55
10	10 0025080206 Hh collar screw m8x20 tx40 TX40	0025080206	US $2.09
16	16 7650303804401S Footrest bracket l/s 08 08	7650303804401S	US $143.02
17	17 7650303904401S Footrest bracke r/s 08 08	7650303904401S	US $162.91
	replacement
17	17 0025080256S Hh collar screw m8x25 tx40 08	0025080256S	US $2.09
18	18 0025080456 Hh collar screw m8x45 tx40 TX40	0025080456	US $3.04
20	20 7650304800001S Foot rest bracket rear l/s TX40	7650304800001S	US $114.50
21	21 7650304900001S Foot rest bracket rear r/s TX40	7650304900001S	US $111.71
22	22 76503038050 Heel protector ls 08 08	76503038050	US $4.79
	replacement
22	22 76503038150 Heel protector ls 09 08	76503038150	US $4.42
23	23 76503039050 Heel protector rs 08 08	76503039050	US $4.85
24	24 0025080166 Hh collar screw m8x16 tx40 TX40	0025080166	US $2.35
26	26 0025080126 Hh collar screw m8x12 tx40 TX40	0025080126	US $1.82
30	30 60003050000 Footrest cpl. l/s rear 03 03	60003050000	US $77.69
31	31 60003051000 Footrest cpl. r/s rear 03 03	60003051000	US $53.92
32	32 60003044000 Bolt for footrest rear 03 03	60003044000	US $7.51
33	33 0799060003 Tab washer din6799-rs 6,0 03	0799060003	US $0.22
34	34 60003052000 Engage panel footrest r/s 03 03	60003052000	US $4.13
35	35 60003152000 Engage panel footrest l/s 03 03	60003152000	US $4.13
39	39 76503040033 Footrest l/s+r/s cpl. 08 08	76503040033	US $145.33
	replacement
39	39 78003040033 Footrest l/s + r/s cpl. 09 08	78003040033	US $118.13
40	40 59003040250 Footrest L/s 08 02	59003040250	US $70.60
	replacement
40	40 78003040050 Footrest l/s 08 02	78003040050	US $44.12
41	41 59003041250 Footrest R/s 08 02	59003041250	US $69.17
	replacement
41	41 78003041050 Footrest r/s 08 02	78003041050	US $44.12
42	42 76503044000 Bolt for foot ped 08 08	76503044000	US $7.53
43	43 54603041000 Footrest Spring L/s & R/s 08	54603041000	US $3.52
44	44 0125100003 Washer Din0125-A10,5 08	0125100003	US $1.19
45	45 0094032253 Pin din0094-3,2x25 steel 08	0094032253	US $1.12
	replacement
45	45 0094032250 Pin din0094-3,2x25 steel 08	0094032250	US $1.12
50	50 76503083000 Cover frame l/s 08	76503083000	US $8.52
51	51 76503084000 Cover frame r/s 08	76503084000	US $24.68
	replacement
51	51 76503085000 Cover for ignition lock 08	76503085000	US $11.49
52	52 69008021080 Range change metal nut m5 08	69008021080	US $4.35
53	53 76503075000 Spread rivet cpl. 6,2mm 08	76503075000	US $2.14
54	54 58605083014 Screw m5x14 torx 25 07 07	58605083014	US $1.58
55	55 0770080020 O-ring 8x2 silicone 07	0770080020	US $0.66
56	56 60038082000 Angle connector lc8 03 03	60038082000	US $16.81
57	57 76530087000 Ventilation oil separator foam 03	76530087000	US $29.46

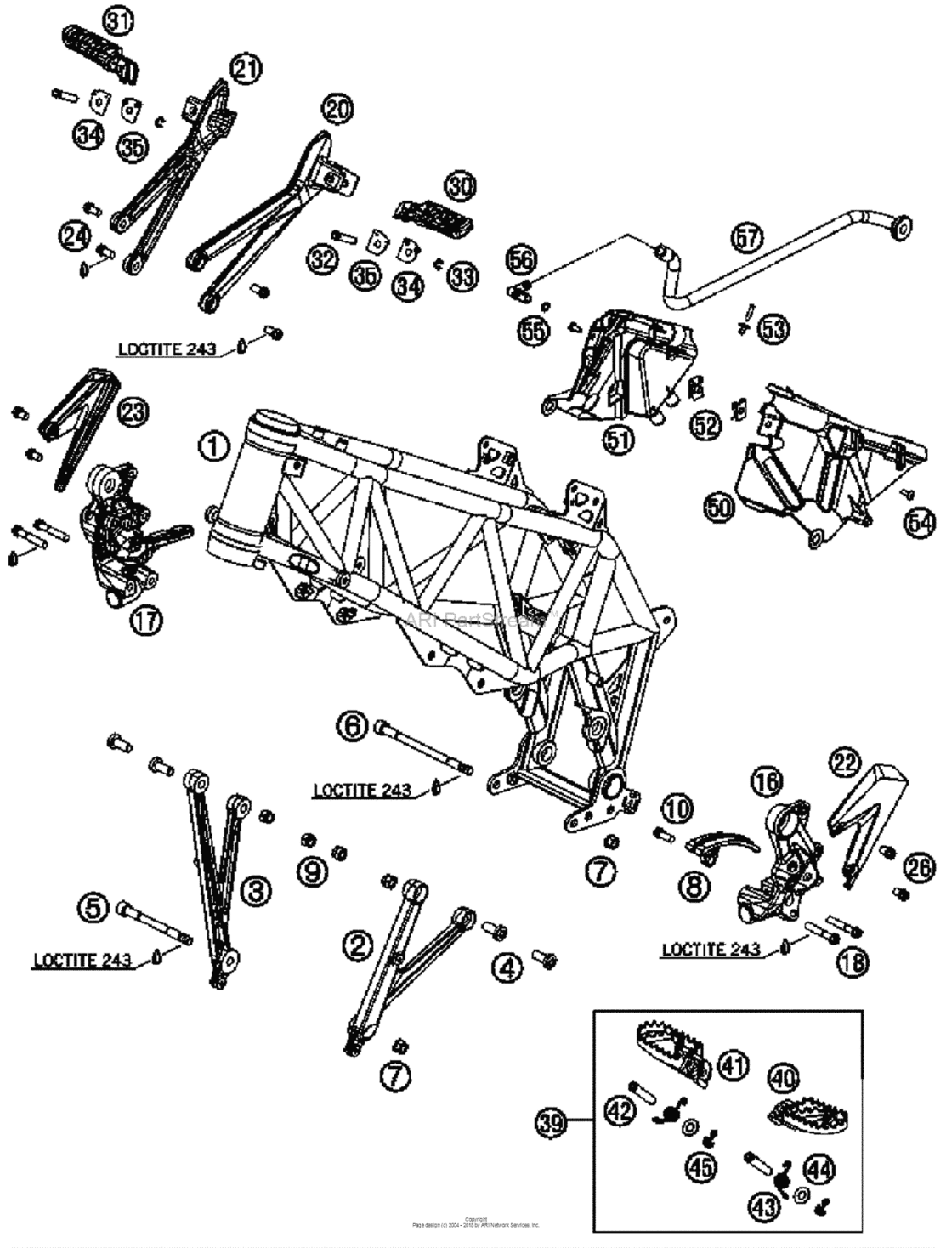

Frame Diagram KTM 690 690 SMC US/EU 18107650-940751

Frame Diagram KTM 690 690 SMC US/EU 18107650-940751
