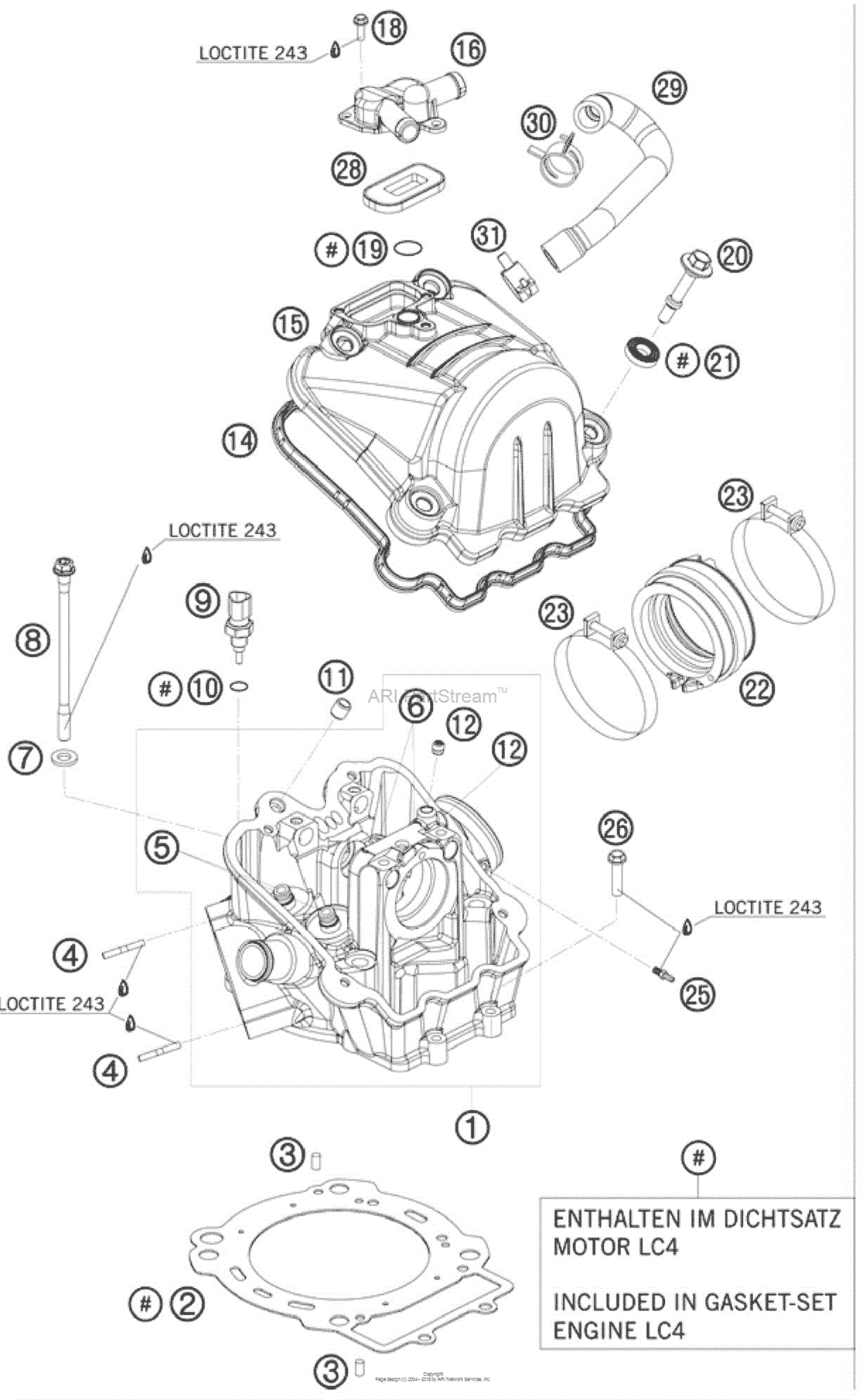

Cylinder Head Diagram KTM 690 690 SMC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75036020144 Cylinder head cpl.07 |
75036020144 |
US $696.08 |
||
| replacement | |||||
|
1
|
1
7503602014452 Cylinder Head Cpl07 |
7503602014452 |
US $633.23 |
||
|
2
|
2
75030036000 Cylinder head gasket 0707 |
75030036000 |
US $61.61 |
||
|
3
|
3
0474050100 Grooved pin din1474 5x1007 |
0474050100 |
US $2.60 |
||
|
4
|
4
0835080256 Stud din0835-m 8x25 10.907 |
0835080256 |
US $2.72 |
||
|
5
|
5
60036026101 Valve giude exhaust07 |
60036026101 |
US $25.26 |
||
|
6
|
6
60036025101 Valve giude intake07 |
60036025101 |
US $9.69 |
||
|
7
|
7
60036078050 Shim 10,2x19x1,5mm 0505 |
60036078050 |
US $3.89 |
||
|
8
|
8
75036079000 Cylinderhead screw m10x168ws1405 |
75036079000 |
US $11.82 |
||
|
9
|
9
75035047000 Temperature sensor water 0707 |
75035047000 |
US $42.11 |
||
|
10
|
10
0770100020 O-ring 10,00x2,00 silcone07 |
0770100020 |
US $2.02 |
||
|
11
|
11
49030090000 Dowel 9,8 x 7 x 1007 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
11
|
11
49030090100 Dowel 9,8 X7X1007 |
49030090100 |
US $2.60 |
||
|
12
|
12
59030296000 Screw plug07 |
59030296000 |
US $5.49 |
||
|
14
|
14
75036053000 Valve cover gasket 0707 |
75036053000 |
US $25.18 |
||
|
15
|
15
75036052000 Valve cover 0707 |
75036052000 |
US $54.72 |
||
|
16
|
16
75036052050 Breather cover 0707 |
75036052050 |
US $8.26 |
||
|
18
|
18
07984050100 Ah Screw Din7984 M5X10 A207 |
07984050100 |
US $0.58 |
||
|
19
|
19
0770150151 O-ring 15,00x1,50 viton07 |
0770150151 |
US $2.60 |
||
|
20
|
20
75036055000 Valve cover screw 0505 |
75036055000 |
US $3.50 |
||
|
21
|
21
75036052010 Decoupling element 0707 |
75036052010 |
US $5.20 |
||
|
22
|
22
75036044000 Intake boot 0707 |
75036044000 |
US $45.37 |
||
|
23
|
23
75036047000 Hose clamp gemi 70mm07 |
75036047000 |
US $9.28 |
||
|
25
|
25
60036023100 Vacuum conection m6/0,5mm07 |
60036023100 |
US $28.76 |
||
|
26
|
26
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
28
|
28
60005026000 Sls-valve 0303 |
60005026000 |
US $20.60 |
||
|
29
|
29
76530088000 Pre.hose oil separator foam 0808 |
76530088000 |
US $19.74 |
||
|
30
|
30
00049200121 Clamp std dn2008 |
00049200121 |
US $1.04 |
||
|
31
|
31
00049210121 Clamp 21x12 std-des08 |
00049210121 |
US $2.33 |
||
