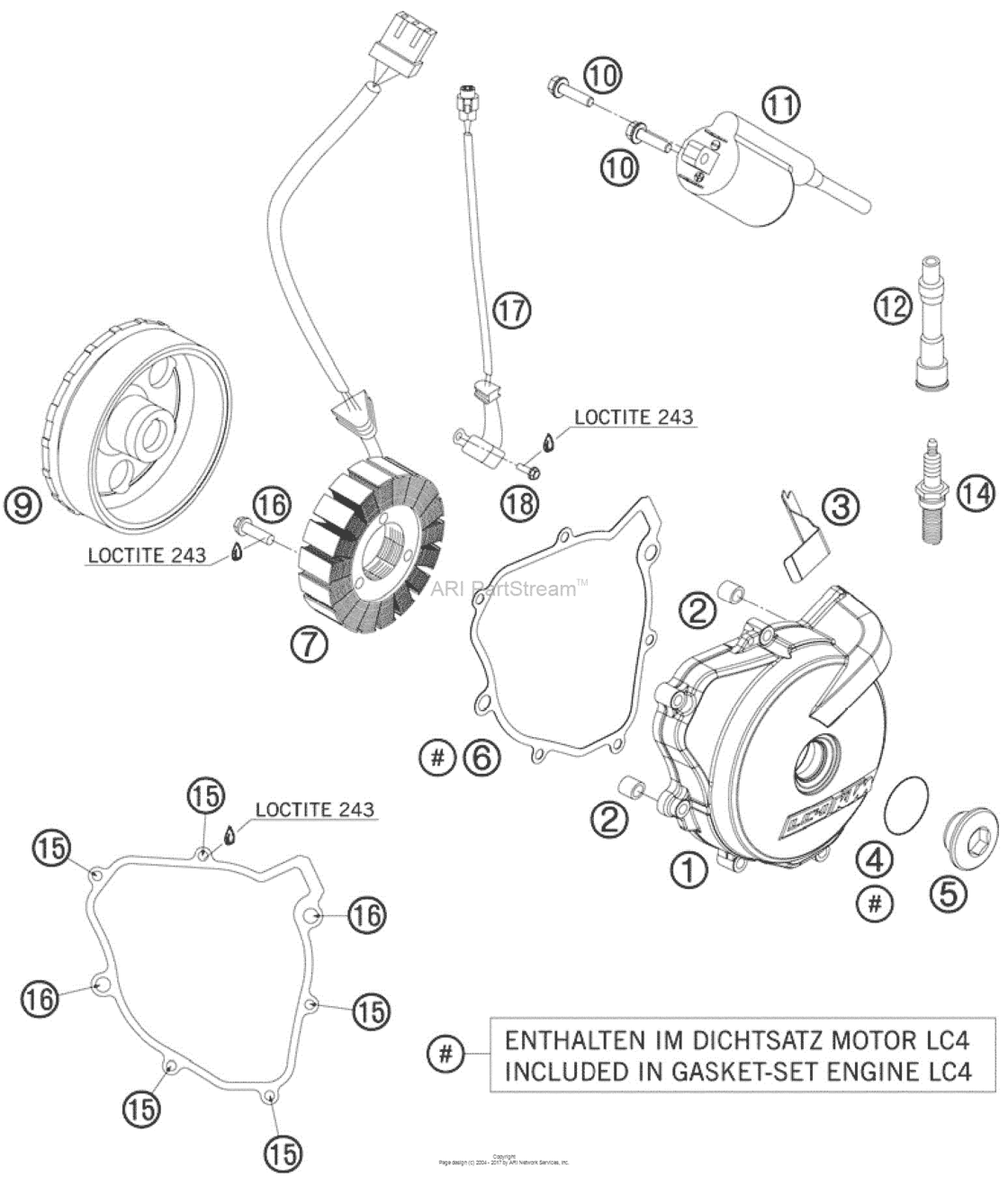

Ignition System Diagram KTM 690 690 SMC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 690
- Model
- 690 SMC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75030002000
Ignition cover 07
07 |
75030002000 |
— | ||
| replacement | |||||
|
1
|
1
7503000210041 Ignition Cover07 |
7503000210041 |
US $157.81 |
||
|
2
|
2
49030090000 Dowel 9,8 x 7 x 1007 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
2
|
2
49030090100 Dowel 9,8 X7X1007 |
49030090100 |
US $2.60 |
||
|
3
|
3
60039040020 Cable support generator 0303 |
60039040020 |
US $2.62 |
||
|
4
|
4
07700240251 O-ring 24x2,5 viton03 |
07700240251 |
US $3.96 |
||
|
5
|
5
6003009400030 Screw plug m24x1,5 pa 6.603 |
6003009400030 |
US $3.16 |
||
|
6
|
6
75030040000 Igniti.cover gasket 0707 |
75030040000 |
US $9.38 |
||
|
7
|
7
75039004000 Stator07 |
75039004000 |
US $343.57 |
||
|
9
|
9
75039005000 Flywheel07 |
75039005000 |
US $326.04 |
||
|
10
|
10
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
11
|
11
75039006000 Ignitioncoil 0707 |
75039006000 |
US $56.02 |
||
|
12
|
12
75039090000 Spark plug connect.07 |
75039090000 |
US $20.03 |
||
|
14
|
14
75039093000 Spark plug m12x1,25 lkar8ai-907 |
75039093000 |
US $26.61 |
||
|
15
|
15
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
16
|
16
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
17
|
17
75039034000 Pulser coilTX30 |
75039034000 |
US $58.68 |
||
|
18
|
18
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
