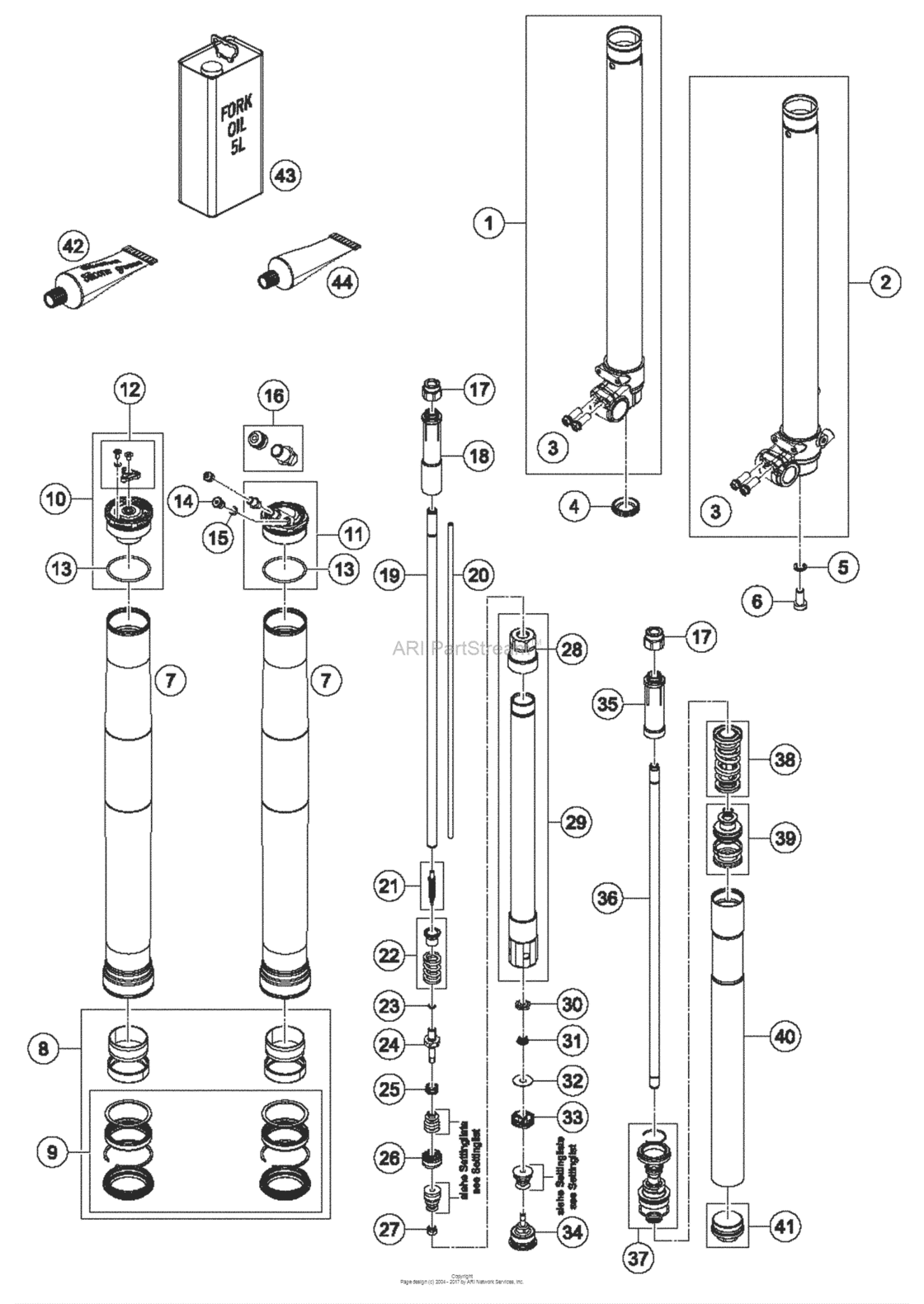

Front Fork Disassembled Diagram KTM 85 85 SX 17/14
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX 17/14
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43570818S1
Axle Clamp Right + Tube 85Sx Cpl
TX40 |
43570818S1 |
— | ||
|
2
|
2
43570817S1
Axle Clamp Left + Tube 85Sx Cpl
TX40 |
43570817S1 |
— | ||
|
3
|
3
0025080206 Hh collar screw m8x20 tx40TX40 |
0025080206 |
US $2.09 |
||
|
4
|
4
48600141 Rubber cap d=35mmTX40 |
48600141 |
US $3.42 |
||
|
5
|
5
48601249
Usit Ring 10,7X16X1,5 Nbr Usf
TX40 |
48601249 |
— | ||
|
6
|
6
00501020
Isk Schraube M10X20
TX40 |
00501020 |
— | ||
|
7
|
7
43570614E Outer Tube L510 D49/53TX40 |
43570614E |
US $314.04 |
||
|
8
|
8
RP10017
Revision Kit 43Mm
TX40 |
RP10017 |
— | ||
|
9
|
9
R516
Gasket Set 43Mm Hd+ Red
TX40 |
R516 |
— | ||
|
10
|
10
43570807S
Screw Cap M46X1,5 Cpl
TX40 |
43570807S |
— | ||
|
11
|
11
43570814S
Screw Cap M46X1,5 Dia49 Cpl
TX40 |
43570814S |
— | ||
|
12
|
12
RP10016
Adjuster Kit Rebound
TX40 |
RP10016 |
— | ||
|
13
|
13
43570023 O-ring nbr 41x2TX40 |
43570023 |
US $3.69 |
||
|
14
|
14
48601495 Plug Screw M8X1 Bn44TX40 |
48601495 |
US $15.03 |
||
|
15
|
15
48600044 O-ring nbr 6x1,5TX40 |
48600044 |
US $1.14 |
||
|
16
|
16
48601494S Valve M8X1 Incl. Screw CapTX40 |
48601494S |
US $52.39 |
||
|
17
|
17
43570859
Counternut M12X1 Hex22
TX40 |
43570859 |
— | ||
|
18
|
18
43570856
Stop L=115
TX40 |
43570856 |
— | ||
|
19
|
19
48601811
Piston Rod D12 L 477,5Mm
TX40 |
48601811 |
— | ||
|
20
|
20
48601812
Eiadjustment Tube L 445,1 D6
TX40 |
48601812 |
— | ||
|
21
|
21
48600277S Adjusting Needle CplTX40 |
48600277S |
US $11.95 |
||
|
22
|
22
48600578S Spring Rebound + Spring GuideTX40 |
48600578S |
US $7.06 |
||
|
23
|
23
48600299 O-ring 6x1,2 nbrTX40 |
48600299 |
US $3.52 |
||
|
24
|
24
48600576 Piston rod reboundTX40 |
48600576 |
US $14.28 |
||
|
25
|
25
35480377 Spring check valve d=0,5TX40 |
35480377 |
US $2.53 |
||
|
26
|
26
48600575S1 Piston CplTX40 |
48600575S1 |
US $29.43 |
||
|
27
|
27
40540486 Nut m6x0,5 reboundTX40 |
40540486 |
US $5.20 |
||
|
28
|
28
43570852S
Schraubhulse M27X0,8 Kpl
TX40 |
43570852S |
— | ||
|
29
|
29
48600870S3
Cartridge Cpl
TX40 |
48600870S3 |
— | ||
|
30
|
30
48600163 Check valve nut m6x0,5 d=2TX40 |
48600163 |
US $13.80 |
||
|
31
|
31
48600202 Spring check valve d=0,7TX40 |
48600202 |
US $2.28 |
||
|
32
|
32
48600061 Check valve 8x24x0,4TX40 |
48600061 |
US $4.32 |
||
|
33
|
33
48600047S Piston + O-RingTX40 |
48600047S |
US $16.32 |
||
|
34
|
34
48600586S
Tap compression cpl. 07
TX40 |
48600586S |
— | ||
| replacement | |||||
|
34
|
34
48600586E Tap Compression CplTX40 |
48600586E |
US $96.46 |
||
|
35
|
35
43570819
Stop L=78,5
TX40 |
43570819 |
— | ||
|
36
|
36
48601501
Piston Rod D12 M12X1 M11,5X1
TX40 |
48601501 |
— | ||
|
37
|
37
48601452S1 Screw Sleeve Air CplTX40 |
48601452S1 |
US $153.48 |
||
|
38
|
38
48601820S1
Rebound Spring Cpl
TX40 |
48601820S1 |
— | ||
|
39
|
39
43570844S
Main Piston Dia34 Aer43
TX40 |
43570844S |
— | ||
|
40
|
40
48601571S2
Tube Idia34 L=410 Air
TX40 |
48601571S2 |
— | ||
|
41
|
41
43570845S
Adapter M35,5X0,8 M10 Cpl
TX40 |
43570845S |
— | ||
|
42
|
42
T14034 Fuchs Grease Ipr (250G)TX40 |
T14034 |
US $35.34 |
||
|
43
|
43
48601166S1 Fork Oil Sae4 5LTX40 |
48601166S1 |
US $218.08 |
||
|
44
|
44
00062010051 Centoplex 2 Ep - 45G Mp-GreaseTX40 |
00062010051 |
US $19.84 |
||
