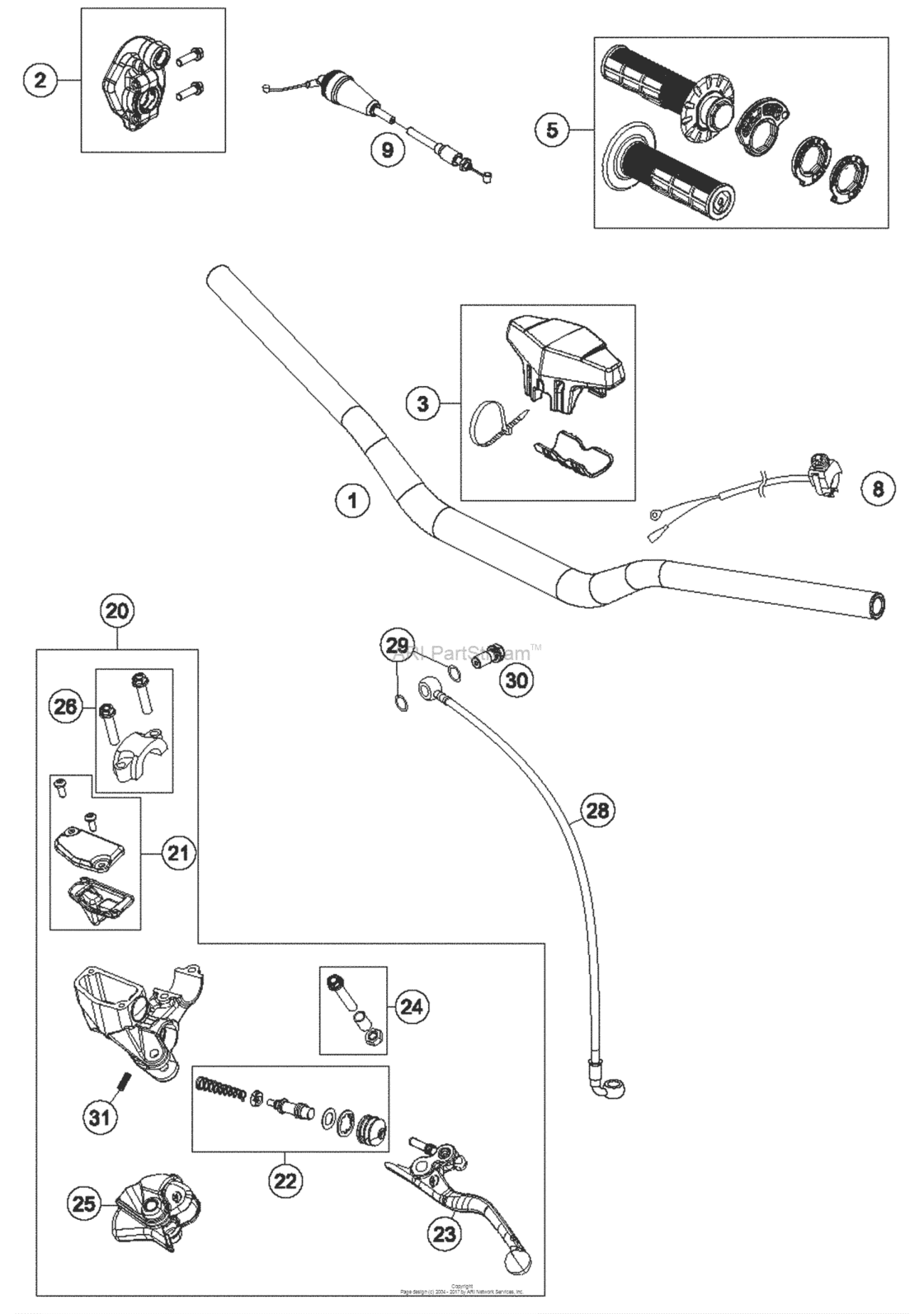

Handlebar, Controls Diagram KTM 85 85 SX 17/14
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX 17/14
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
47102001000 Handlebar 85Sx 20132013 |
47102001000 |
US $112.83 |
||
|
|
50402010025 Throttle Body Cpl2013 |
50402010025 |
US $65.47 |
||
|
|
77202002144 Bar Pad Cpl2013 |
77202002144 |
US $26.96 |
||
|
|
79002021100
Grip Set
2013 |
79002021100 |
— | ||
| replacement | |||||
|
|
79002021200 Grip set2013 |
79002021200 |
US $27.08 |
||
|
|
50311089200 Short Circuit Button 022013 |
50311089200 |
US $50.97 |
||
|
|
47202091000
Throttle Cable
2013 |
47202091000 |
— | ||
|
|
72002030100 Master Cylinder Cpl. 10Mm2013 |
72002030100 |
US $382.36 |
||
|
|
72002003000 Cover F. Master Cylinder Cpl2013 |
72002003000 |
US $28.42 |
||
|
|
72002032000 Rep. Kit Piston 10Mm2013 |
72002032000 |
US $48.13 |
||
|
|
72013002000 Lever Cpl2013 |
72013002000 |
US $43.98 |
||
|
|
70002038000 Lever Screw Cpl2013 |
70002038000 |
US $26.47 |
||
|
|
72002037000 Mudcover Clutch Lever2013 |
72002037000 |
US $13.77 |
||
|
|
72013005000 Clamp2013 |
72013005000 |
US $32.61 |
||
|
|
72032063000
Clutch Pipe
2013 |
72032063000 |
— | ||
|
|
0770080019 O-ring 8,00x1,00 formula2013 |
0770080019 |
US $2.64 |
||
|
|
47013025000 Hollow screw brake cylinder 032013 |
47013025000 |
US $12.46 |
||
|
|
72002035000 Spring For Clutch Lever2013 |
72002035000 |
US $1.79 |
||
