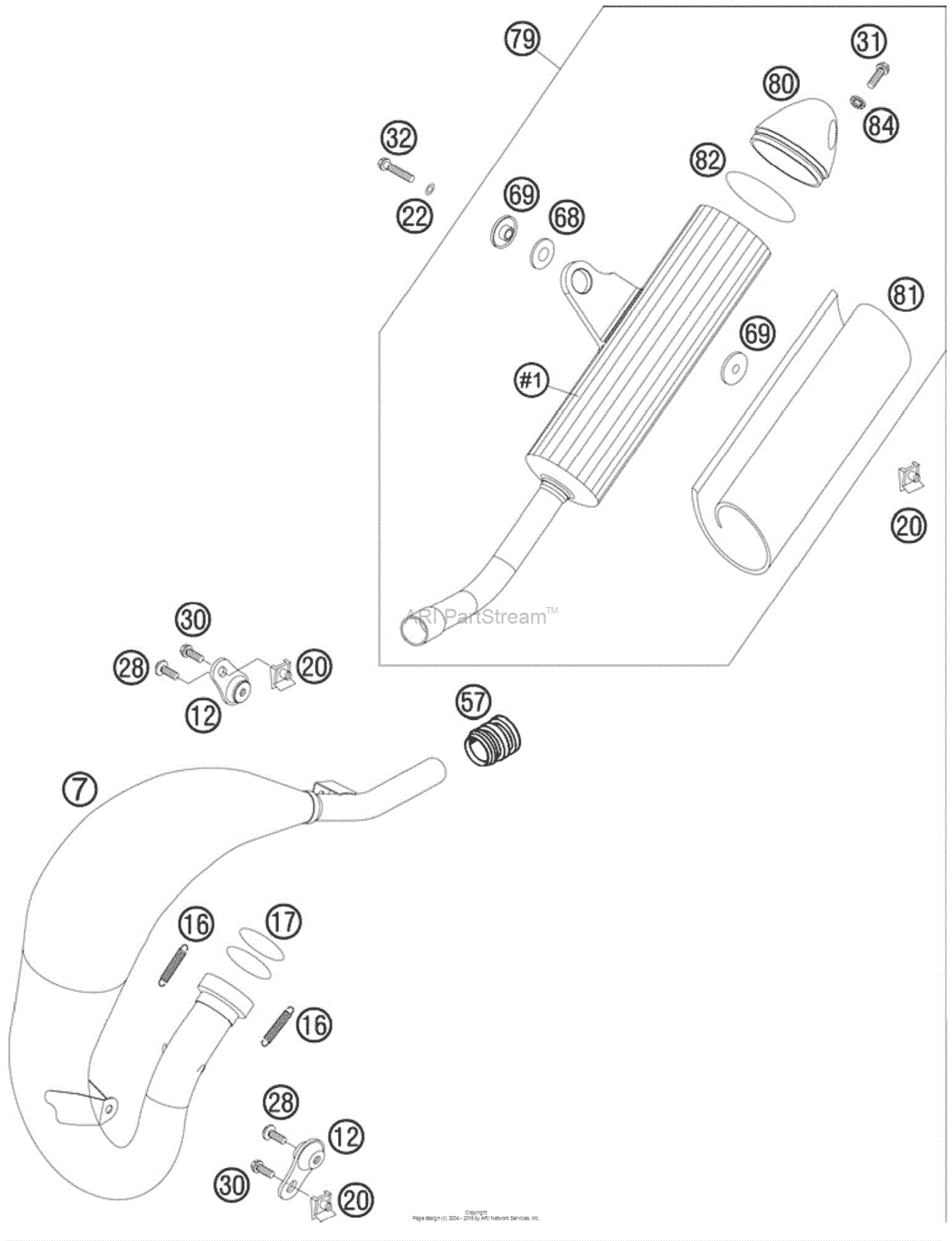

Exhaust System Diagram KTM 85 85 SX
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
47005007100 Exhaust pipe 85 sx 0707 |
47005007100 |
US $298.40 |
||
|
12
|
12
50305012000 Swingelement For Exhaust Pipe07 |
50305012000 |
US $25.65 |
||
|
16
|
16
50305016000
Ten.spring L=62Mm Ey.moveable
07 |
50305016000 |
— | ||
| replacement | |||||
|
16
|
16
A46005016000 TEN.SPRING L=62MM EY.MOVEABLE07 |
A46005016000 |
US $5.88 |
||
|
17
|
17
0770380030 O-ring 38,00x3,00 viton07 |
0770380030 |
US $3.52 |
||
|
20
|
20
54603048100 Range Change Metal Nut M607 |
54603048100 |
US $5.27 |
||
|
22
|
22
0137060003 Spring Washer Din0137-B 607 |
0137060003 |
US $0.43 |
||
|
28
|
28
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
30
|
30
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
31
|
31
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
32
|
32
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
57
|
57
54605057000 Rubber sleeve d=21mm/23mm '93'93 |
54605057000 |
US $23.49 |
||
|
68
|
68
54605068000
Exhaust bracket rubber black
'93 |
54605068000 |
— | ||
| replacement | |||||
|
68
|
68
77205068000 Damp. Compon. Black'93 |
77205068000 |
US $8.43 |
||
|
69
|
69
54605069000
Bushing 7,5x12x28x7,8 '96
'96 |
54605069000 |
— | ||
| replacement | |||||
|
69
|
69
77205169000 Bushing 7.5X12X28X8.3 11'96 |
77205169000 |
US $7.82 |
||
|
79
|
79
47005079100 Silencer 85 sx 0606 |
47005079100 |
US $342.64 |
||
|
80
|
80
50305079169 Silencer endcap sx rear06 |
50305079169 |
US $38.20 |
||
|
81
|
81
50305079160 Stuffing yarn 160 gram06 |
50305079160 |
US $70.19 |
||
|
82
|
82
0770055020 0-ring 55,00x2,00 nbr7006 |
0770055020 |
US $1.45 |
||
|
84
|
84
50233041000 Pair of washers m 6 nordlock06 |
50233041000 |
US $3.25 |
||
