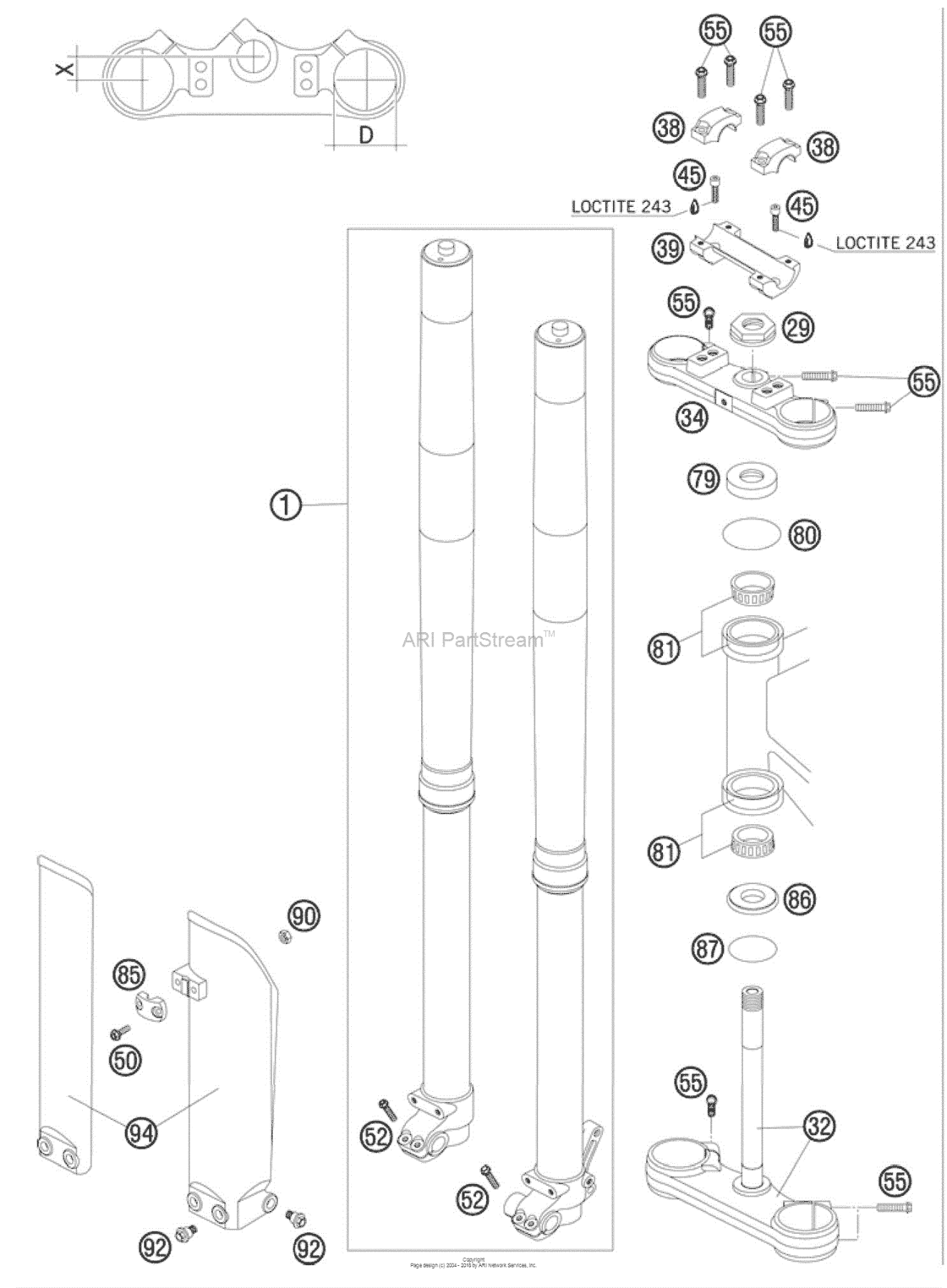

Front Fork Diagram KTM 85 85 SX
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
05187K0501 Fork Ktm 85/105 Sx 20112011 |
05187K0501 |
US $1,930.76 |
||
|
29
|
29
59030029000 Hh nut m20x1,5 ws=27 right2011 |
59030029000 |
US $7.62 |
||
|
32
|
32
47001032014
Bot.triple clamp cpl. 85 sx 03
03 |
47001032014 |
— | ||
|
34
|
34
47001034014
Top triple clamp 85 sx 2003
2003 |
47001034014 |
— | ||
|
38
|
38
50301038000 Handlebar clamp d=22mm 20012001 |
50301038000 |
US $21.54 |
||
|
39
|
39
59001039000 Handlebar support 22mm 2t 20002000 |
59001039000 |
US $65.47 |
||
|
45
|
45
0032100256S Ah-collar screw m10x25 isa452000 |
0032100256S |
US $5.12 |
||
|
50
|
50
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
52
|
52
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
55
|
55
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
79
|
79
49001086000 Covering capTX40 |
49001086000 |
US $6.10 |
||
|
80
|
80
0770021300 O-ring 40,94x2,62 nbr70TX40 |
0770021300 |
US $2.31 |
||
|
81
|
81
49001081000 Tapered roller bearing 32004xTX40 |
49001081000 |
US $38.74 |
||
|
85
|
85
5460108500028 Brake hose clipTX40 |
5460108500028 |
US $2.87 |
||
|
86
|
86
46001086000 Protection ring 20,1x39x5TX40 |
46001086000 |
US $8.52 |
||
|
87
|
87
0770360030 O-ring 36,00x3,00 nbrTX40 |
0770360030 |
US $1.60 |
||
|
90
|
90
0985050003 Self Locking Nut Din0985-M 5TX40 |
0985050003 |
US $3.26 |
||
|
92
|
92
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
|
94
|
94
4700109400028 Fork Protector Set 85Sx WhiteWS=8 |
4700109400028 |
US $26.55 |
||
| replacement | |||||
|
94
|
94
4710109400028 Fork Protector Set 85Sx WhiteWS=8 |
4710109400028 |
US $25.60 |
||
