	Description	OEM Part #	Price
1	1 4710900124430 Front Wheel Cpl. 17 Black 17 As Required	4710900124430	US $758.69
	replacement
1	1 4710900144430 Front Wheel Cpl. 17 Black 17 As Required	4710900144430	US $751.83
10	10 70009010044 Front Wheel Hub Cpl. 12 As Required	70009010044	US $307.36
11	11 70009011000 Bear.spacer Tube Front D22Mm As Required	70009011000	US $16.49
12	12 70009012000 Spacer Bushing D=22Mm As Required	70009012000	US $34.19
13	13 0760324271 Shaft seal ring 32x42x7 bsl As Required	0760324271	US $21.64
14	14 0625069050 Ball bearing 6905 j1lluc3 As Required	0625069050	US $47.06
55	55 59009062013 Special Screw M6X13 Ws=8 10.9 As Required	59009062013	US $2.24
60	60 47109060000 Brake Disk Front As Required	47109060000	US $130.85
70	70 2350907000030 Rim Front Al4 17X1,40-32 As Required	2350907000030	US $209.80
72	72 4710907118330 Spoke M4,5X183-17 Black As Required	4710907118330	US $3.86
73	73 77109072000 Spoke Nipple M4,5 Al 11 As Required	77109072000	US $2.23
74	74 47009073000 Rim band 85 sx 17" 2003 2003	47009073000	US $6.31
81	81 70009081000 Axle Front D=22 '12 2003	70009081000	US $66.73
83	83 70009082000 Axlescrew M20X1.5 2003	70009082000	US $10.85
86	86 70009081050 Plug Bushing Sw17 '12 2003	70009081050	US $8.43
89	89 55003135000 Plug For Rim As Required	55003135000	US $1.02
90	90 77110090050 Nut For Wheel Holder As Required	77110090050	US $3.60
91	91 45110090000 Rim lock cpl. 2004 2004, As Required	45110090000	US $31.43
97	97 00050000965 Spoke Kit Front ''17'' 85 Sx 13 As Required	00050000965	US $190.55
98	98 70009015000 Front Wheel Rep. Kit As Required	70009015000	US $174.13

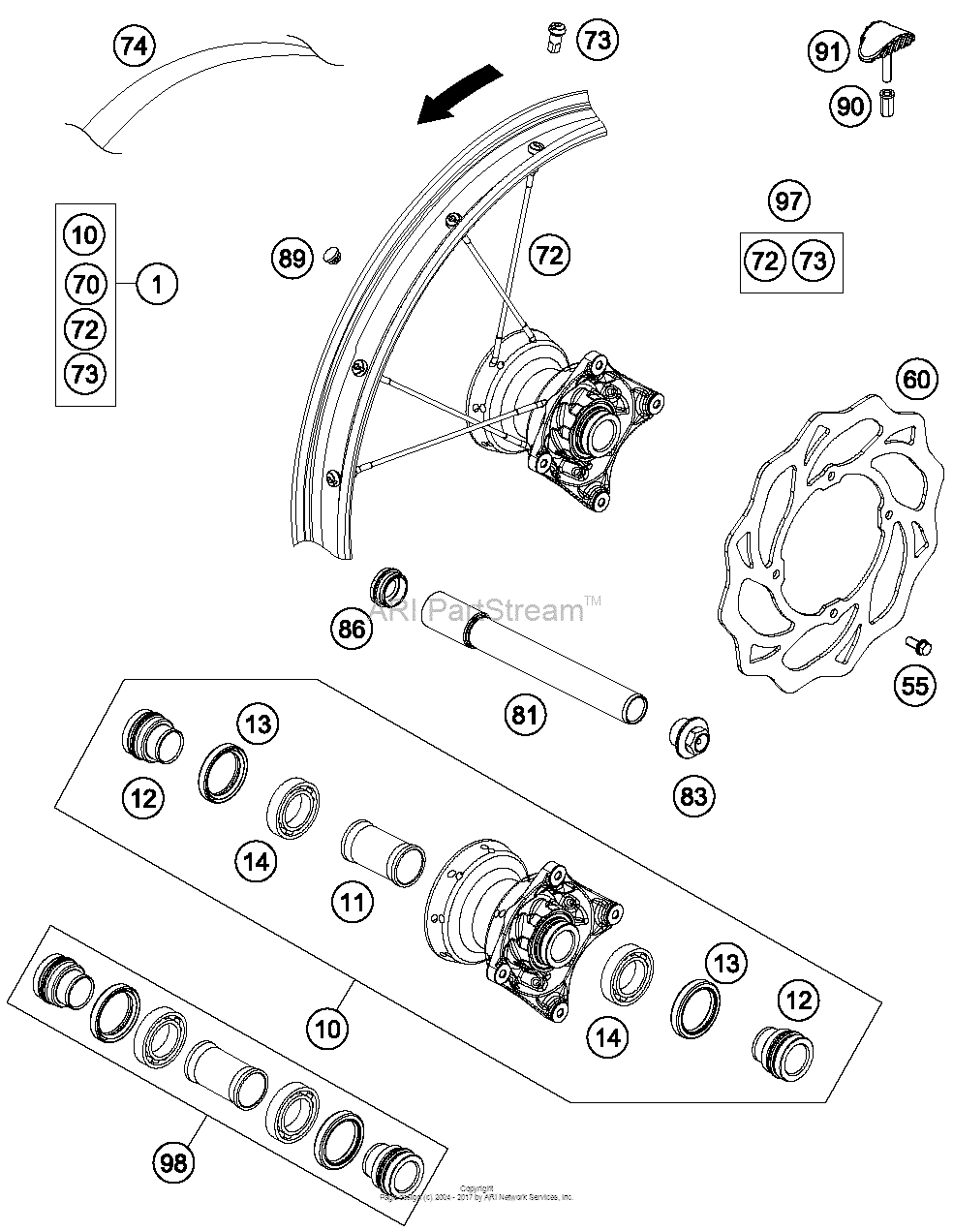

Front Wheel Diagram KTM 85 85 SX US/EU 18108189-940777

Front Wheel Diagram KTM 85 85 SX US/EU 18108189-940777
