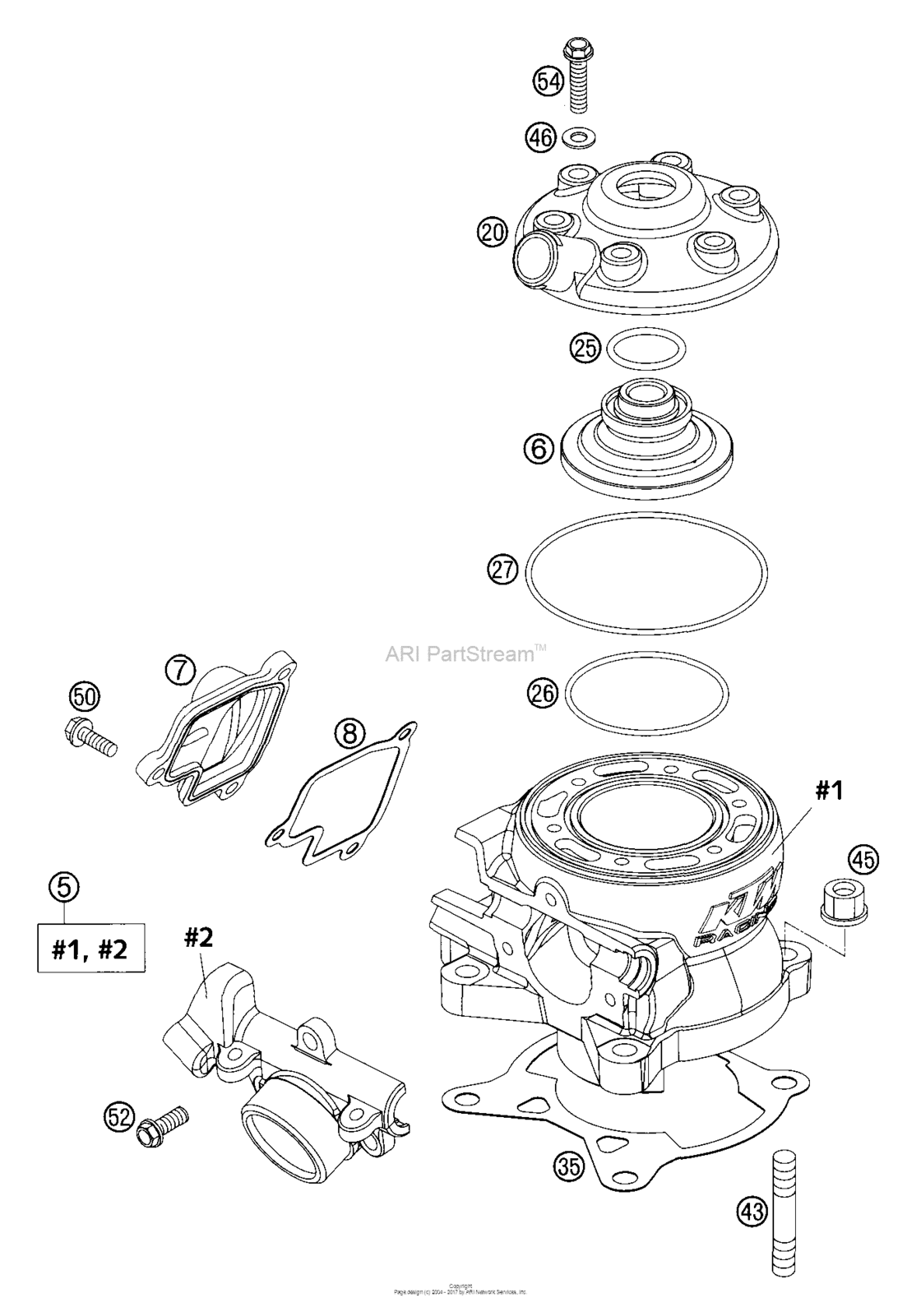

Cylinder Diagram KTM 85 85 SX
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 85
- Model
- 85 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
47030005044
Zylinder, Piston, Flange
As Required |
47030005044 |
— | ||
| replacement | |||||
|
5
|
5
47030038000 Сylinder, piston, flangeAs Required |
47030038000 |
US $939.66 |
||
|
6
|
6
47030106000
Cylinder head insert 85 sx 03
As Required |
47030106000 |
— | ||
|
7
|
7
47037007000 Control cover 85 sx 2003As Required |
47037007000 |
US $39.36 |
||
|
8
|
8
47037008000 Gasket for control cover 2003As Required |
47037008000 |
US $2.94 |
||
|
20
|
20
47030006000
Cylinder head 85 sx 2003
As Required |
47030006000 |
— | ||
|
25
|
25
0770220025 O-ring 22,00x2,5 viton 75shAs Required |
0770220025 |
US $4.05 |
||
|
26
|
26
0770540020 O-ring 54x2 vitonAs Required |
0770540020 |
US $11.29 |
||
|
27
|
27
0770820020 O-ring 82x2 siliconeAs Required |
0770820020 |
US $10 |
||
|
35
|
35
47030035020 Cylinder base gasket 0,20mmAs Required |
47030035020 |
US $6.55 |
||
|
35
|
35
47030035030 Cylinder base gasket 0,30mmAs Required |
47030035030 |
US $8.19 |
||
|
35
|
35
47030035000 Cylinder base gasket 0,50mmAs Required |
47030035000 |
US $8.89 |
||
|
43
|
43
0835080240 Stud din 0835-m 8x24As Required |
0835080240 |
US $2.53 |
||
|
45
|
45
46030045000 Collar nut m8 ws=10As Required |
46030045000 |
US $6.94 |
||
|
46
|
46
0603061001 Cu-Seal Ring Din7603-6X10X1As Required |
0603061001 |
US $2.64 |
||
|
50
|
50
0015050123
Hh collar screw m 5x12 ws=8
As Required |
0015050123 |
— | ||
| replacement | |||||
|
50
|
50
0025050126 Hh collar screw m5x12 tx30As Required |
0025050126 |
US $3.38 |
||
|
52
|
52
0015060163 Hh Collar Screw M 6X16 Ws=8As Required |
0015060163 |
US $2.23 |
||
|
54
|
54
0015060253
Hh Collar Screw M6X25 Tx30
As Required |
0015060253 |
— | ||
| replacement | |||||
|
54
|
54
0025060256 Hh collar screw m6x25 tx30As Required |
0025060256 |
US $2.45 |
||
